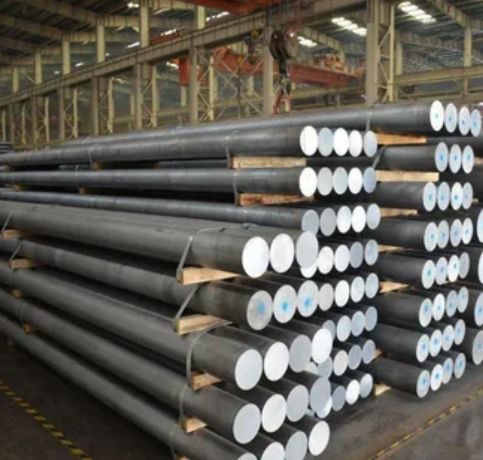

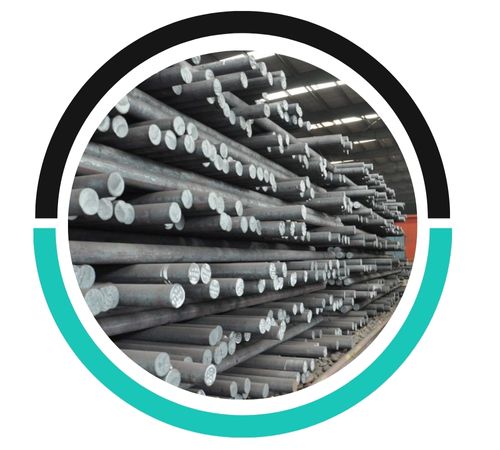

Dhruv Metals, a well-respected manufacturer and supplier based in Hyderabad, India, specializes in high-quality Alloy 20 Round Bars that are renowned for their outstanding corrosion resistance and mechanical strength. These bars are specifically engineered to thrive in highly corrosive environments, making them a go-to choice for industries that need to withstand sulfuric acid and other harsh chemicals. At Dhruv Metals, every Alloy 20 Round Bar is crafted to meet rigorous quality standards, ensuring precision and reliability for even the most demanding applications. With a strong commitment to customer satisfaction, the company offers tailored solutions and prompt delivery to clients in the chemical, pharmaceutical, food processing, and marine sectors, both in India and around the globe.
Alloy 20 Round Bars are made up of roughly 35% nickel, 20–24% chromium, 3–4% copper, and 2–3% molybdenum, with iron serving as the base element. They also include trace amounts of niobium to help stabilize the alloy and minimize carbide precipitation. These bars are particularly resistant to acid attacks, especially from sulfuric acid. Alloy 20 boasts a tensile strength of about 551 MPa, a yield strength of 241 MPa, and an elongation of roughly 30–35%. Additionally, the alloy is known for its excellent fabricability, strong resistance to pitting and crevice corrosion, and remarkable mechanical performance in tough industrial settings.
Alloy 20 Round Bar Specification : ASTM B473 , ASME SB473
Dimension Standard : EN, DIN, JIS, ASTM, BS, ASME, AISI
Size : 14mm-300mm
Thickness : 50 mm to 6000 mm Long
Length : 1 To 6 Meters, Custom Cut Length

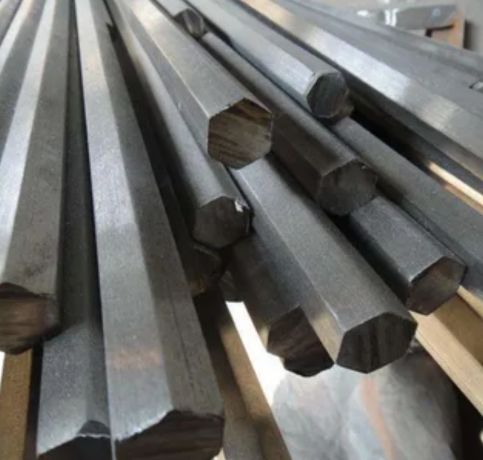

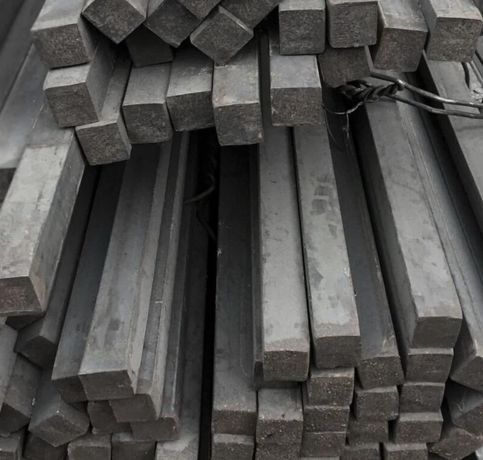

Form : Round, Square, Hex(A/F), Rectangle, Billet, Ingot, Forging Etc.
| Grade | C | Mn | Si | S | Cu | Ni | Cr | Fe | Mo | P |
|---|---|---|---|---|---|---|---|---|---|---|
| Alloy 20 | 0.07 max | 2.00 max | 1.00 max | 0.035 max | 3.00 – 4.00 | 32.00 – 38.00 | 19.00 – 21.00 | 29.85 min* | 2.00 – 3.00 | 0.045 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|---|
| Alloy 20 | 8.1 g/cm3 | 1443 °C (2430 °F) | Psi -80,000, MPa -551 | Psi – 35,000, MPa – 241 | 30 % |
| STANDARD | UNS | WNR. | EN | AFNOR |
|---|---|---|---|---|
| Alloy 20 | N08020 | 2.4660 | NiCr20CuMo | Z2NCUD31-20AZ |
Type | SIZES (mm) | ISO Tolerance | SIZES (Inches) |
|---|---|---|---|
Peeled and Polished | 40.00 to 150.00 | h11-DIN 1013 | 1.50″ to 6.00″ |
Cold Drawn and Ground | 10.00 to 75.00 | h9-h8-h11-h10 | 5/6″ to 2.50″ |

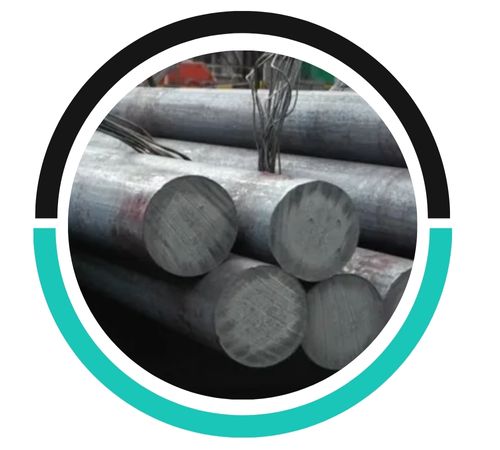

Cold Drawn and Polish | 3.00 to 75.00 | h9-h8-h11-h10 | 1/8″ to 3.00″ |
Peeled and Ground | 20.00 to 50.00 | h10-h9-h11 | 3/4″ to 2.00″ |
Cut to size on request (tolerance +2/-0 mm). Standard lengths of Alloy 20 Bars 2000 mm up to 6000 mm available
50.0 | 6.0 |
65.0 | 9.0 |
55.0 | 7.0 |
45.0 | 5.0 |
70.0 | 10.0 |
60.0 | 8.0 |
75.0 | 12.0 |
90.0 | 20.0 |
80.0 | 16.0 |
130.0 | 30.0 |
100.0 | 25.0 |
160.0 | 35.0 |
120.0 | 40.0 |
Choose the right Alloy 20 Round Bar based on factors like corrosion resistance, strength requirements, and compatibility with your specific application environment.
The pressure rating of Alloy 20 Round Bar depends on factors such as size, temperature, and specific application conditions, typically determined through engineering calculations.
Yes, Alloy 20 Round Bar can be welded, offering excellent weldability with proper techniques.
Alloy 20 round bars are widely used in those industries where exceptional corrosion resistance with high strength is desired. They find their common usage in the chemical processing sector, especially where it has sulfuric acid as its environment of work, in pharmaceutical manufacturing, food processing industries and also in marine. These bars are for the equipment which comes in reactors, heat exchangers, pumps, and valves, subjected to extreme chemicals and corrosive condition. Alloy 20 is also used in the production of piping systems, storage tanks and pressure vessels where durability and resistance to pitting and stress corrosion are critical.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
