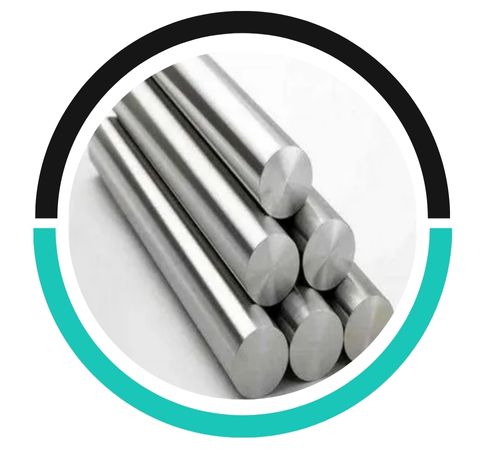

Hyderabad (India)-based Dhruv Metals is a renowned manufacturer and supplier of Aluminium 1050 Bar and Rods. This extremely pure (≥99.5%) aluminium is acclaimed for superior corrosion resistance, exceptional electrical and thermal conductivity, and outstanding formability. Elected extensively in electrical and architecture applications, our 1050 bars are produced according to ASTM B211/B221 standards to assure consistent surface quality and dimensional tolerances. Offered in various diameters and lengths, these rods are ideal for custom machining, anodizing, and fabrication. With reliable delivery and quality control, Dhruv Metals caters to diverse industrial needs requiring pure aluminium performance.
Aluminium 1050 consists of at least 99.5% Al, with trace amounts of Fe, Si, Cu, Mn, Mg, Cr, Zn, and Ti. It has tensile strength in the range of 70–95 MPa, yield strength of about 35–55 MPa, and ductility of up to 35% elongation. The alloy has superior electrical conductivity (~59% IACS) as well as thermal conductivity (~230 W/m·K). Its corrosion resistance in wet and atmospheric environments is excellent, though the strength is low relative to alloyed grades. It is readily cold-worked and anodized and is suitable where purity and malleability are paramount over mechanical strength.
| Bar Wire Standard | ASTM B221, B211, B565, B316, AMS 4121 2014 |
| Bar Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |

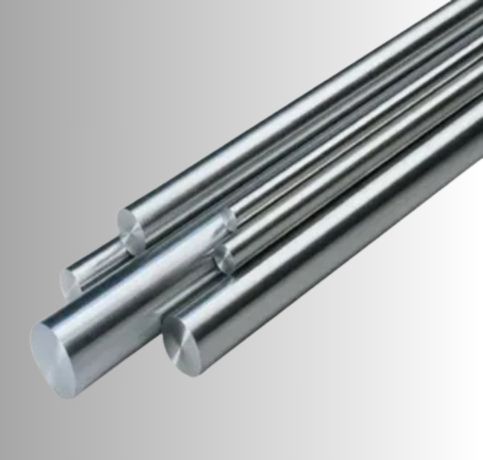

| Round bar size | Diameter: 3-~800mm |

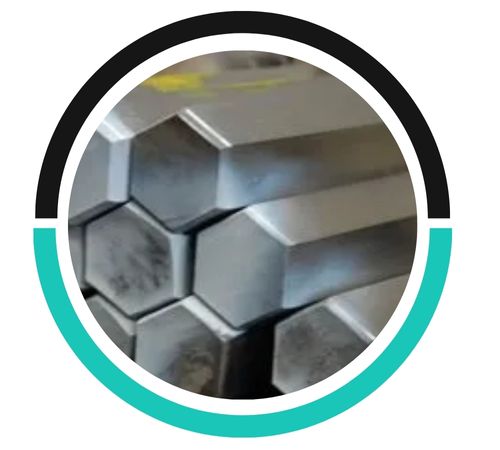

| Hex Bar size | 2-100mm A/F |

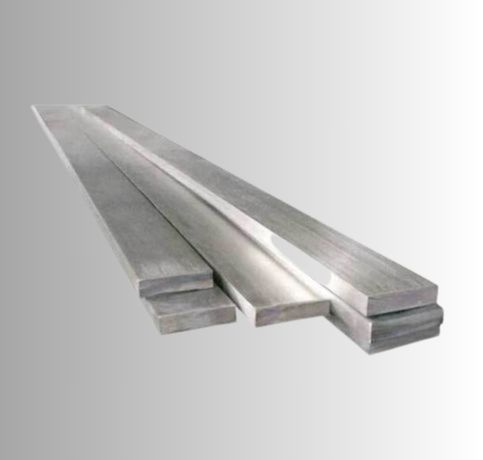

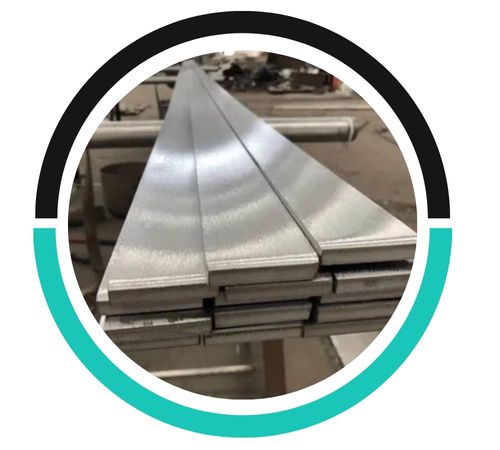

| Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |

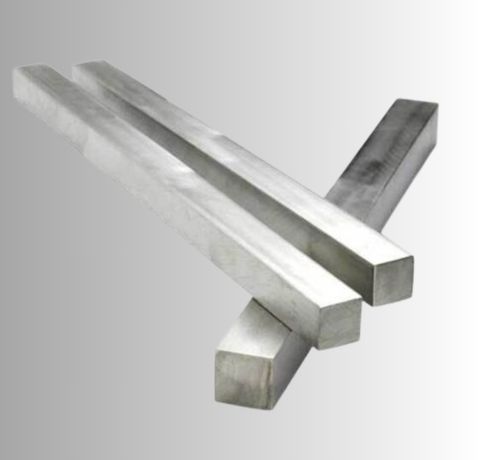

| Square bar size | 4 to 100mm |
| Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Rectangular Size | 33 x 30mm to 295 x 1066mm |
| Bars Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Bar Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Tempers | Tempers range from dead soft annealed to ultra spring temper |
| Rolled Flat Bars Condition | Hardened & tempered, annealed |
| Cold Rolled Bar Technique | Stainless Steel Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |

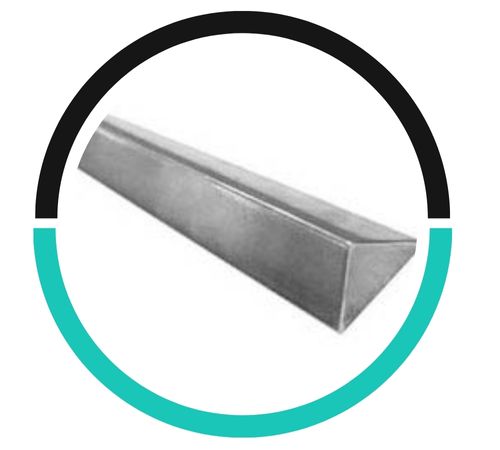

| Rounds Bar Form | Round, Rod, T-Bar, Channel Bar, Precision Ground Bar, Flat Bar, Square, Blocks, Round Rod, Rings, Hollow, Triangle, Rectangle, Hex (A/F), Threaded, Half Round Bar, Profiles, Billet, Ingot, I/H Bar, Forging etc. |
| Grade | C | Mn | Si | Cu | Fe | Zn |
| 1050 | 0.05 max | 0.1 max | 0.30 max | 0-0.05 | 0-0.4 | 0-0.07 |
| UTS (Mpa) | Yield Strength (Mpa) | Elongation |
| 95 | 20 Min | 23 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS |
| EN AW-1050 A | 3.0255 | A91050 | S1B |
Yes, Aluminium 1050 bars are corrosion-resistant due to their high aluminum content (99.5%). They offer excellent resistance to corrosion in atmospheric conditions and chemical environments, making them suitable for various applications.
Yes, Aluminium 1050 rods can be customized in size and length based on specific requirements. Manufacturers often offer tailored dimensions to meet diverse industrial and commercial needs.
To maintain a Stainless Aluminum 1050 bar, clean it regularly with a soft cloth and mild detergent, avoid abrasive cleaners, store in a dry environment, and inspect for corrosion or damage.
Aluminium 1050 bars and rods find wide application as electrical conductors, busbars, transformer windings, and switchgear parts owing to their conductivity. They are used to make foils, ornamentation, and trays in the food and packaging sectors. Their resistance to corrosion makes them appropriate for architectural profiles, deco trims, and signboards. They also find application in chemical processing plant equipment when purity is essential. For prototype machining, welding fixtures, and formwork, 1050 finds application in general engineering. Its superior anodizing qualities provide suitability for use in lighting reflectors, electronic enclosures, and decorative items where surface finish and corrosion-free performance are needed.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Dhruv Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Hyderabad , India
