In Hyderabad, India, Dhruv Metals is a top producer and supplier of aluminium 5082 bars and rods, providing premium aluminium goods for a variety of engineering and structural uses. The marine, automotive, and structural industries make extensive use of aluminium 5082 because of its exceptional corrosion resistance, weldability, and moderate-to-high strength. At Dhruv Metals, we use sophisticated processing and meticulous quality checks to guarantee that every product satisfies international quality standards. We export to international markets with total dependability and serve a growing clientele throughout India with a dedication to prompt delivery, affordable prices, and customer satisfaction.
The main constituents of aluminium 5082, an alloy of aluminium, magnesium, and manganese, are aluminium (~95.2%), magnesium (4.0–4.9%), and trace amounts of manganese and chromium. In addition to having good weldability and formability, it offers exceptional corrosion resistance, particularly in maritime environments. With a yield strength of 125–200 MPa and a tensile strength range of 275–350 MPa, the alloy has moderate-to-high strength. It can be hardened by cold working, but it is not heat treatable and offers good fatigue resistance. Because of these qualities, it can be used in a variety of industries for both structural and corrosion-resistant applications.
| Aluminium Alloy | ASTM B211, B211, B565, B316 5082, AMS 4121 |
| Standard | ASTM, ASME, AMS, GB/T, JIS |
| Aluminium Round Bar Temper | O, H12, H14, H16, H18, H22, H24, H26, H32, H112 |

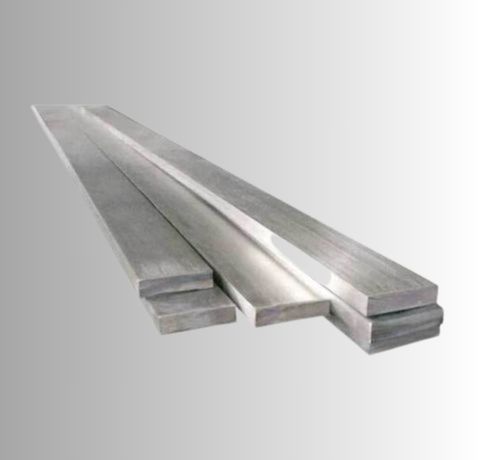

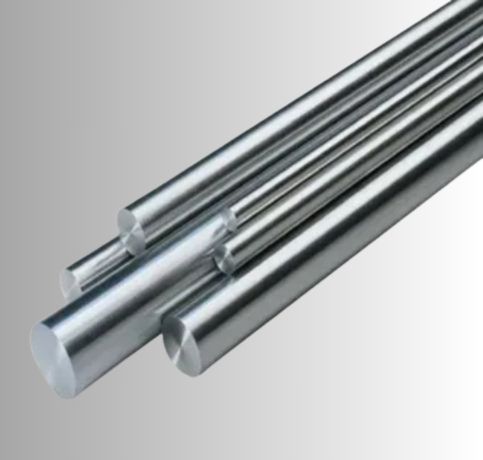

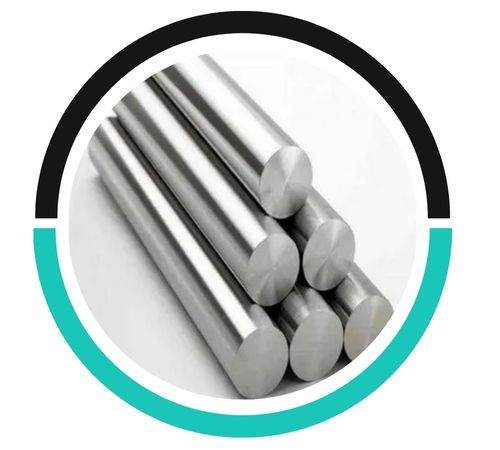

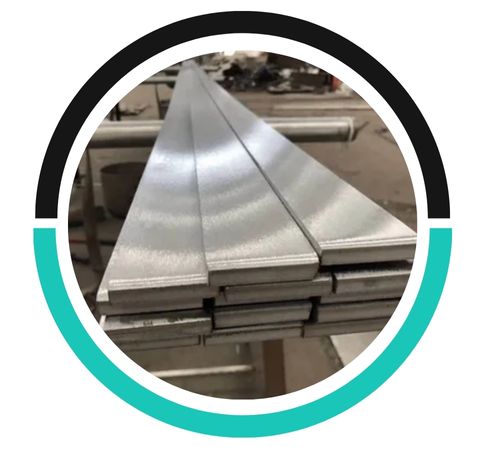

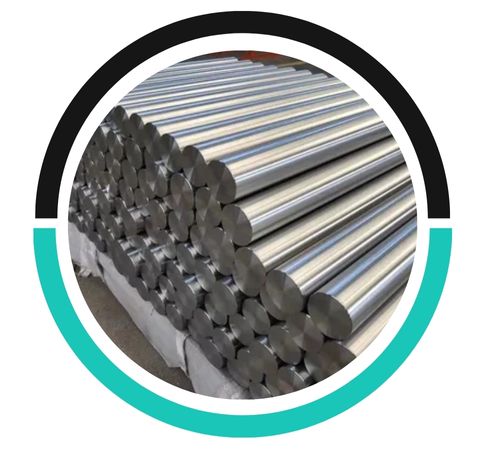

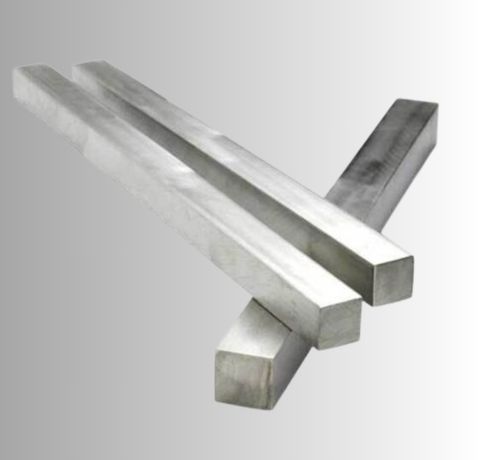

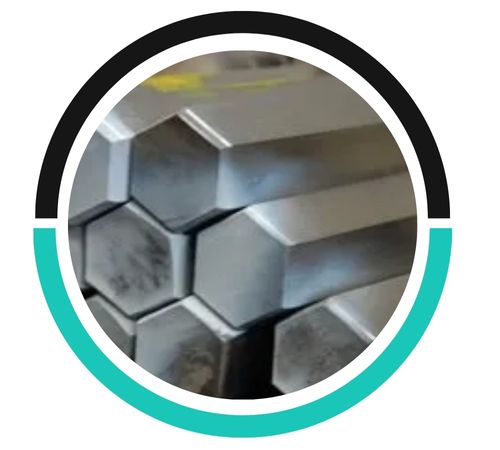

| Aluminium Bar Form | Aluminium Round, Hex, Flat, Half Round, Oval, Rectangular in Black & Bright Finish |
| Aluminium Round Bar Diameter | 0.1-600mm,etc |
| Aluminium Hexagonal Bar | 0.1-600mm,etc |
| Aluminium Angle Bar Size | 0.5mm*40mm*40mm-20mm*400mm*400mm |
| Aluminium Flat Bar Thickness | 0.1-600mm,etc |
| Aluminium Flat Bar Size | 1-2500mm, etc |
| Aluminium Round Bar Length | 1-12m, Random, Fix & Cut Length or as per clients’ requirement |
| Aluminium Bar | Bright, Polish & Black |
| GRADE | Al | Cr | Cu | Fe | Mg | Mn | Si | Ti | Zn | Residuals |
| 5082 | 95.2 to 98.3% | 0.25% max | 0.1% max | 0.5% max | 0.6 to 1.2% | 0.4% to 1.0% | 0.7 to 1.3% | 0.1% max | 0.2% max | 0.15% max |
| Density | Melting Point | Modulus of Elasticity | Electrical Resistivity | Thermal Conductivity | Thermal Expansion | Specific Heat |
| Value | 2700 kg/m3 | 555°C | 70 GPa | 0.038×10-6 Ω.m | 180 W/m.K | 24×10-6 /K |
| European Standard | OLD | WNr | UNS | ISO | USA (AA) | GERMANY (DIN) |
| AW-AlMg4,5 | AG4,5 | 3.3345 | A95082 | AlMg4,5 | 5082 | AlMg4,5 |
| Size in mm | Average Weight | |
| KG/MTR | KG/FT | |
| 10 | 0.62 | 0.18 |
| 12 | 0.90 | 0.30 |
| 14 | 1.20 | 0.40 |
| 16 | 1.60 | 0.50 |
| 18 | 2.00 | 0.60 |
| 20 | 2.50 | 0.80 |
| 22 | 3.00 | 0.90 |
| 24 | 3.56 | 1.08 |
| 25 | 3.90 | 1.20 |
| 28 | 4.80 | 1.50 |
| 30 | 5.55 | 1.69 |
| 32 | 6.30 | 1.90 |
| 34 | 7.14 | 2.18 |
| 36 | 8.00 | 2.44 |
| 40 | 9.90 | 3.00 |
| 45 | 12.49 | 3.81 |
| 50 | 15.40 | 4.70 |
| 56 | 19.34 | 5.89 |
| 60 | 22.20 | 6.80 |
| 63 | 24.47 | 7.46 |
| 63.5 | 24.86 | 7.58 |
| 65 | 26.05 | 7.94 |
| 70 | 30.20 | 9.20 |
| 73 | 32.86 | 10.00 |
| 75 | 34.72 | 10.58 |
| 78 | 37.51 | 11.43 |
| 80 | 39.50 | 12.00 |
| 83 | 42.47 | 12.95 |
| 85 | 44.55 | 13.58 |
| 90 | 50.00 | 15.20 |
| 92 | 52.19 | 15.91 |
| 93 | 53.39 | 16.27 |
| 95 | 55.65 | 16.95 |
| 100 | 61.66 | 18.79 |
| 105 | 67.98 | 20.72 |
| 110 | 74.60 | 22.74 |
| 115 | 81.64 | 24.88 |
| 125 | 96.34 | 29.36 |
Maintain Aluminum 5082 bars by regularly cleaning with mild soap and water to prevent dirt buildup. Avoid harsh chemicals, use non-abrasive tools, and protect against corrosion by storing in dry conditions.
Yes, Aluminium 5082 bars are recyclable. Like most aluminum alloys, they can be melted down and reused without significant loss of properties, making them an environmentally sustainable material.
Yes, Aluminium 5082 rods can be customized in size and length. Manufacturers often offer custom dimensions to meet specific requirements for industrial, construction, or engineering applications.
Aluminium 5082 bars and rods are widely applied in marine and industrial applications due to excellent corrosion resistance in seawater. These are majorly used in shipbuilding, offshore structures, and marine equipment like hulls, decks, and tanks. In addition to such applications, the 5082 alloys are utilized for making pressure vessels, storage tanks, and heat exchangers where resistance to corrosion and high strength is fundamental. The above also are applied to automobile, aeronautics, and building sectors with bars and rods due to strength performance, hardness in very rough condition exposures or with requirement for material.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
