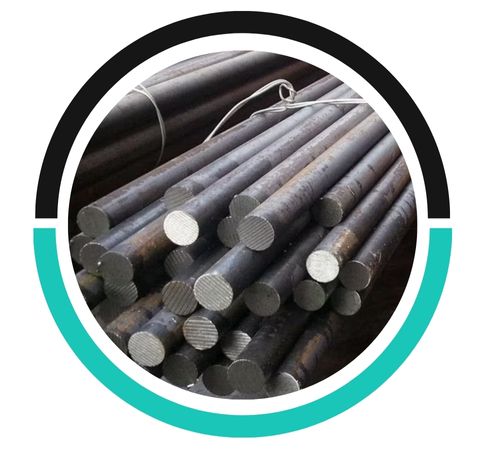

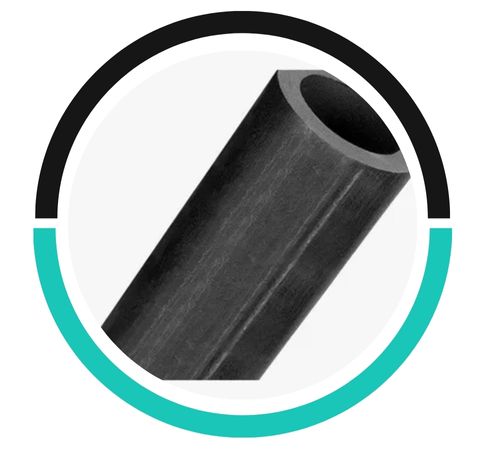

Carbon Steel E-200 Bars from Dhruv Metals are designed for general engineering applications that require low carbon content, great ductility, and good weldability. These bars are commonly used in industries where lightweight structures and easy fabrication are essential. Made using controlled processes, the E-200 grade is known for its consistent surface finish and formability. Available in hot-rolled or cold-drawn formats, the bars come in various sizes and profiles to satisfy structural and mechanical needs in construction and fabrication.
The typical chemical makeup of E-200 steel includes about 0.08–0.12% carbon and 0.30–0.60% manganese, along with low levels of sulfur and phosphorus. It has a tensile strength of roughly 350 MPa and a yield strength of about 200 MPa, with elongation reaching up to 25%. The low carbon content ensures easy welding and excellent cold-forming capabilities, making it ideal for components that require forming and joining without post-weld treatment.
| Specifications | : | ASTM A105, ASME SA105 |
| Dimensions | : | EN, DIN, JIS, ASTM, BS, ASME, AISI |

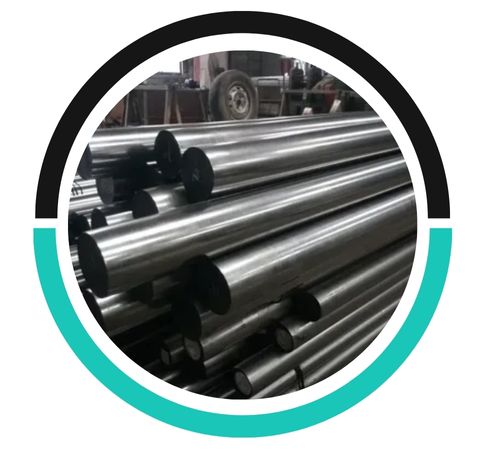

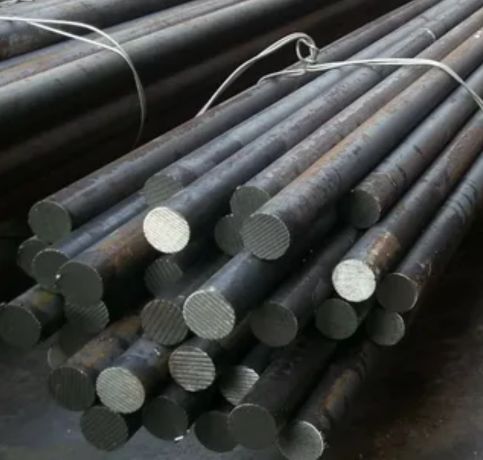

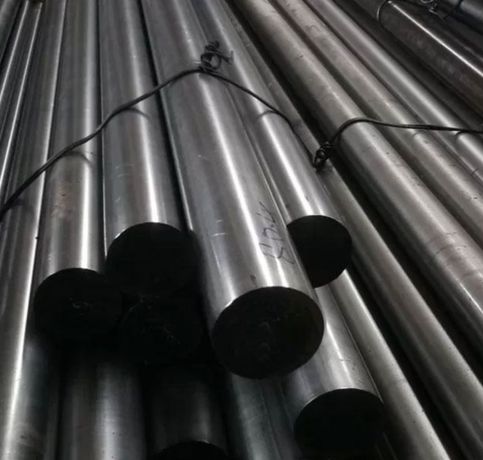

| Carbon Steel EN Series Round Bars | : | 3.0 – 50.8 mm, Over 50.8 – 300mm |
| Carbon Steel EN Series Rectangular Bars | : | 6.35 x 12.7mm,6.35 x 25.4mm,12.7 x 25.4mm |

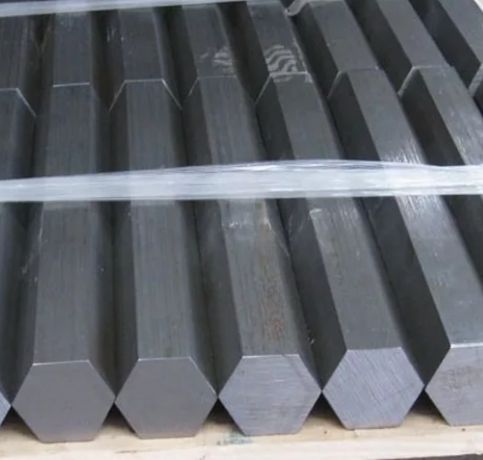

| Carbon Steel EN Series Hex Bars | : | AF5.8mm–17mm |

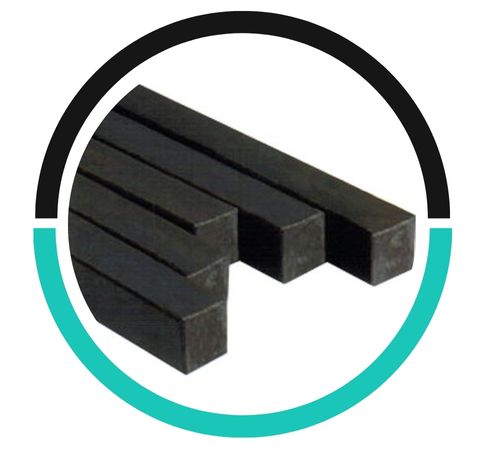

| Carbon Steel EN Series Square Bars | : | AF2mm – 14mm, AF6.35mm,9.5mm,12.7mm, 15.98mm,19.0mm, 25.4mm |
| Carbon Steel EN Series Flat Bars | : | 1/2” to 10” in thickness range of 2mm to 150mm, |

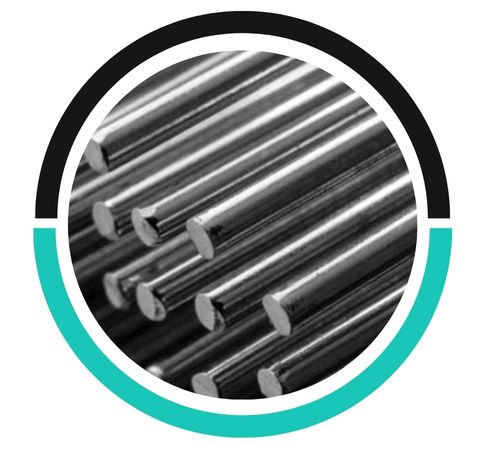

| Finish | : | Bright, Polish & Black |
| Length | : | 1 to 6 Meters, Custom Cut Lengths |

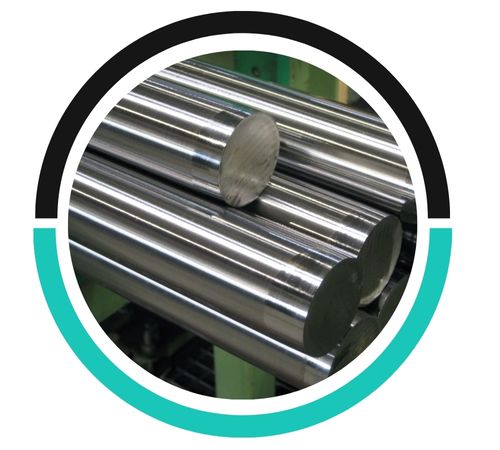

| Form | : | Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc. |
| Grade | ||||||
| C% | Si% | Mn% | Cr% | Mo% | W% | |
| EN-1A | 0.007 TO 0.15 | 0.10 | 0.80 TO 1.00 | S | P | – |
| 0.20 TO 0.30 | 0.70 MAX | |||||
| EN-8 | 0.35 TO 0.45 | 0.05 TO 0.30 | 0.60 TO 1.00 | S | P | – |
| 0.06 MAX | 0.06 MAX | |||||
| EN-9 | 0.50 TO 0.60 | 0.05 TO 0.30 | 0.5 TO 0.80 | – | – | – |
| EN-19(V 320) | 0.35 TO 0.45 | 0.10 TO 0.30 | 0.5 TO 0.80 | 0.90 TO 1.40 | 0.20 TO 0.40 | |
| EN-24(V 130) | 0.35 TO 0.45 | 0.10 TO 0.35 | 0.45 TO 0.70 | 0.90 TO 1.40 | 0.20 TO 0.35 | NI |
| 1.3 TO 1.8 | ||||||
| EN-31 R-100 | 0.90 TO 1.20 | 0.10 TO 0.35 | 0.30 TO 0.75 | 1.00 TO 1.60 | – | – |
| EN-36C E-200 | 0.12 TO 0.18 | 0.10 TO 0.35 | 0.30 TO 0.60 | 0.60 TO 1.10 | – | NI |
| 3.0 TO 3.75 | ||||||
| EN-42 | 0.70 TO 0.85 | 0.10 TO 0.40 | 0.55 TO 0.75 | – | – | – |
| EN-44 | 0.90 TO 1.20 | 0.30 | 0.45 TO 0.70 | – | – | – |
| EN-45 F-110 | 50 TO 0.60 | 1.5 TO 2.0 | 0.70 TO 1.00 | – | – | – |
| EN-351 | 0.10 TO 0.20 | 0.35 | 0.60 TO 1.00 | 0.40 to 0.80 | 0.08 to 0.10 | NI |
| 0.60 TO 1.00 | ||||||
| EN-353 | 0.10 TO 0.20 | 0.35 | 0.50 TO 1.00 | 0.75 TO 1.25 | 0.08 to o.15 | NI |
| 1.00 TO 1.50 |
| Grade | HEAT TREATMENT | CORRESPONDING SPECIFICATION | |||||
| Hardening Temperature | Quenching Medium | Tempering Temperature | Brinell Rock well hardness | JAPAN JIS | AISI | POLDI THREAD | |
| EN-1A | – | – | – | – | – | – | – |
| EN-8 | 750-900 | OIL | 150-200 | ||||
| EN-9 | 850-900 | OIL | 200-250 | 55-60 | |||
| EN-19 (V 320) | 900-950 | OIL | 200-225 | 45-55 | SCM 4 | 4140 | |
| EN-24 (V 130) | 830-860 | OIL | 540-680 | 45-55 | SNCM 8 | 4340 | |
| EN-31 R-100 | 820-860 | OIL | 180-225 | 59-65 | |||
| EN-36C E-200 | 780-860 | OIL | 170-210 | 61-63 | SNC 22 | 3415 | |
| EN-42 | 600-700 | DIRECT HARDENING | 40-45 | ||||
| EN-44 | 650-750 | OIL | 150 | 45-50 | |||
| EN-45 | 830-860 | OIL | 470-520 | 50-55 | 9255 | ||
| EN-351 | 850-860 | OIL | 175-200 | 62-64 | |||
| EN-353 | 840-870 | OIL | 150-200 | 62-64 | |||
Common finishes for Carbon Steel E-200 Bar include hot rolled, cold rolled, polished, pickled, galvanized, and painted, each providing varying levels of surface smoothness, corrosion resistance, and appearance.
Yes, Carbon Steel E-200 Bar is available in various lengths. Suppliers typically offer customizable options, ranging from standard sizes to specific lengths according to customer requirements.
Carbon Steel E-200 Bar is commonly used in structural applications, manufacturing of automotive parts, machinery, tools, and general fabrication due to its strength, durability, and resistance to wear and corrosion.
Carbon Steel E-200 Bars are primarily used in lightweight structures, frames, enclosures, and general fabrication work. They are suitable for furniture frames, brackets, supports, and automotive parts like panels and internal reinforcements. This grade is often chosen for applications that require easy bending, welding, and cost-effectiveness in material selection. These bars are also useful in tubular structures and fittings where smooth surface finish and good formability are vital.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
