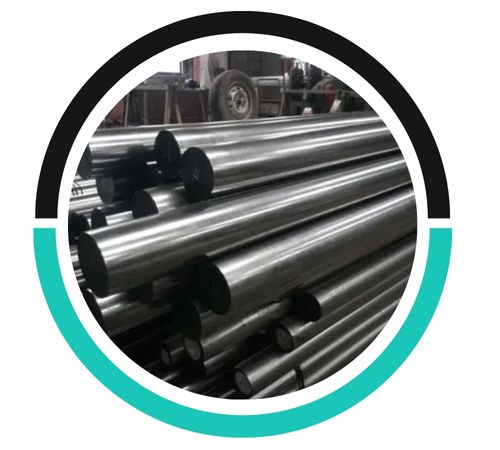

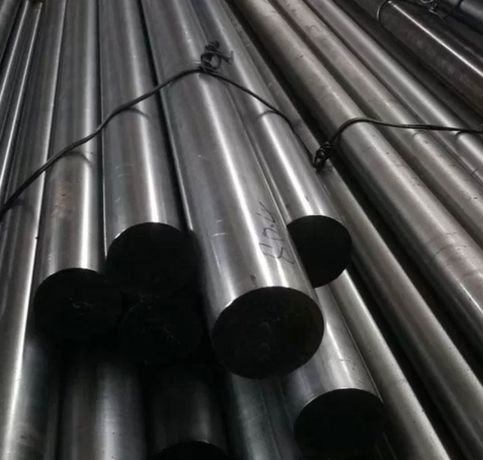

Dhruv Metals manufactures superior Carbon Steel Round Bars and Rods in Hyderabad, providing high-quality stock in grades 1018, 1045, and 4140. Manufactured to ASTM A29/A108 standards, these round shapes boast superior straightness, surface finish, and dimensional tolerances. Supplied in cold-drawn, hot-rolled, or normalized conditions, these rods are best suited for precise machining and shaping. Dhruv Metals supplies standard and bespoke diameters to various industrial sectors such as automotive, construction, and general engineering—offering consistent carbon steel stock for further processing.
1018 round bars have ~0.18% C (tensile ~440 MPa, yield ~275 MPa); 1045 ~0.45% C (~640 MPa tensile, ~410 MPa yield); 4140 containing ~1% Cr and 0.25% Mo alloying (~775 MPa tensile, ~620 MPa yield). Elongation varies 12–20%. Cold-drawn for surface finish, close tolerances, and strengthened fatigue. Machinable, weldable, heat-treatable to up to ~35 HRC (4140) rods. Formable and structural, supply stable mechanical performance across temperature ranges and loads.
| Grade | Carbon Steel |
|---|---|

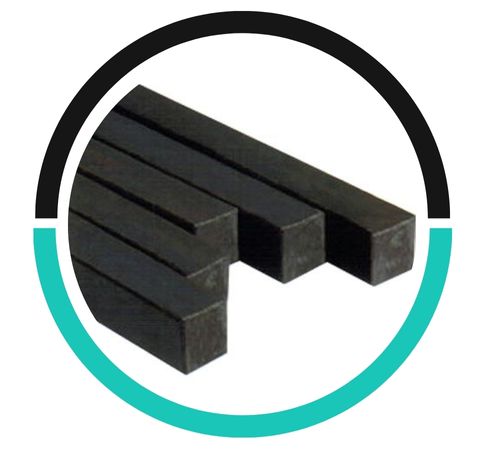

| Carbon Steel Square bar size | 4 to 100mm |

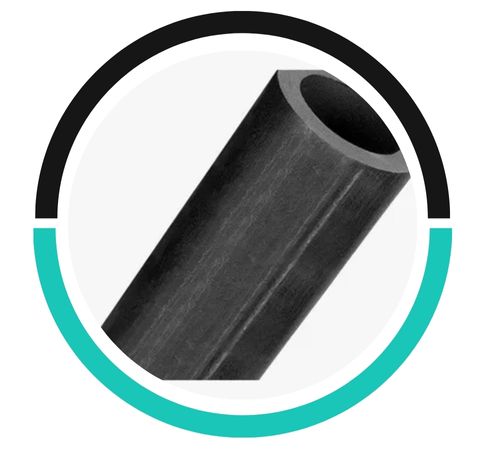

| CS Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |

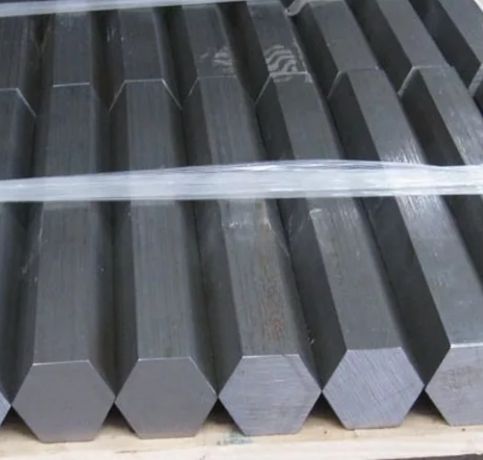

| Low Carbon Steel Hex Bar size | 2-100mm A/F |
| Carbon Steel Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| CS Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Low Carbon Steel Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Carbon Steel Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| CS Section | 3.0 to 12.0mm thickness |
| Low Carbon Steel Round bar size | Diameter: 3-~800mm |
| Carbon Steel Billet Size | 1/2″ to 495mm Diameter |
| CS Round Bar Standard Dimensions | Diameter / Height: Carbon Steel Rod and Bar Sizes : 0.5 inches / 0.625 inches / 0.75 inches / 0.875 inches / 1.0 inches / 1.125 inches / 1.25 inches / 1.375 inches / 1.5 inches / 1.75 inches / 2.0 inches / 2.25 inches / 2.5 inches / 2.75 inches / 3.0 inches / 3.25 inches / 3.5 inches / 3.75 inches / 4.0 inches / 4.25 inches / 4.5 inches / 5.0 inches / 5.25 inches / 5.5 inches / 6.0 inches / 7.0 inches / 8.0 inches / 9.0 inches. |
| Carbon Steel Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| CS Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |

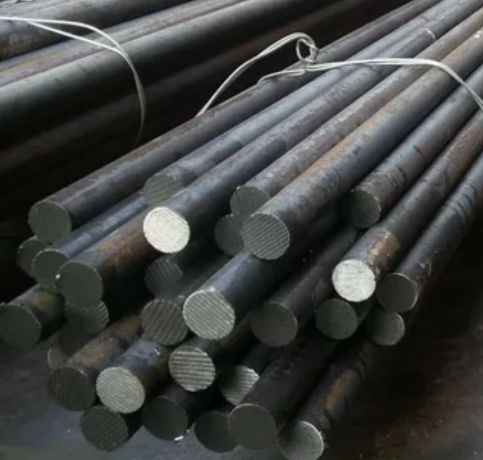

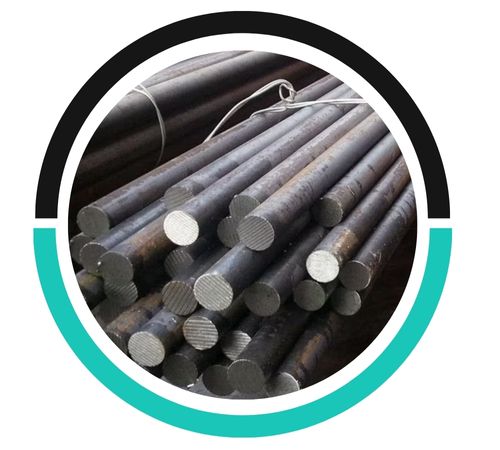

| Low Carbon Steel Technique | Carbon Steel Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Carbon Steel Condition | Hardened & tempered, annealed |

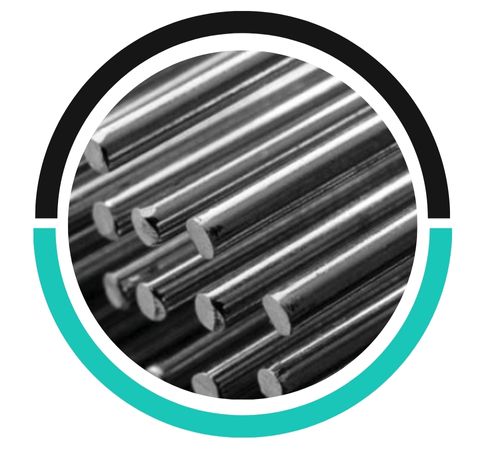

| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |

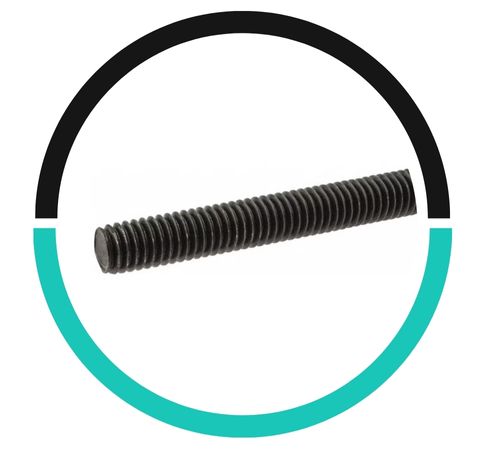

| Form | Carbon Steel Round, Rod, T-Bar, Channel Bar, Precision Ground Bar, Flat Bar, Square Bar, Blocks, Round Rod, Rings, Hollow, Triangle, Rectangle, Hex (A/F), Threaded, Half Round Bar, Profiles, Billet, Ingot, I/H Bar, Forging etc. |
| Processing | Bar cutting to 650mm |
| Our Carbon Steel Round bar conforms to NACE MR0175/ISO 15156 | |
| Carbon Steel Grades | C | Mn | Si | S Max. | P Max. |
|---|---|---|---|---|---|
| Ck 45 | 0.42/0.50 | 0.50/0.80 | 0.15/0.35 | 0.04 | 0.04 |
| Ck 55 | 0.52/0.60 | 0.60/0.90 | 0.15/0.35 | 0.04 | 0.04 |
| Ck 60 | 0.57/0.65 | 0.60/0.90 | 0.15/0.35 | 0.04 | 0.04 |
| SAE1006 | 0.08 max | 0.25/0.40 | 0.10/0.30 | 0.05 | 0.04 |
| SAE1008 | 0.10 max | 0.30/0.50 | 0.10/0.30 | 0.05 | 0.04 |
| SAE1010 | 0.08/0.13 | 0.30/0.60 | 0.10/0.30 | 0.05 | 0.04 |
| SAE1018 | 0.15/0.20 | 0.60/0.90 | 0.10/0.30 | 0.05 | 0.04 |
| SAE1020 | 0.18/0.23 | 0.30/0.60 | 0.10/0.30 | 0.09 | 0.04 |
| SAE1030 | 0.28/0.34 | 0.60/0.90 | 0.10/0.40 | 0.05 | 0.04 |
| SAE1035 | 0.32/0.38 | 0.60/0.90 | 0.10/0.40 | 0.05 | 0.04 |
| SAE1040 | 0.37/0.44 | 0.60/0.90 | 0.10/0.40 | 0.05 | 0.04 |
| SAE1045 | 0.40/0.50 | 0.60/0.90 | 0.10/0.40 | 0.05 | 0.04 |
| En-8D | 0.40/0.45 | 0.70/0.90 | 0.05/0.35 | 0.06 | 0.06 |
| En-9 | 0.50/0.60 | 0.50/0.80 | 0.05/0.35 | 0.06 | 0.06 |
| Grade | Yield Strength, | Tensile Strength, | Elongation at Break (in 50 mm) | Bulk Modulus (typical for steel) | Modulus of Elasticity | HBW | Poissons Ratio | Fatigue strength coefficient, of (Mpa) | Shear Modulus | Impacting Energy | Reduction of area, min: |
|---|---|---|---|---|---|---|---|---|---|---|---|
| a36 | 250 MPa | 400 – 550 MPa | 23.00% | 140 GPa | 200 GPa | 0.26 | 79.3 GPa | ||||
| 36300 psi | 58000 – 79800 psi | 23.00% | 20300 ksi | 29000 ksi | 0.26 | 11500 ksi | |||||
| EN45 | 35 (241) | 80 (551) | 40% | 204 Gpa | 948 | ≥63 | |||||
| EN19 | ≥930 Mpa | ≥1080 Mpa | ≥12 | 217 | ≥45 | ||||||
| 105 | 36,000 psi [250 MPa] | 70,000 psi (485 MPa] | 187 | 30% min | |||||||
| EN8 | ≥210 | ≥380 | ≥25 | ≤111HB | ≥50 |
You can buy high-quality carbon steel bars and rods from reputable suppliers in the India, such as Metal Supermarkets, Steel Express, and ParkerSteel, which offer a wide range of products.
The different types of carbon steel bars and rods include cold-finished, hot-rolled, alloy, mild, high-carbon, low-carbon, and medium-carbon, available in various shapes like round, square, and hexagonal.
Yes, you can order Carbon Steel Round Bars and Rods in custom sizes and polishes from suppliers. These can be tailored to meet specific requirements such as length, diameter, and finish.
Carbon Steel Round Bars and Rods find applications in shafting, pins, axles, and tie rods. The auto sector utilizes them as crankshafts, steering stems, and spindle parts. Heavy machines utilize them as driveshafts, axle pins, and roller shafts. In manufacturing, they turn into tie bars, gears, and precision fasteners. Grade 4140 is prevalent in machining blanks, couplings, and small-diameter structural rods. Since they are directly machinable and can be heat-treated or plated, round bars provide flexible, long-lasting solutions in mechanical engineering.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Dhruv Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Hyderabad , India
