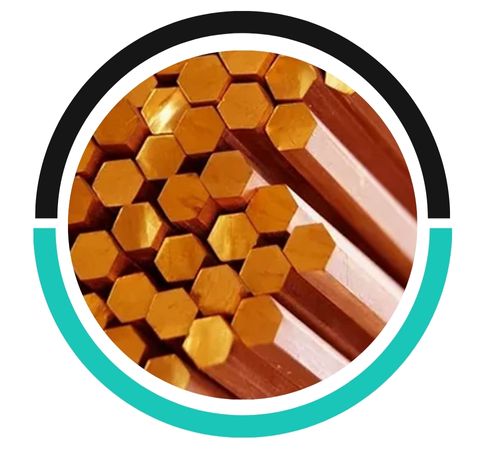

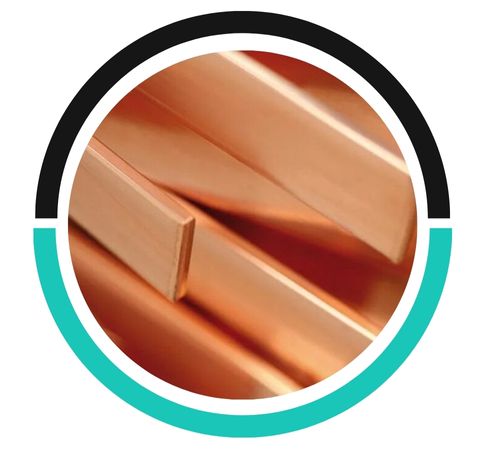

Dhruv Metals manufactures and supplies high-quality Copper Bars and Rods from its facility in Hyderabad, India. Known for their great conductivity, corrosion resistance, and ease of fabrication, these copper products are widely used in electrical, thermal, and industrial systems. The copper bars and rods offered by Dhruv Metals come in various shapes and dimensions, including round, square, hexagonal, and rectangular forms. Manufactured to ASTM B187 and other global standards, these products work well for critical applications that require purity, strength, and performance. Each batch is carefully inspected to ensure uniformity, conductivity, and dimensional accuracy for industrial needs.
Copper Bars and Rods are generally made from high-purity copper (Cu min. 99.9%), providing outstanding electrical and thermal conductivity. These products have tensile strength ranging from 210 to 300 MPa and yield strength of 70–200 MPa, depending on temper and processing. With elongation up to 45%, they are highly ductile and easy to form. Their corrosion resistance is excellent, particularly in water and industrial settings. Copper rods and bars are non-magnetic and antimicrobial, making them suitable for sanitary and electrical applications. They can be machined, brazed, and welded without losing their structural properties.
| Specifications | ASTM B187, ASTM B301 / ASME SB187, SB301 |
| Range | 3.17 MM TO 350 MM DIA |

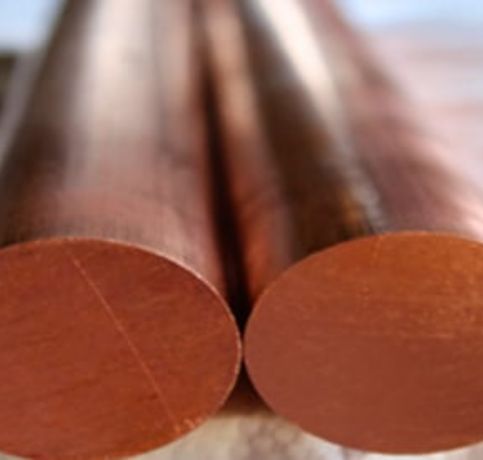

| Form | Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wire-mesh, Billet, Ingot, Forging Etc. |
| Material | Copper |
| ETP GRADE | |
|---|---|
| Copper Hex Bar | ø 8 mm to 110 mm |
| Copper Round | ø 7 mm to 120 mm |

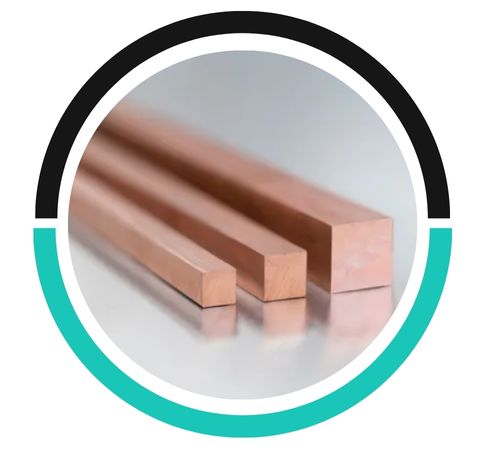

| Copper Square Bar | 10*10 mm to 90*90 mm |
| Electrical Conductivity: – (% IACS) | 98.5% min |
| Standards | BS EN 13601:2013, IS: 191, 1897 & 613 |
| Specifications | Cu : 99.90%, 02<400ppm |

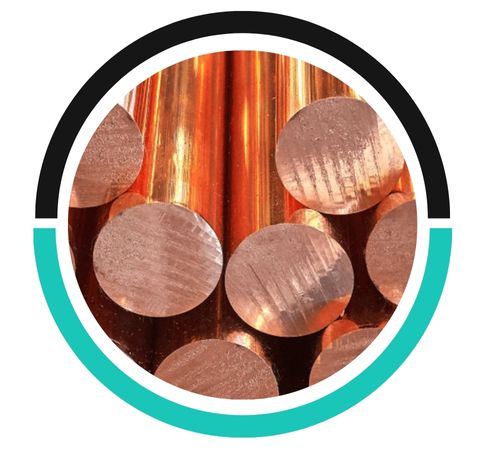

| Copper Round Rod C101 | |
|---|---|
| 6.3mm (1/4″) | 38.1mm (1 1/2″) |
| 9.5mm (3/8″) | 30mm |
| 12.7mm (1/2″) | 25.4mm (1″) |
| 12mm | 25mm |
| 10mm | 20mm |
| 16mm | 19mm (3/4 |
| Diameter in mm | Weight in Kg/m |
|---|---|
| 8 | 0,447 |
| 6 | 0,252 |
| 9,5 | 0,631 |
| 12 | 1,007 |
| 11 | 0,846 |
| 60 | 25,164 |
| 12,5 | 1,092 |
| 14 | 1,370 |
| 42 | 12,330 |
| 13 | 1,181 |
| 70 | 34,251 |
| 16 | 1,789 |
| 80 | 44,736 |
| 38 | 10,094 |
| 35 | 8,563 |
| 50 | 17,475 |
| 40 | 11,184 |
| 20 | 2,796 |
| 19 | 2,523 |
| 22 | 3,383 |
| 28 | 5,480 |
| 30 | 6,291 |
| 25 | 4,369 |
| 32 | 7,158 |
| 45 | 14,155 |
| Molecular Weight | 63.55 |
|---|---|
| Boiling Point | 2567 °C |
| Melting Point | 1083.4 °C |
| Density | 8.96 g/cm3 |
| Electrical Resistivity | 1.678 microhm-cm @ 20 °C |
| Appearance | Reddish Metal |
| Young’s Modulus | 110–128 GPa |
| Solubility in H2O | N/A |
| Heat of Fusion | 3.11 Cal/gm mole |
| Electronegativity | 1.9 Paulings |
| Poisson’s Ratio | 0.34 |
| Heat of Vaporization | 72.8 K-cal/gm atom at 2567 °C |
| Tensile Strength | N/A |
| Specific Heat | 0.092 Cal/g/K @ 25 °C |
| Thermal Expansion | (25 °C) 16.5 µm·m-1·K-1 |
| Thermal Conductivity | 4.01 W/cm/K @ 298.2 K |
| Vickers Hardness | 369 MPa |
Yes, Copper Bars and Rods can be susceptible to galvanic corrosion when in contact with dissimilar metals, particularly in the presence of moisture or electrolytes. Proper insulation helps prevent this.
Yes, Copper Bars and Rods are fully recyclable. The material retains its properties after recycling, making it an eco-friendly choice for sustainable industrial applications and reducing environmental impact.
Yes, Copper Bars and Rods can be used for natural gas applications. They offer excellent corrosion resistance and conductivity, making them suitable for gas systems, provided they are properly maintained.

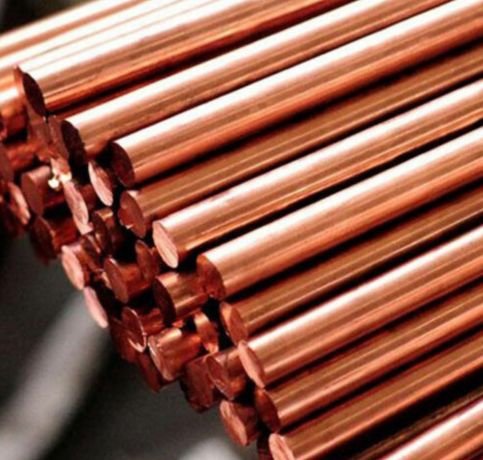

Copper Bars and Rods are used widely in electrical systems for busbars, switchgear, terminals, and grounding because of their high conductivity. In construction, they are applied in roofing, cladding, and architectural details. Their antimicrobial properties make them great for medical equipment and food processing. These products also work well in plumbing systems, transformers, heat exchangers, and electronic components. In industrial manufacturing, they are used for fasteners, gaskets, and electrical connectors. Dhruv Metals supplies copper bars and rods that meet various industrial needs, ensuring reliable performance, corrosion resistance, and ease of use in electrical and thermal systems.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
