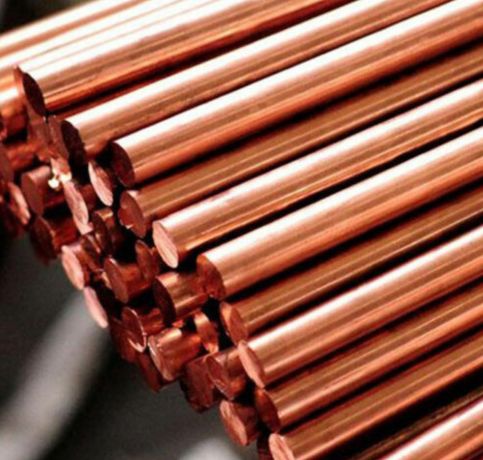

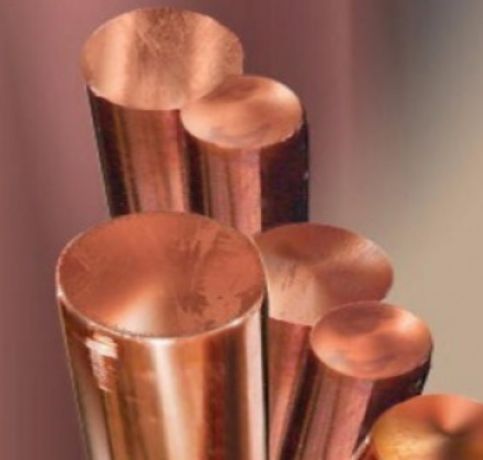

Based in Hyderabad, India, Dhruv Metals is a well-known producer and supplier of Copper C10200 Bars/Rods. Our speciality is providing oxygen-free, high-purity copper products that are designed to satisfy the demands of contemporary industries. Our Copper C10200 products are renowned for their outstanding corrosion resistance, ease of fabrication, and superior electrical and thermal conductivity. Dhruv Metals produces C10200 copper bars and rods that are appropriate for a variety of precision applications using sophisticated manufacturing processes and strict quality control. We are dedicated to providing consistently high-quality, prompt, and reasonably priced copper solutions to our clients in India and abroad.
With a minimum copper content of 99.95% and an oxygen content of less than 0.001%, copper C10200 is a high-purity, oxygen-free copper. It is perfect for delicate electrical applications because of its exceptional thermal conductivity and high electrical conductivity (about 100% IACS). Tensile strength ranges from 220 to 370 MPa, and depending on temper, Rockwell hardness ranges from B40 to 60. Additionally, the material has exceptional formability, ductility, and resistance to hydrogen embrittlement. C10200 is particularly suited for brazing, welding, and applications where electrical integrity and corrosion resistance are critical.
| Specifications | ASTM B187, ASTM B301 / ASME SB187, SB301 |
| Range | 3.17 MM TO 350 MM DIA |

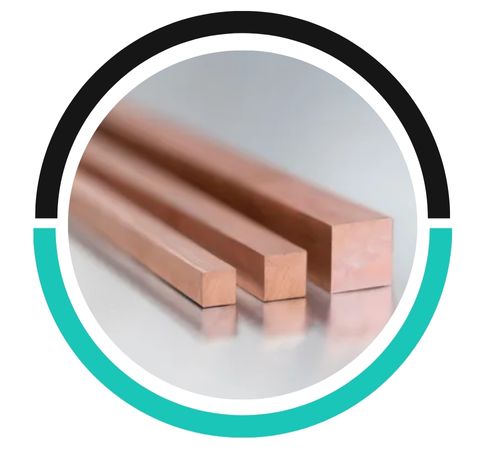

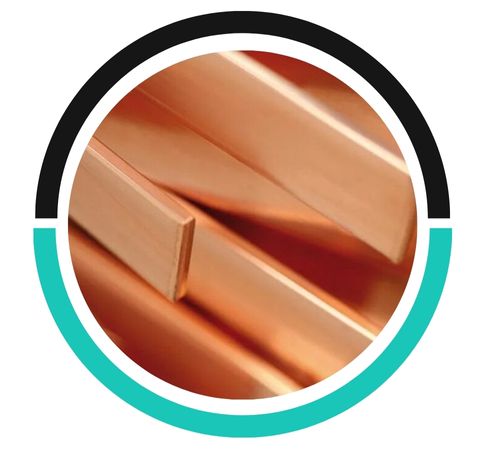

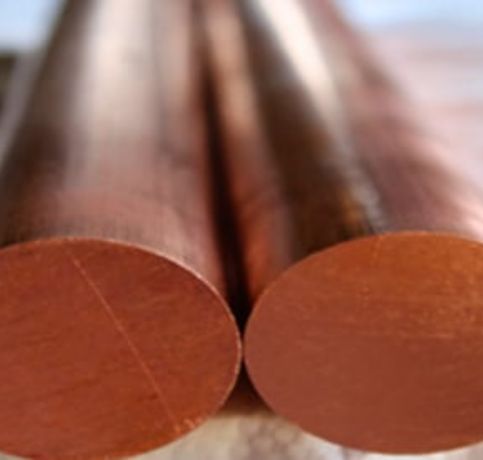

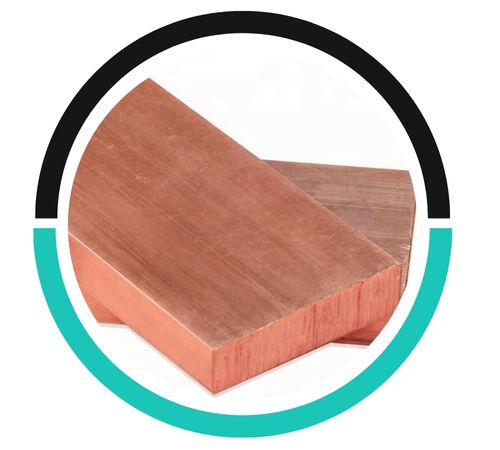

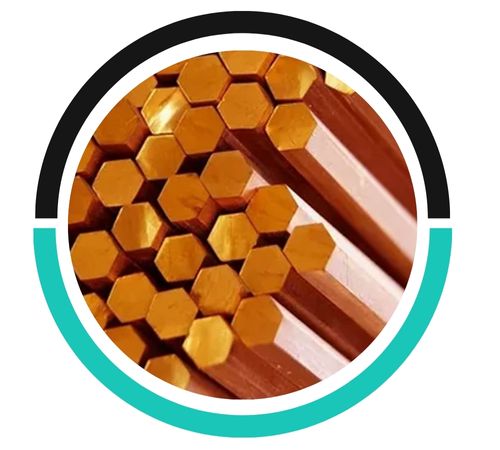

| Form | Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wire-mesh, Billet, Ingot, Forging Etc. |
| Copper Grades | C10200 |
| Melting Point – Solidus ⁰F | 1981 |
| Melting Point – Liquidus ⁰F | 1981 |
| Density lb/cu in. at 68⁰F | 0.323 |
| Electrical Conductivity % IACS at 68⁰F | 101 |
| Specific Gravity | 8.94 |
| Specific Heat Capacity Btu/lb/⁰F @ 68 ⁰F | 0.092 |
| Thermal Conductivity Btu/sq ft/ft hr/ ⁰F at 68⁰F | 226 |
| Coefficient of Thermal Expansion 10-6 per ⁰F (68-392 ⁰F) | 9.6 |
| Modulus of Rigidity ksi | 6400 |
| Coefficient of Thermal Expansion 10-6 per ⁰F (68-212 ⁰F) | 9.4 |
| Modulus of Elasticity in Tension ksi | 17000 |
| Coefficient of Thermal Expansion 10-6 per ⁰F (68-572 ⁰F) | 9.8 |
| Standards | Country | Value |
|---|---|---|
| EN | Europe | Cu-OF |
| DIN CEN/TS 13388 | Germany | CW008A |
| UNS | – | C10200 |
| JIS | Japan | C1020 |
| GB | China | TU1 |
| BS | England | C102 |
| Thermal Properties | Metric | English |
|---|---|---|
| Annealing Point | >= 371 °C | >= 700 °F |
| CTE, linear | 17.0 µm/m-°C @Temperature 20.0 – 100 °C | 9.44 µin/in-°F @Temperature 68.0 – 212 °F |
| 17.7 µm/m-°C @Temperature 20.0 – 300 °C | 9.83 µin/in-°F @Temperature 68.0 – 572 °F | |
| 17.3 µm/m-°C @Temperature 20.0 – 200 °C | 9.61 µin/in-°F @Temperature 68.0 – 392 °F | |
| Thermal Conductivity | 391 W/m-K @Temperature 20.0 °C | 2710 BTU-in/hr-ft²-°F @Temperature 68.0 °F |
| Melting Point | 1083 °C | 1981 °F |
| Specific Heat Capacity | 0.385 J/g-°C @Temperature 20.0 °C | 0.0920 BTU/lb-°F @Temperature 68.0 °F |
| Property/unit | Condition | Min | Max |
|---|---|---|---|
| Tensile Strength (N/mm2) | 1/2H | 290 | |
| Elongation in 5.65 Cross sectional area | O | 32 | |
| Tensile Strength (N/mm2) | H | 350 | |
| Tensile Strength (N/mm2) | O | 260 | |
| Elongation in 5.65Cross sectional area | 1/2H | 4 |
Yes, Copper C10200 Bars and Rods are fully recyclable. Copper retains its properties after recycling, making it an environmentally friendly and sustainable material for repeated use in various industries.
Copper C10200 Bars and Rods generally do not require corrosion protection coatings as copper naturally resists corrosion. However, in certain aggressive environments, protective coatings may be used to enhance durability.
Yes, Copper C10200 Bars and Rods can be welded using techniques like TIG and MIG welding. Their high conductivity and low oxygen content ensure strong and reliable welds for various applications.
Industries that require superior material purity and outstanding electrical and thermal conductivity frequently use copper C10200 bars and rods. Electrical conductors, switchgear, transformer windings, power bus bars and vacuum tube components are examples of common applications. C10200’s non-oxidizing and non-reactive properties make it perfect for use in high-vacuum settings, semiconductors, and plasma chambers. It is preferred in fields where performance and dependability are crucial, such as electronics, aerospace, and defence. It provides unparalleled consistency in crucial, high-performance engineering applications and is also utilised in high-frequency gearbox systems, cryogenic equipment, and precision instrumentation.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
