Copper C10500 Bar/Rods

Dhruv Metals based in the industrial heartland of Hyderabad , India. Proudly supplies high-quality Copper C10500 Bar and Rods to a diverse range of industries. Known for its exceptional thermal and electrical conductivity. C10500 copper is a commercially pure copper renowned for its malleability and corrosion resistance. These properties make it a reliable choice for a wide range of applications. From electrical components and busbars to plumbing fittings and heat exchangers. We have a range of sizes and lengths. We ensure that our clients can find the perfect material for their specific needs. Consistently delivering dependable copper products backed by years of expertise in the metals industry.

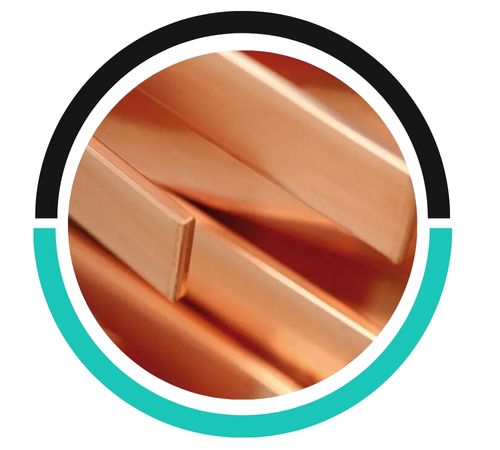

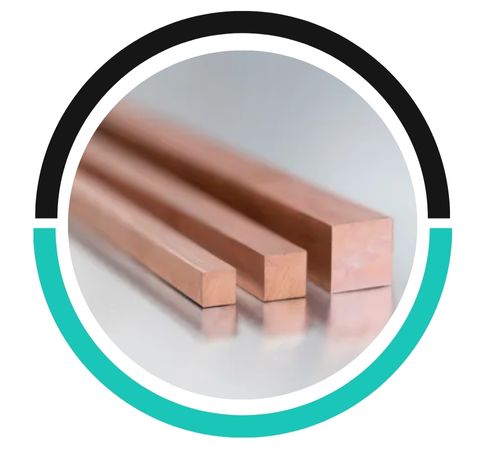

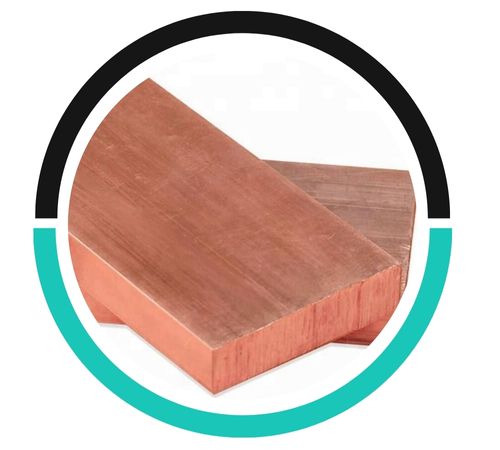

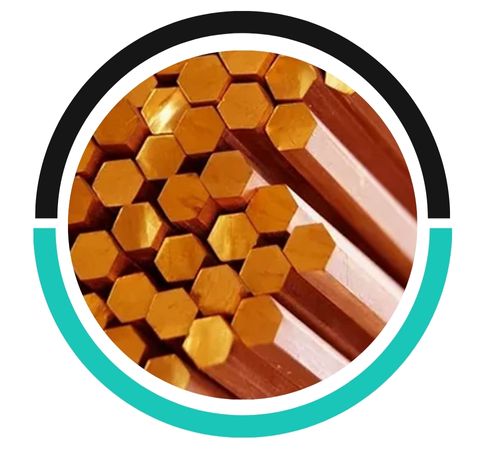

C10500 Copper Round Bars India, Copper C10500 Hexagonal Bars Supplier in Hyderabad , C10500 Copper Bus Bars Exporter in India, Copper C10500 Hex Bars Stockist in Hyderabad , C10500 Copper Alloy Rectangular Bars Supplier in India,Copper C10500 Square Bars Distributor in Hyderabad , 3/16" Copper C10500 Rod Stockist India, C10500 3/8" Copper Alloy Round Rod Price in India, Copper Flat Bars India

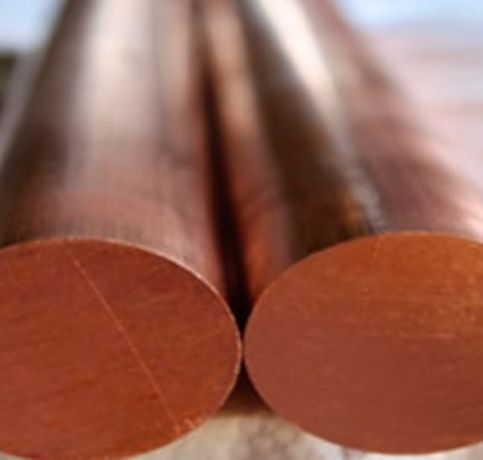

Copper C10500 Forging Rod

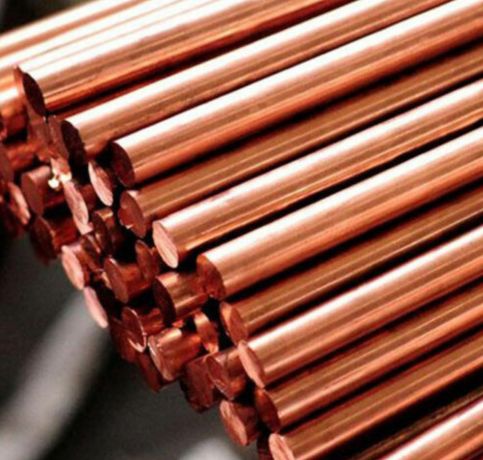

Copper C10500 Bus Bars

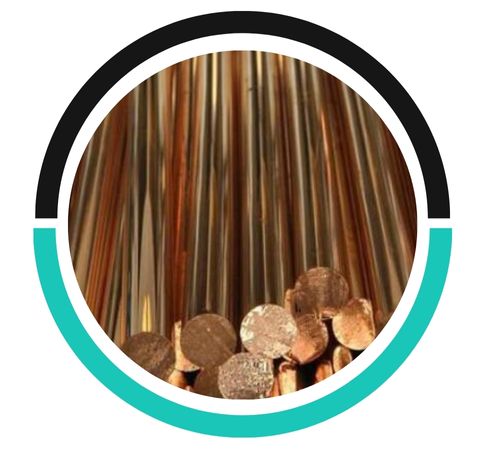

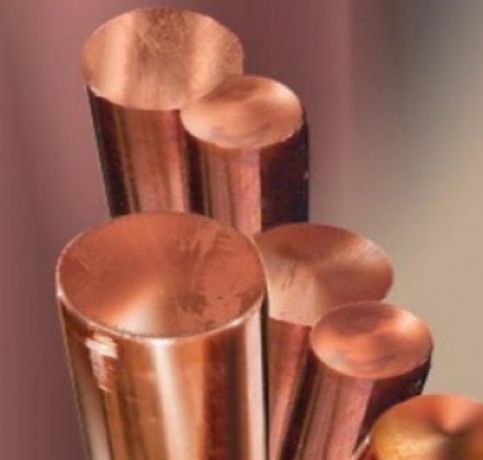

C10500 Copper Bright Rods

What is Copper C10500 Bar/Rods

Copper C10500 bar/rods are a commercially pure, oxygen-free copper renowned for its exceptional electrical and thermal conductivity. It is composed of a minimum of 99.95% copper, with trace amounts of other elements, typically less than 0.05% total. This has a very low hydrogen embrittlement and has excellent ductility and malleability due to the absence of oxygen in its composition. This grade of copper is usually used for applications requiring high conductivity. For example, electrical conductors, busbars, and components in electronic devices. Its corrosion resistance and ease of fabrication further add to its versatility.

C10500 Copper Forging Rod Price List in Hyderabad , Copper C10500 Threaded Bars Supplier in India, Copper C10500 Copper Hexagonal Bars Exporter in Hyderabad , C10500 Pure Copper Rods Exporter in India, C10500 Copper Round Bars Manufacturer in India, Copper C10500 Round Bars Distributor in India, C10500 Copper Half Round Bars Dealer in Hyderabad , Stockist of C10500 Copper Forged Bar in India, 20mm Copper C10500 Round Bar Supplier in India, C10500 Oxygen Free Copper Rectangle Rods Exporter in Hyderabad

Copper C10500 Bar and Rods Specification

Specifications	ASTM B187, ASTM B301 / ASME SB187, SB301
Range	3.17 MM TO 350 MM DIA
Form	Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wire-mesh, Billet, Ingot, Forging Etc.
Copper Grades	C10500

Copper C10500 Bar and Rods Chemical Compositions

Elements
Cu^(1,2,3)	Ag⁽⁴⁾	O
(1) This is a high conductivity copper which has, in the annealed condition a minimum conductivity of 100% IACS except for Alloy C10100 which has a minimum conductivity of 101% IACS. (2) Cu value includes Ag. (3) Cu is determined by the difference between the impurity total and 100%. (4) Ag 0.034% min is the equivelant of, Ag 10 Troy Oz min.
Min (%)	99.95	0.034
Max (%)			0.001

Copper C10500 Bar and Rods Mechanical Properties

Form	Temper	Temper Code	Tensile Strength (ksi)	YS-0.5% Ext (ksi)	Elongation (%)	Rockwell B scale	Rockwell F scale	Shear Strength (ksi)	Section Size (in)	Cold Work (%)
* Measured at room temperature, 68°F (20°C).
Rod	As Hot Rolled	M20	32 Typ	10 Typ	55 Typ		40 Typ	22 Typ	1
	Hard	H04	55 Typ	50 Typ	10 Typ	60 Typ	94 Typ	29 Typ	0.25	40
	Hard	H04	45 Typ	40 Typ	20 Typ	45 Typ	85 Typ	26 Typ	2	16
	Hard	H04	48 Typ	44 Typ	16 Typ	47 Typ	87 Typ	27 Typ	1	35
	Nominal Grain Size 0.050 mm	OS050	32 Typ	10 Typ	55 Typ		40 Typ	22 Typ	1

You Need Our Support, to Have Any Projects?

Test Certificate

Why Dhruv Metals?

Packaging

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

Copper C10500 Bar/Rods Types

C10500 Wrought Copper Alloy Rod & Bar Size Chart, C10500 Copper Round Rods Price in India, Copper C10500 Round Bars Supplier in Hyderabad , C10500 Copper Bus Bar Stockist in India, Copper C10500 Half Round Bar Supplier in Hyderabad , C10500 Copper Forged Bar Dealer in Hyderabad , 20mm Copper C10500 Round Bar Manufacturer in Hyderabad , C10500 Copper Round Rods Supplier in Hyderabad

Frequently Asked Questions (FAQ)

What Are The Considerations For Selecting Copper C10500 Bar and Rods?

When selecting Copper C10500 Bars and Rods, consider factors like conductivity, corrosion resistance, machinability, application requirements, and environmental conditions to ensure optimal performance and durability.

Can Copper C10500 Bars and Rods Be Used in Cryogenic Applications?

Yes, Copper C10500 Bars and Rods can be used in cryogenic applications due to their excellent thermal conductivity and mechanical stability at extremely low temperatures.

Do Copper C10500 Bar and Rods Require Regular Inspection?

Yes, Copper C10500 Bars and Rods require regular inspection to ensure their performance, detect wear or damage, and maintain their structural integrity in demanding applications.

Copper C10500 Bar & Rods Uses

Copper C10500 bars and rods known for their high electrical and thermal conductivity. Find extensive use in various industries. Their excellent machinability and corrosion resistance make them useful for electrical components like connectors, terminals and switchgear. They are also useful in heat exchangers and plumbing systems. The main industries that use C10500 Copper include electrical equipment manufacturing, automotive, construction and heat transfer/cooling systems. These industries rely on the specific properties of copper to ensure consistent performance in challenging applications.
