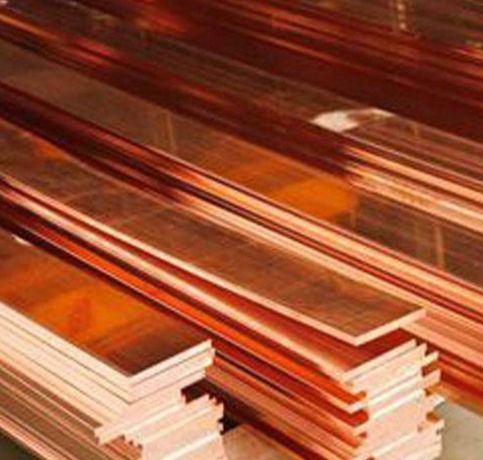

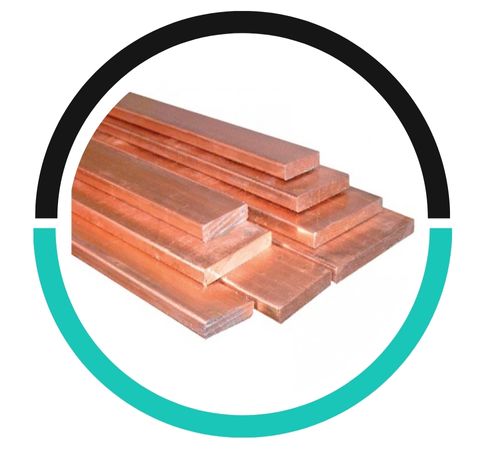

Dhruv Metals, a prominent manufacturer and supplier located in Hyderabad, India, specializes in crafting high-performance Copper Nickel Rectangular Bars tailored for tough industrial and marine applications. These bars are produced in line with international standards like ASTM B151 and are celebrated for their outstanding corrosion resistance, mechanical strength, and smooth surface finish. With a range of dimensions and copper-nickel grades such as 90/10 and 70/30, Dhruv Metals provides customized solutions to fit specific project requirements. Thanks to their advanced manufacturing facilities and a strong commitment to quality assurance, the company delivers reliable, precision-engineered products to both domestic and international markets.

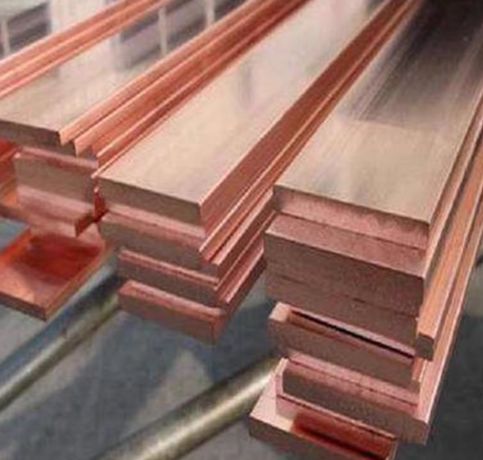

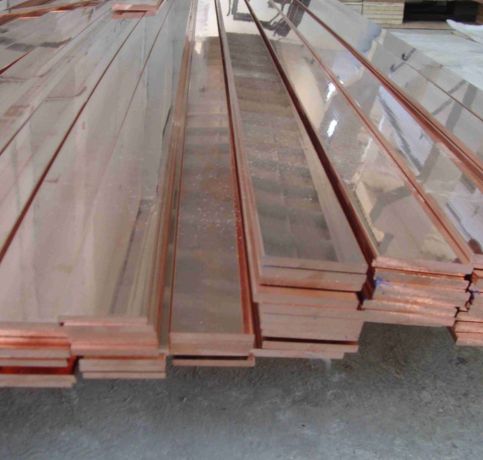

Copper Nickel Rectangular Bars are typically available in two grades: 90/10 (C70600) and 70/30 (C71500). The 90/10 alloy consists of 90% copper and 10% nickel, while the 70/30 variant contains 70% copper and 30% nickel, with trace amounts of iron and manganese to boost strength and corrosion resistance. These bars demonstrate tensile strength ranging from 310–500 MPa, yield strength between 105–250 MPa, and elongation of 30–45%. They are known for their excellent weldability, thermal conductivity, and formability, making them perfect for environments exposed to seawater, brine, and other corrosive substances.
| Standard | ASTM B111, ASME SB111 |
| Round Bar Size | 3mm~ 800mm |
| Square Bar Size | 4mm* 4mm ~100mm* 100mm |
| Flat Bar Size | 2mm ~ 100mm |
| Hex Bar Size | 2mm ~ 100mm |
| Angle Size | 3mm* 20mm* 20mm~ 12mm* 100mm* 100mm |
| Thickness | 50 mm to 6000 mm Long |
| Length | 1 To 6 Meters, Custom Cut Length |
| Form | Round, Square, Hex(A/F), Rectangle, Billet, Ingot, Forging Etc |
| Grade | Mn | Cu | Pb | Fe | Ni | Zn |
|---|---|---|---|---|---|---|
| 90/10 | 1.0 max | 88.6 min | 0.5 max | 1.8 max | 9-11 max | 1 max |
| 70/30 | 1 max | 65.0 min | 0.5 max | 0.4-1.0 | 29-33 | 1 max |
| Grade | Melting point | Density | Tensilestrength | Elongation | Yieldstrength(0.2%Offset) |
|---|---|---|---|---|---|
| 90/10 | 2260°F | 8.8g/cm3 | 50000 PSi | 30% | 20000 PSi |
| 70/30 | 2260°F | 0.323 lb/in3 at 68°F | 50000 PSi | 30% | 20000 PSi |
| BD | Bright drawn | SRE | Slit rolled edge |
| CF | Cold finished | HRAP | Hot rolled annealed / pickled |
| CG | Centreless ground | HF | Hot finished |
| ST | Smooth turned | PR | Peeled / reeled |
| CD | Cold drawn | P | Polished |
| P&T | Peeled / turned | RT | Rough turned and peeled |
| Metric | US Rods | ASTM/ Canadian | Japanese | ||||
|---|---|---|---|---|---|---|---|
| Rods Size | Diam. (mm) | Rods Size | Diam. (Inch) | Rods Size | Diam. (mm2) | Rods Size | Diam. (mm) |
| 5 | 5 | #2 | 0.250 | 10M | 100 | 6 | 6 |
| 5.5 | 5.5 | #3 | 0.375 | 15M | 200 | 10 | 10 |
| 6 | 6 | #4 | 0.500 | 20M | 300 | 13 | 13 |
| 7 | 7 | #5 | 0.600 | 25M | 500 | 16 | 16 |
| 8 | 8 | #6 | 0.750 | 30M | 700 | 19 | 19 |
| 9 | 9 | #7 | 0.875 | 35M | 1000 | 22 | 22 |
| 10 | 10 | #8 | 1.000 | 45M | 1500 | 25 | 25 |
| 11 | 11 | #9 | 1.125 | 55M | 2500 | 29 | 29 |
| 12 | 12 | #10 | 1.250 | 32 | 32 | ||
| 14 | 14 | #11 | 1.375 | 35 | 35 | ||
| 16 | 16 | #12 | 1.500 | 38 | 38 | ||
| 18 | 18 | #13 | 1.600 | 41 | 41 | ||
| 20 | 20 | #14 | 1.750 | 44 | 44 | ||
| 22 | 22 | #15 | 1.875 | 48 | 48 | ||
| 25 | 25 | #16 | 2.000 | 51 | 51 | ||
| 28 | 28 | #18 | 2.250 | 57 | 57 | ||
| 32 | 32 | ||||||
| 36 | 36 | ||||||
| 40 | 40 | ||||||
| 44 | 44 | ||||||
| 50 | 50 | ||||||
| Grade | UNS | Werkstoff Nr. |
| 90/10 | C70600 | 2.0872 |
| 70/30 | C71500 | 2.0882 |
Yes, Copper Nickel Rectangular Bars are customizable in terms of size, thickness, length, and alloy composition to meet specific requirements for various applications. Customization ensures optimal performance in marine, chemical, and industrial environments.
Copper Nickel Rectangular Bars find extensive use in marine, power, and chemical processing industries due to their remarkable resistance to saltwater corrosion and biofouling. They are often utilized in the construction of structural supports, brackets, pump components, condenser parts, and heat exchanger plates. In shipbuilding and offshore platforms, their durability and long lifespan in harsh conditions make them a top choice. Their high thermal conductivity and mechanical reliability also render them ideal for cooling systems, hydraulic lines, and instrumentation. Additionally, they are employed in architectural applications, showcasing their versatility and strength.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
