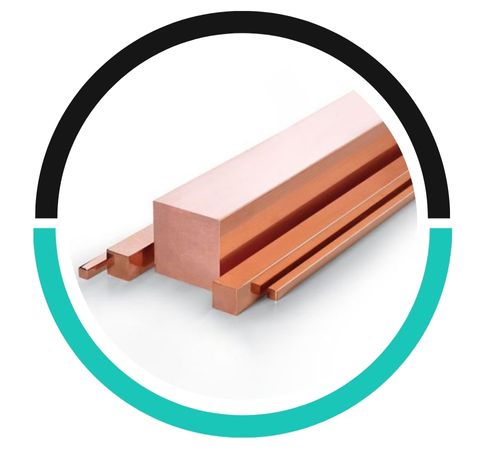

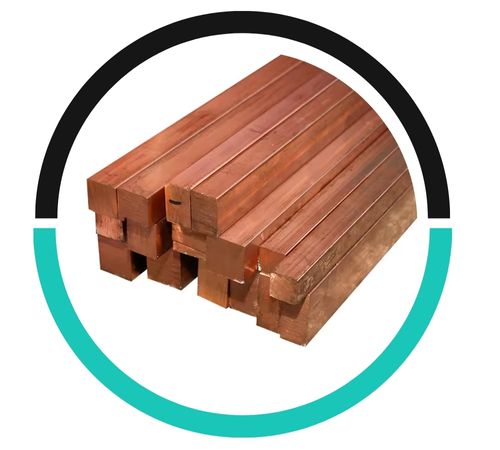

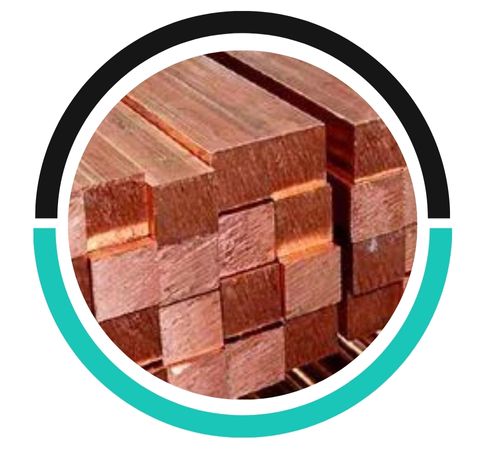

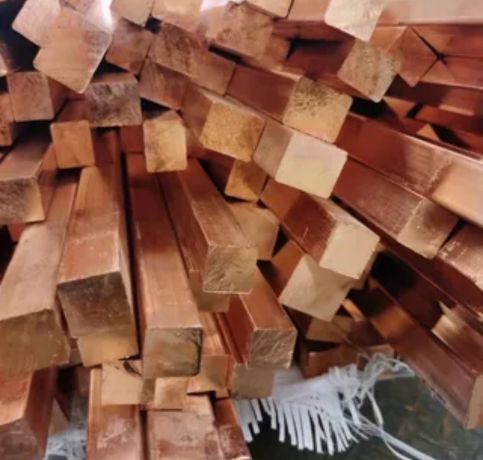

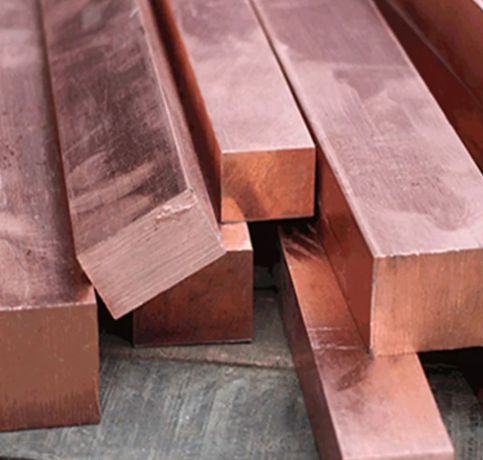

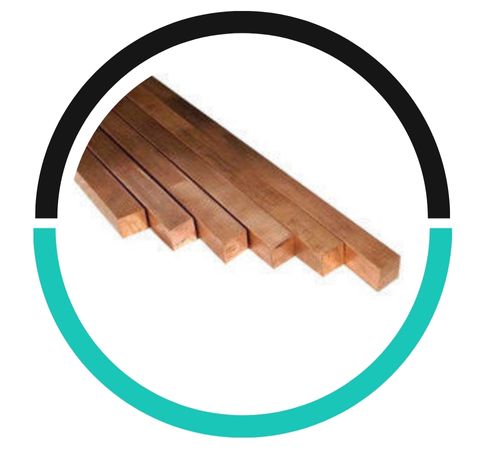

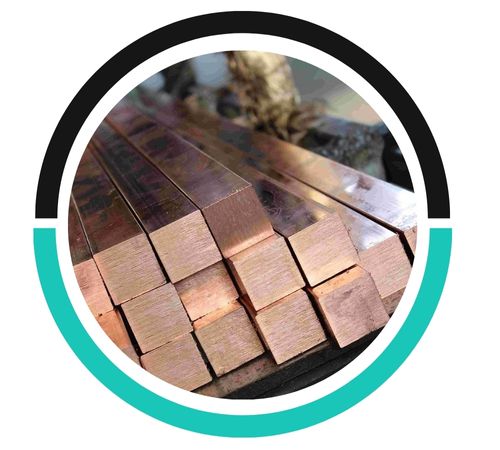

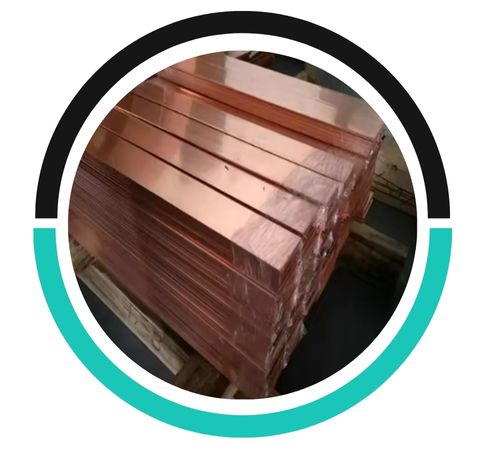

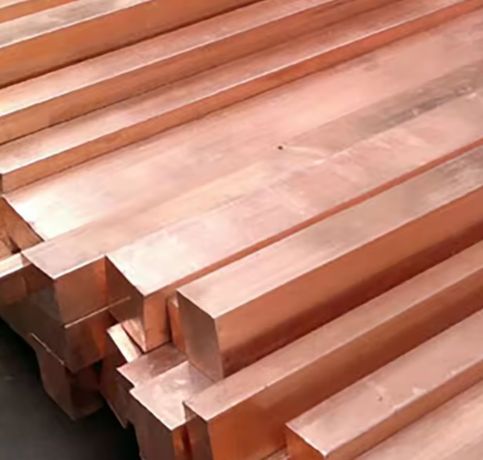

Dhruv Metals is a reputable supplier and manufacturer of Copper Nickel Square Bars in Hyderabad, India. They provide high-quality corrosion-resistant solutions for the marine, chemical, and structural industries. These square bars are made with tight dimensional tolerances and are available in standard Cu-Ni grades like 70/30 and 90/10. Recognized for their excellent weldability, strength, and thermal stability, Copper Nickel Square Bars are ideal for applications that need resistance to seawater, high humidity, and changing temperatures. Dhruv Metals ensures all square bars meet international standards like ASTM B151 and are checked for mechanical consistency and metallurgical integrity.
Copper Nickel Square Bars consist of 70% or 90% copper and 30% or 10% nickel, with small amounts of iron and manganese to boost strength and corrosion resistance. These bars exhibit tensile strength between 310 and 500 MPa and yield strength from 100 to 200 MPa, depending on the grade and condition. With elongation of up to 30%, they show excellent ductility and toughness. The square shape makes machining and fabrication straightforward, while the alloy maintains good performance under high pressure, heat, and in chloride-rich environments like seawater.
| Standard | ASTM B111, ASME SB111 |
| Round Bar Size | 3mm~ 800mm |
| Square Bar Size | 4mm* 4mm ~100mm* 100mm |
| Flat Bar Size | 2mm ~ 100mm |
| Hex Bar Size | 2mm ~ 100mm |
| Angle Size | 3mm* 20mm* 20mm~ 12mm* 100mm* 100mm |
| Thickness | 50 mm to 6000 mm Long |
| Length | 1 To 6 Meters, Custom Cut Length |
| Form | Round, Square, Hex(A/F), Rectangle, Billet, Ingot, Forging Etc |
| Grade | Mn | Cu | Pb | Fe | Ni | Zn |
|---|---|---|---|---|---|---|
| 90/10 | 1.0 max | 88.6 min | 0.5 max | 1.8 max | 9-11 max | 1 max |
| 70/30 | 1 max | 65.0 min | 0.5 max | 0.4-1.0 | 29-33 | 1 max |
| Grade | Melting point | Density | Tensilestrength | Elongation | Yieldstrength(0.2%Offset) |
|---|---|---|---|---|---|
| 90/10 | 2260°F | 8.8g/cm3 | 50000 PSi | 30% | 20000 PSi |
| 70/30 | 2260°F | 0.323 lb/in3 at 68°F | 50000 PSi | 30% | 20000 PSi |
| BD | Bright drawn | SRE | Slit rolled edge |
| CF | Cold finished | HRAP | Hot rolled annealed / pickled |
| CG | Centreless ground | HF | Hot finished |
| ST | Smooth turned | PR | Peeled / reeled |
| CD | Cold drawn | P | Polished |
| P&T | Peeled / turned | RT | Rough turned and peeled |
| Metric | US Rods | ASTM/ Canadian | Japanese | ||||
|---|---|---|---|---|---|---|---|
| Rods Size | Diam. (mm) | Rods Size | Diam. (Inch) | Rods Size | Diam. (mm2) | Rods Size | Diam. (mm) |
| 5 | 5 | #2 | 0.250 | 10M | 100 | 6 | 6 |
| 5.5 | 5.5 | #3 | 0.375 | 15M | 200 | 10 | 10 |
| 6 | 6 | #4 | 0.500 | 20M | 300 | 13 | 13 |
| 7 | 7 | #5 | 0.600 | 25M | 500 | 16 | 16 |
| 8 | 8 | #6 | 0.750 | 30M | 700 | 19 | 19 |
| 9 | 9 | #7 | 0.875 | 35M | 1000 | 22 | 22 |
| 10 | 10 | #8 | 1.000 | 45M | 1500 | 25 | 25 |
| 11 | 11 | #9 | 1.125 | 55M | 2500 | 29 | 29 |
| 12 | 12 | #10 | 1.250 | 32 | 32 | ||
| 14 | 14 | #11 | 1.375 | 35 | 35 | ||
| 16 | 16 | #12 | 1.500 | 38 | 38 | ||
| 18 | 18 | #13 | 1.600 | 41 | 41 | ||
| 20 | 20 | #14 | 1.750 | 44 | 44 | ||
| 22 | 22 | #15 | 1.875 | 48 | 48 | ||
| 25 | 25 | #16 | 2.000 | 51 | 51 | ||
| 28 | 28 | #18 | 2.250 | 57 | 57 | ||
| 32 | 32 | ||||||
| 36 | 36 | ||||||
| 40 | 40 | ||||||
| 44 | 44 | ||||||
| 50 | 50 | ||||||
| Grade | UNS | Werkstoff Nr. |
| 90/10 | C70600 | 2.0872 |
| 70/30 | C71500 | 2.0882 |
Yes, Copper Nickel Square Bars are customizable. They can be tailored in terms of size, shape, length, and specific alloy composition to meet the precise requirements of various industrial applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
