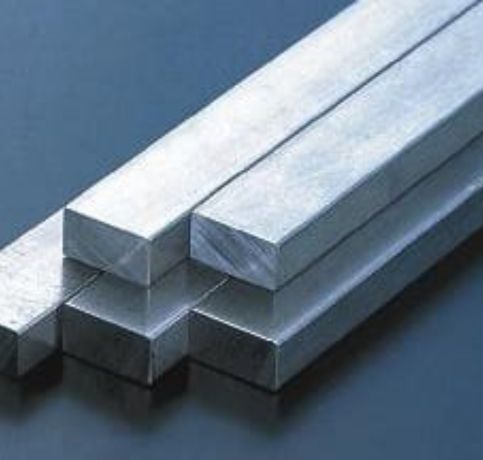

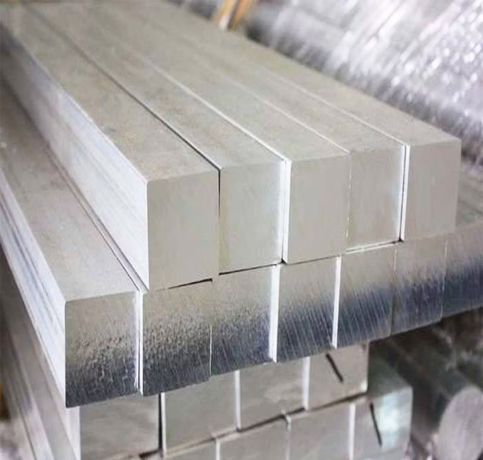

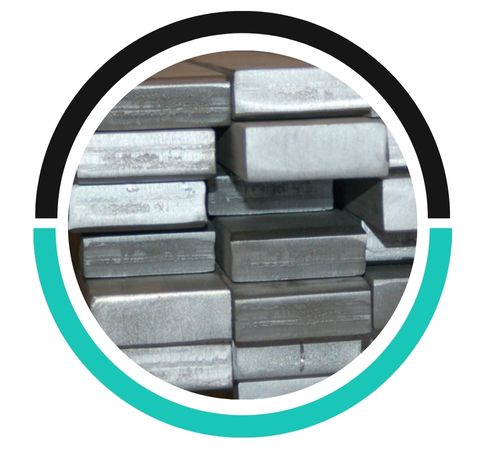

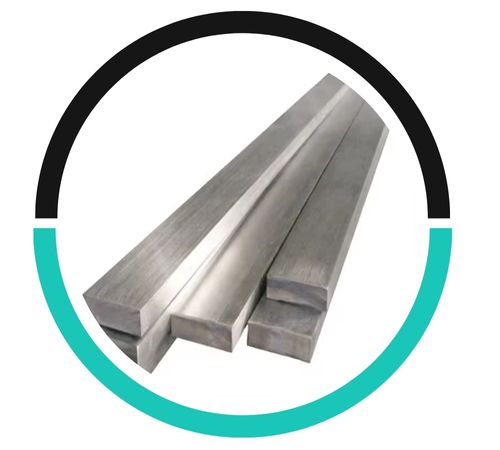

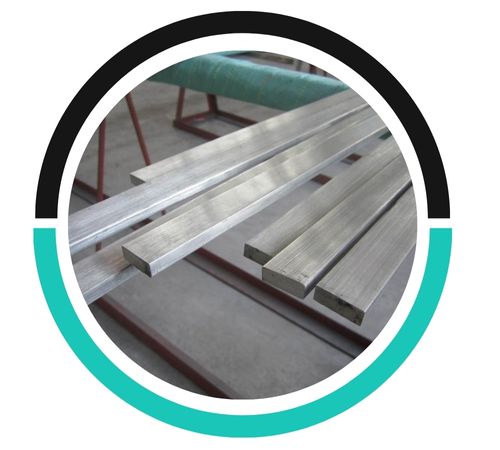

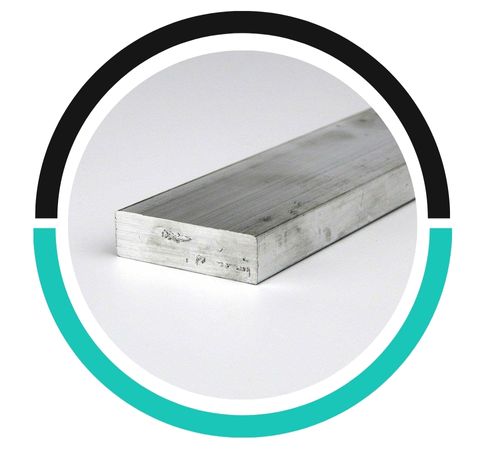

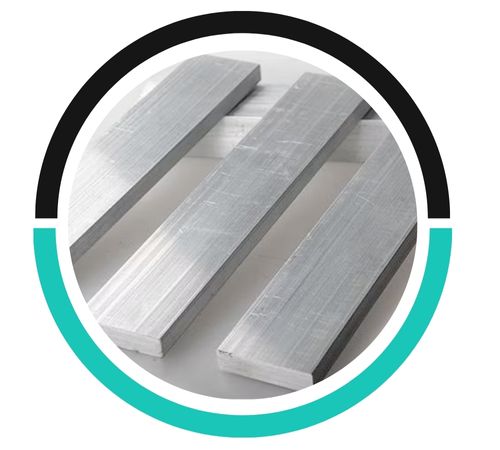

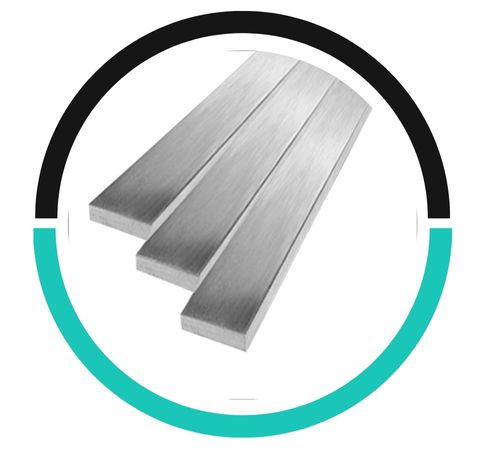

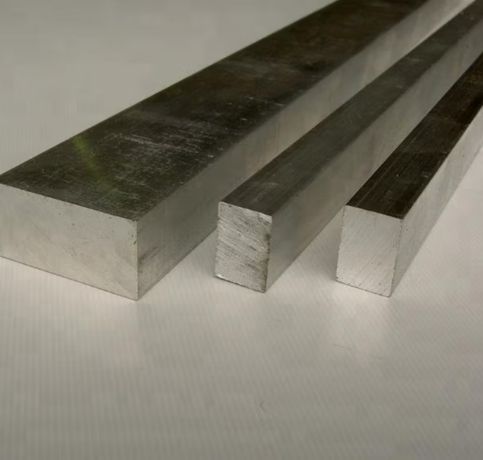

Dhruv Metals is a renowned manufacturer and supplier of Duplex Steel Flat Bars in Hyderabad, India. The bars are manufactured from Duplex grades like UNS S31803 and S32205, providing a microstructure of balanced austenite and ferrite. Accrued with excellent strength and superior corrosion resistance, particularly against chlorides and sulfides, Duplex flat bars are suitable for harsh industrial applications. Dhruv Metals provides precision machined flat bars with smooth edges and uniform mechanical properties for oil & gas, marine, chemical processing, and structural fabrication applications.
Duplex 2205 flat bars consist of ~22% Chromium, 5–6% Nickel, 3% Molybdenum, and 0.15–0.2% Nitrogen. Duplex 2205 flat bars are characterized by high mechanical strength with a usual yield strength of 450 MPa and tensile strength of 620–655 MPa. Elongation is approximately 25%, and hardness is close to 290 HB. Such bars exhibit great resistance towards stress corrosion cracking, pitting, and crevice corrosion, especially in environments with high chlorides. The microstructure of two phases gives twice the yield strength compared to normal austenitic grades such as 304 and 316, thus making them ideal for applications requiring high load in structures.
| Size | : | 10 mm To 100 mm Dia in 100 mm TO 6000 mm Length. |
| Standard | : | ASTM A276, A479 / ASME SA276, SA479, ASTM A789 / A789M & ASTM A928 / A928M |
| Grade | : | UNS NO. S 31803, S 32205, S 32550, S 32750, S 32760. |
| Finish | : | Bright, Polish & Black |
| End | : | Flat |
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
S31803 | 0.030 max | 2.00 max | 1.00 max | 0.030 max | 0.020 max | 22.0 – 23.0 | 3.0 – 3.5 | 4.50 – 6.50 | 0.14 – 0.20 | 63.72 min |
S32205 | 0.030 max | 2.00 max | 1.00 max | 0.030 max | 0.020 max | 21.0 – 23.0 | 2.50 – 3.50 | 4.50 – 6.50 | 0.8 – 0.20 | 63.54 min |
| Grade | Density | Melting point | Yield strength(0.2% offset) | Tensile strength | Elongation |
|---|---|---|---|---|---|
| S32750/S32760 | 7.8g/cm3 | 1350°C(2460°F) | PSi-80000, MPa-550 | PSi-116000, MPa-800 | 15% |
To maintain Duplex Steel Flat Bars, regularly clean them to remove debris, inspect for corrosion, and apply protective coatings if necessary. Ensure proper storage to prevent exposure to harsh chemicals or extreme conditions.
Yes, Duplex Steel Flat Bars are suitable for natural gas applications due to their excellent corrosion resistance and strength, making them ideal for pipelines and equipment exposed to natural gas environments.
Duplex Steel Flat Bars are partially magnetic due to their ferritic phase. While not as magnetic as pure ferritic steels, they may exhibit some magnetic properties, especially in certain conditions.
Duplex Steel Flat Bars find extensive application in bridge structures, platforms, marine fittings, and supports of chemical equipment. In offshore industries, they are preferred for frames, bracings, and grating supports for their strength as well as resistance to corrosion. In chemical processing plants, they find application in equipment bases, reinforcements in pressure vessels, as well as supports for heat exchangers. They are also appropriate for architectural components, coastal infrastructure, as well as transport equipment frames that need resilience against atmospheric or salt corrosion.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
