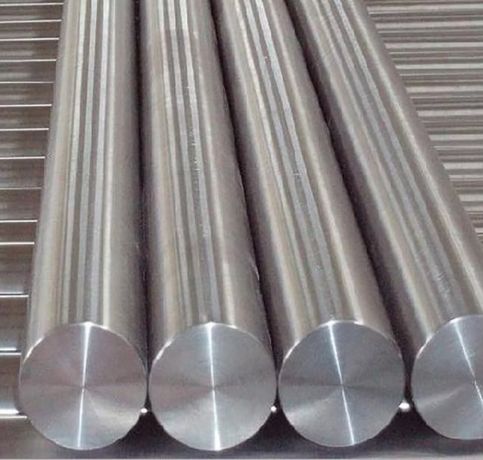

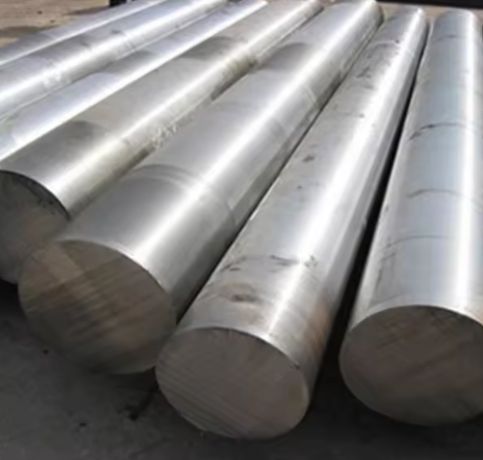

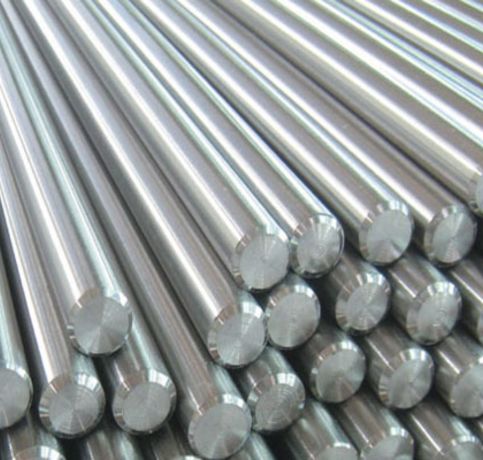

Dhruv Metals, Hyderabad, India, is a well-known manufacturer and supplier of high-quality Hastelloy Round Bars. Recognized for their superior corrosion resistance, high strength, and excellent ductility, the bars are best suited for chemical processing, marine, and aerospace applications. Obtained from reliable suppliers and processed under rigorous quality control, our Hastelloy products are of the highest precision engineering standards. With a large stock, expert personnel, and strong logistics, Dhruv Metals has emerged as the go-to option for industries requiring efficient, effective, and cost-competitive Hastelloy solutions—both locally in India and globally.
Hastelloy Round Bars contain predominantly nickel and molybdenum with chromium and iron additions, which confer excellent corrosion resistance in severe environments. These bars possess high tensile strength (≥690 MPa), yield strength (~310 MPa), and excellent ductility and creep resistance. Withstanding temperatures up to 870°C (1600°F), they exhibit excellent pitting, crevice corrosion, and oxidation resistance. The stability of the alloy under thermal and chemical stress, coupled with its ability to withstand severe environment, durability, and simple machining, renders it a good choice for severe, long-term applications in many high-criticality industries.
| Grade | C | Mn | Si | S | Co | Ni | Cr | Fe | Mo | P |
|---|---|---|---|---|---|---|---|---|---|---|
| C276 | 0.010 max | 1.00 max | 0.08 max | 0.03 max | 2.50 max | 50.99 min* | 14.50 – 16.50 | 4.00 – 7.00 | 15.00 – 17.00 | 0.04 max |
| C22 | 0.010 max | 0.50 max | 0.08 max | 0.02 max | 2.50 max | 50.015 min* | 20.00 – 22.50 | 2.00 – 6.00 | 12.50 – 14.50 | 0.02 max |
| B2 | 0.02 max | 1.0 max | 0.1 max | 0.03 max | 1.0 max | Bal | 1.0 max | 2.0 max | 26 – 30 | 0.04 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|---|
| Hastelloy C276 | 8.89 g/cm3 | 1370 °C (2500 °F) | Psi – 1,15,000 , MPa – 790 | Psi – 52,000 , MPa – 355 | 40 % |
| Hastelloy C22 | 8.69 g/cm3 | 1399 °C (2550 °F) | Psi – 1,00,000 , MPa – 690 | Psi – 45000 , MPa – 310 | 45 % |
| Hastelloy B2 | 9.2 g/cm3 | 1370 °C (2500 ºF ) | Psi – 1,10,000 , MPa – 760 | Psi – 51000 , MPa – 350 | 40 % |
| STANDARD | UNS | WNR. | JIS | GOST | EN | OR |
|---|---|---|---|---|---|---|
| Hastelloy C276 | N10276 | 2.4819 | NW 0276 | ХН65МВУ | NiMo16Cr15W | ЭП760 |
| Hastelloy C22 | N06022 | 2.4602 | NW 6022 | – | NiCr21Mo14W | – |
| Hastelloy B2 | N10665 | 2.4617 | – | – | – | – |
| Size (mm) | Weight (kg/m) | Size (mm) | Weight (kg/m) | Size (mm) | Weight (kg/m) |
|---|---|---|---|---|---|
| 7 x 7 | 0.337 | 19 x 19 | 2.479 | 38 x 38 | 9.916 |
| 8 x 8 | 0.44 | 20 x 20 | 2.747 | 40 x 40 | 10.988 |
| 9 x 9 | 0.556 | 21 x 21 | 3.029 | 42 x 42 | 12.114 |
| 10 x 10 | 0.687 | 22 x 22 | 3.324 | 45 x 45 | 13.906 |
| 11 x 11 | 0.831 | 24 x 24 | 3.956 | 48 x 48 | 15.822 |
| 12 x 12 | 0.989 | 25 x 25 | 4.292 | 50 x 50 | 17.168 |
| 13 x 13 | 1.161 | 26 x 26 | 4.642 | 53 x 53 | 19.29 |
| 14 x 14 | 1.346 | 28 x 28 | 5.384 | 55 x 55 | 20.774 |
| 15 x 15 | 1.545 | 30 x 30 | 6.181 | 60 x 60 | 24.723 |
| 16 x 16 | 1.758 | 32 x 32 | 7.032 | 65 x 65 | 29.015 |
| 17 x 17 | 1.985 | 34 x 34 | 7.939 | 70 x 70 | 33.65 |
| 18 x 18 | 2.225 | 36 x 36 | 8.9 | 75 x 75 | 38.629 |
Hastelloy round bars can undergo specific heat treatments, such as annealing, to enhance their mechanical properties and relieve stress. However, the exact process depends on the alloy grade and intended application.
Ensure the quality of Hastelloy Round Bars by sourcing them from reputable suppliers who adhere to industry standards like ASTM or ASME, and verify certifications like Mill Test Reports (MTR). Additionally, perform non-destructive testing (NDT) and inspect for dimensional accuracy and surface finish.
Yes, we provide Hastelloy Round Bars in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@dhruvmetals.co.in
Hastelloy Round Bars have diverse applications in industries where mechanical strength, thermal stability, and corrosion resistance are essential. In the petrochemical and chemical industries, they find perfect applications in reactors, heat exchangers, and distillation columns that have exposure to aggressive chemicals. The marine industry uses Hastelloy for seawater-exposed equipment like shafts, fasteners, and fittings because of its corrosion resistance in saltwater. In aerospace applications, these bars are employed in turbine components, exhaust ducts, and structural components that are subjected to high heat. Some other applications of these bars are flue gas scrubbers, power plants, and pollution control devices, where material integrity in harsh environments is crucial.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
