Incoloy 800/800H/800HT Bars/Rods

Based in Hyderabad, India, Dhruv Metals is a top producer and supplier of high-quality Incoloy 800/800H/800HT Bars and Rods, serving sectors that need to withstand high temperatures and corrosion. These nickel-iron-chromium alloys are made to function exceptionally well in harsh conditions and high temperatures over an extended period of time. For crucial industrial applications, Dhruv Metals guarantees exact manufacturing, dimensional accuracy, and international quality compliance. The company provides dependable and tailored Incoloy bar and rod solutions to both domestic and international markets, catering to industries like petrochemicals, power generation, heat treatment, and refineries with a customer-centric approach and strong supply capabilities.

Incoloy 800 Rods Dealer in Hyderabad , Incoloy 800 Round Bars Manufacturer in Hyderabad , Incoloy DIN 1.4958 Square Bars Supplier in Hyderabad , Incoloy Alloy 800 Flat Bars Price List in Hyderabad , Incoloy 800HT Rectangular Bars Supplier in India, Incoloy 800 Bars Price List in Hyderabad , Incoloy Alloy 800H Round Bars Exporter Stockist in India, Stockist of Incoloy 800HT Round Bars in India

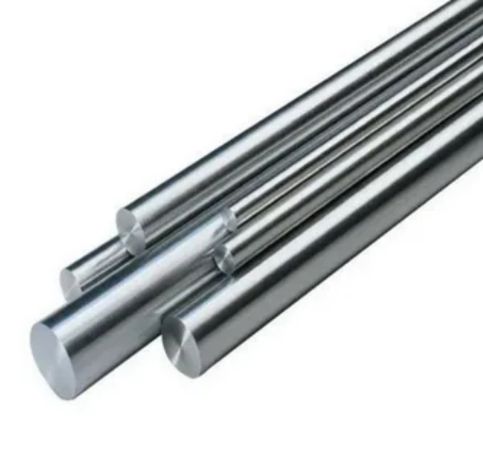

Incoloy 800 Round Bars

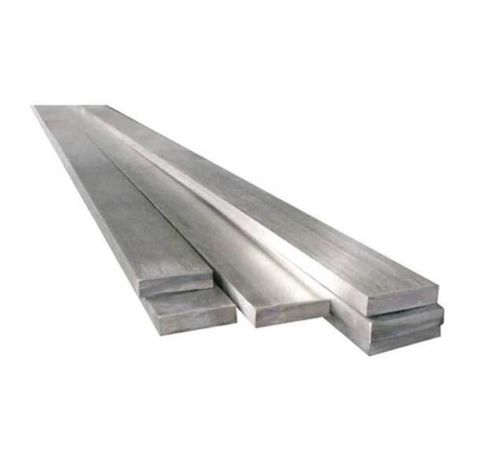

Incoloy 800H Rectangular Bars

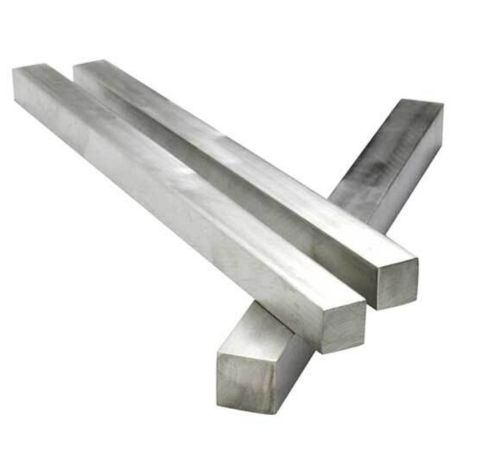

Incoloy 800H Square Rods

Nickel (30–35%), chromium (19–23%), and iron (39.5% min) make up the majority of Incoloy 800/800H/800HT Bars and Rods, with titanium and aluminium being added as well. For improved creep resistance and high-temperature strength, the 800H and 800HT versions contain more carbon and a regulated amount of aluminium and titanium. These alloys have an elongation of about 30–45%, a yield strength of 200–300 MPa, and a tensile strength of 450–600 MPa. They are perfect for extended high-temperature service in corrosive environments because they retain their structural stability and resistance to oxidation at temperatures higher than 1100°F (593°C).

Incoloy 800H Bars Supplier in India, Incoloy UNS N08810 Hollow Rods Price List in Hyderabad , Incoloy Alloy 1.4859 Rectangular Bars Supplier in India, Incoloy DIN 1.4876 Hexagonal Bars Exporter in Hyderabad , Incoloy 800 T-Bars Exporter in India, Incoloy 800HT Flat Rods Exporter in Hyderabad , ASME SB408 Incoloy Alloy 800HT Flat Bars India, Incoloy UNS N08811 Hollow Round Bar Manufacturer in India, Incoloy Alloy 800HT Round Bars Distributor in India, Incoloy 800H Polished Rods Dealer in Hyderabad

Incoloy 800/800H/800HT Bars and Rods Specification

Incoloy 800/800H/800HT Bars Specifications

Specification : ASTM B166, A479 / ASME SB166, SA479

Dimension Standard : EN, DIN, JIS, ASTM, BS, ASME, AISI

Incoloy Round Bars: Outside Diameter in the range of 4mm to 500mm

Incoloy Bright Bars : Outside Diameter in the range of 4mm to 200mm

Incoloy Hex Bars : 4mm – 101.6mm

Incoloy Square Bars : 3mm – 100mm

Incoloy Flat Bars : 1/2″ to 10″ in thickness range of 1.6mm to 150mm, Custom Size Stainless Steel Flats available

Finish : Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish

Length : 1 to 6 Meters, Custom Cut Lengths

Form : Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wire-mesh, Billet, Ingot, Forging Etc.

Chemical Compositions of Incoloy 800/800H/800HT Rods

Grade	C	Mn	Si	S	Cu	Fe	Ni	Cr	Al	Ti
800	0.10 max	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min	30.00 – 35.00	19.00 – 23.00	0.15 – 0.60	0.15 – 0.60
800H	0.05 – 0.10	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min	30.00 – 35.00	19.00 – 23.00	0.15 – 0.60	0.15 – 0.60
800HT	0.06 – 0.10	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min	30.00 – 35.00	19.00 – 23.00	0.15 – 0.60	0.15 – 0.60

Incoloy 800/800H/800HT Bars Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Alloy 800 / 800H / 800HT	7.94 g/cm3	1385 °C (2525 °F)	Psi – 75,000 , MPa – 520	Psi – 30,000 , MPa – 205	30 %

Incoloy 800/800H/800HT Bars and Rods Equivalent Grades

STANDARD	WERKSTOFF NR.	UNS	GOST	AFNOR	JIS	BS	EN	OR
Incoloy 800	1.4876	N08800	ЭИ670	Z8NC32-21	NCF 800	NA 15	X10NiCrAlTi32-20	XH32T
Incoloy 800H	1.4958 / 1.4876	N08810	ЭИ670	Z8NC33-21	NCF 800H	NA 15(H)	X5NiCrAlTi31-20	XH32T
Incoloy 800HT	1.4859 / 1.4876	N08811	ЭИ670	–	NCF 800HT	NA 15(HT)	X8NiCrAlTi32-21	XH32T

You Need Our Support, to Have Any Projects?

Test Certificate

Why Dhruv Metals?

Packaging

Weight Chart of Incoloy 800/800H/800HT Bars and Rods

Incoloy 800 Round bar
Size	Kgs / Foot	Kgs / Mtr	Size	Kgs / Foot	Kgs / Mtr	Size	Kgs / Foot	Kgs / Mtr
3mm	0.017	0.055	20mm	0.753	2.470	3″	10.900	35.762
1/8″	0.019	0.062	22mm	0.908	2.979	3-1/4″	12.800	41.996
5/32″	0.029	0.095	7/8″	0.926	3.038	3-1/2″	14.850	48.772
4mm	0.030	0.098	24mm	1.080	3.543	3-3/4″	17.001	55.780
3/16″	0.043	0.141	25mm	1.180	3.871	4″	19.306	63.340
5mm	0.047	0.154	1″	1.210	3.970	4-1/4″	21.908	72.249
7/32″	0.058	0.190	26mm	1.271	4.170	4-1/2″	24.4487	80.340
6mm	0.068	0.223	27mm	1.368	4.490	4-3/4″	27.366	90.249
1/4″	0.076	0.249	1-1/8″	1.534	5.033	5″	30.461	99.940
7mm	0.091	0.298	30mm	1.691	5.548	5-1/2″	36.690	121.000
5/16″	0.118	0.387	1-1/4″	1.924	6.349	6″	43.860	143.900
8mm	0.120	0.398	32mm	1.894	6.314	6-1/2″	51.093	167.630
9mm	0.152	0.498	1-3/8″	2.303	7.550	7″	59.432	196.000
3/8″	0.170	0.557	35mm	2.390	7.553	7-1/2″	68.226	225.000
10mm	0.189	0.620	36mm	2.438	7.999	8″	77.586	254.55
11mm	0.228	0.748	38mm	2.792	8.903	10″	121.048	397.140
7/16″	0.232	0.761	1-1/2″	2.715	8.951
12mm	0.271	0.889	40mm	3.009	9.872
1/2″	0.303	0.994	1-5/8″	3.200	10.449
13mm	0.318	1.043	1-3/4″	3.712	12.179
14mm	0.368	1.207	45mm	3.807	12.555
9/16″	0.383	1.256	1-7/8″	4.260	13.977
15mm	0.424	1.391	48mm	4.330	14.205
5/8″	0.473	1.551	50mm	4.698	15.414
16mm	0.481	1.578	2″	4.848	15.906
17mm	0.543	1.791	2-1/8″	5.475	17.963
11/16″	0.573	1.880	2-1/4″	6.135	20.128
18mm	0.610	2.001	60mm	6.768	22.205
3/4″	0.682	2.237	2-3/8″	6.838	22.435
			2-1/2″	7.576	24.856
			2-5/8″	8.354	27.409
			2-3/4″	9.169	30.083

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

Incoloy 800/800H/800HT Bars and Rods Types

ASTM B166 Incoloy Alloy 800 Rectangular Rods Exporter in India, Incoloy 1.4859 Round Bars Stockist in Hyderabad , Incoloy 800 Hex Bars Supplier in India, Incoloy UNS N08800 Cold Drawn Round Bars Distributor in Hyderabad , ASTM B166 Incoloy Alloy 800 Rods Stockist India Incoloy 800HT Rods Price in India, Incoloy 800H Round Bars, Incoloy DIN 1.4876 Rectangular Bars Supplier in Hyderabad

Incoloy 800/800H/800HT Bars and Rods Uses

Incoloy 800/800H/800HT bars and rods are widely used in industrial settings with high temperatures where oxidation resistance and strength are essential. Heat exchangers, furnace parts, superheaters, and machinery used in petrochemical processing are among the common applications. These alloys are perfect for headers, reformer tubing, and structural supports in refineries and power plants. They are appropriate for use in radiant tubes, pressure vessels, and steam generators due to their resistance to sulfidation, carburisation, and thermal fatigue. They are also used in the nuclear and chemical industries for heat-treating baskets, piping systems, and reactor cores where thermal stability and long-term dependability are crucial.

Our Products

Other Products

Other Material

If You Are Looking To Buy High Quality

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
