Dhruv Metals, based in Hyderabad, India, is a trusted and seasoned manufacturer and supplier of Nitronic 30 Bars and Rods. They provide top-notch stainless steel solutions designed for industrial settings that need effective corrosion and abrasion resistance without breaking the bank. Known for their consistent quality, timely deliveries, and technical know-how, Dhruv Metals offers Nitronic 30 products that adhere to strict industry standards. Their state-of-the-art facilities and skilled workforce guarantee precise manufacturing and finishing of bars and rods, making them ideal for bulk handling, transportation, and construction projects. Dhruv Metals proudly serves various industries both in India and internationally with reliable and customizable Nitronic 30 solutions.
Nitronic 30 Bars and Rods mainly consist of iron, chromium (16–18%), nickel (2–4%), and manganese (up to 8%), along with some nitrogen, silicon, and trace amounts of other elements. This austenitic stainless steel alloy strikes a great balance between strength and corrosion resistance, especially in mildly corrosive and abrasive conditions. It boasts a tensile strength of about 620 MPa and a yield strength of around 275 MPa, along with high ductility and impressive toughness, even in colder temperatures. These characteristics make it a practical and cost-effective option for structural and transport-related uses.
| Grade | Nitronic 30 Round Bar |
|---|---|
| Specification | DIN, JIS, ASTM, BS, ASME, AISI |

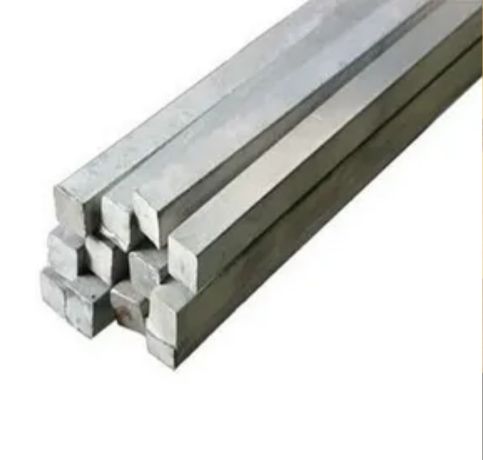

| Nitronic 30 Square bar size | 4 to 100mm |
| Nitronic Alloy 30 Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Nitronic UNS S20400 Hex Bar size | 2-100mm A/F |
| Nitronic 30 Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |

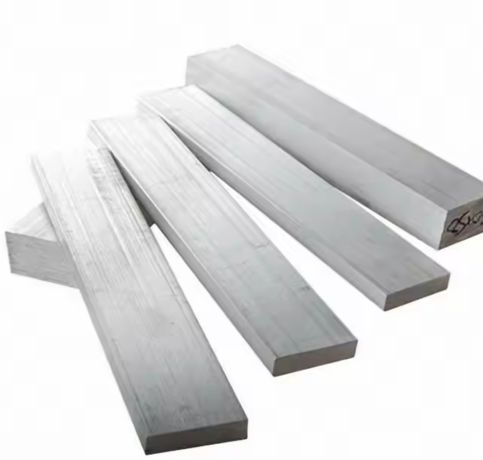

| Nitronic Alloy 30 Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Nitronic UNS S20400 Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Nitronic 30 Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Nitronic Alloy 30 Section | 3.0 to 12.0mm thickness |
| Nitronic UNS S20400 Round bar size | Diameter: 3-~800mm |
| Nitronic 30 Billet Size | 1/2″ to 495mm Diameter |
| Nitronic Alloy 30 Round Bar Standard Dimensions | Diameter / Height: |
| Nitronic 30 Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Nitronic Alloy 30 Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Nitronic UNS S20400 Technique | Nitronic 30 Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Nitronic 30 Condition | Hardened & tempered, annealed |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Form | Nitronic 30 Round, Rod, T-Bar, Nickel Alloy Channel Bar, Precision Ground Bar, Nickel Alloy Flat Bar, Nickel Alloy Square Bar, Nickel Alloy Blocks, Nickel Alloy Round Rod, Nickel Alloy Rings, Nickel Alloy Hollow, Nickel Alloy Triangle, Rectangle, Hex (A/F), Nickel Alloy Threaded, Half Round Bar, Profiles, Nickel Alloy Billet, Nickel Alloy Ingot, I/H Bar, Forging etc. |
| Processing | Bar cutting to 650mm |
| Our Nitronic 30 Round bar conforms to NACE MR0175/ISO 15156 | |
| Grade | C | Mn | S | Si | N | Ni | Cr |
| Nitronic Alloy 30 | 0.030 | 17.0 – 15.0 | 0.030 | 1.00 | 0.30 – 0.15 | 3.00 – 1.50 | 17.00 – 15.00 |
Ultimate Tensile, min. | Yield Strengtd (0.2% OS) min. | Elong. in 2 in., or 50mm, min., % | R/A | Hardness, max. | |
Min | 95 KSi | 48 KSi | 35 |
| |
Max | 241 Brinell | ||||
Min | 655 MPa | 330 MPa | |||
Max | 100 Rockwell B |
| STANDARD | UNS | DIN |
|---|---|---|
| Nitronic 30 Round bar | S20400 | – |
Common diameters for Nitronic 30 rod typically range from 1/8" to 6", with popular sizes including 1/4", 1/2", 3/4", 1", and 2" for various industrial applications.
Nitronic 30 bars typically come with a smooth finish, although a rough finish may also be available depending on the supplier or the specific processing requirements.
Nitronic 30 rod is typically available in sizes ranging from 1/8" to 3" in diameter. Finishes include hot-rolled, cold-drawn, and polished, offering a smooth, uniform surface for various applications.
Nitronic 30 Bars and Rods find their place in industries that demand high toughness, good weldability, and moderate corrosion resistance at a reasonable price. You’ll often see them in applications like railroad cars, dump truck liners, ore handling systems, and coal chutes, where abrasion resistance is crucial. In construction, they serve as structural supports and architectural elements that face atmospheric corrosion. This alloy is also a great fit for wastewater treatment facilities, storage tanks, and material handling equipment. With its blend of durability, formability, and cost efficiency, Nitronic 30 has become a go-to choice for high-wear, moderate-cost applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
