A top producer and supplier of high-end Nitronic 50 bars and rods, Dhruv Metals is based in Hyderabad, India, and is renowned for its remarkable strength and resistance to corrosion. High-performance alloy specialist Dhruv Metals produces Nitronic 50 products that adhere to strict industrial standards, guaranteeing dependable operation in extremely corrosive and stressful conditions. These bars and rods have exceptional resistance to cracking from chloride stress corrosion, pitting, and crevice corrosion. Widely utilised in the oil and gas, chemical, marine, and aerospace industries, Dhruv Metals offers precisely engineered Nitronic 50 solutions that are delivered on time and to client specifications.
Significant amounts of chromium (20–23%), nickel (11–13%), manganese (4–6%), molybdenum (1.5–3%), and nitrogen (~0.2–0.4%) are present in the iron that makes up Nitronic 50 Bars and Rods. Superior mechanical performance and corrosion resistance are provided by this well-balanced composition. Nitronic 50 has a yield strength of 380–690 MPa, a tensile strength of 690–960 MPa, and an elongation of up to 40%. It has twice the yield strength of stainless steels from the 300 series and maintains its toughness at below-freezing temperatures. The alloy is appropriate for applications needing high strength and corrosion resistance because it is non-magnetic in both annealed and cold-worked states.
| Grade | Nitronic Alloy 50 / XM-19 (UNS No. S20910) |
|---|---|
| Specification | DIN, JIS, ASTM, BS, ASME, AISI |

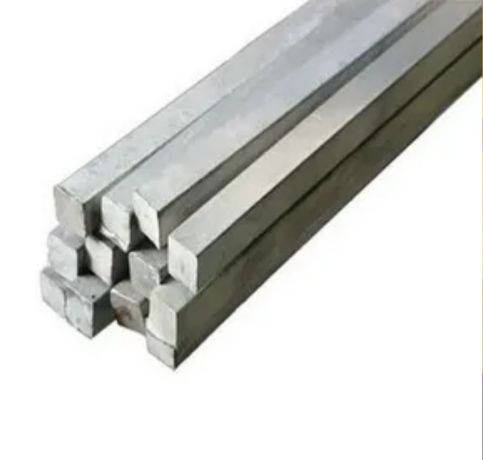

| Nitronic 50 Square bar size | 4 to 100mm |
| Nitronic Alloy 50 Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Nitronic Alloy UNS S20910 Hex Bar size | 2-100mm A/F |
| Nitronic 50 Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |

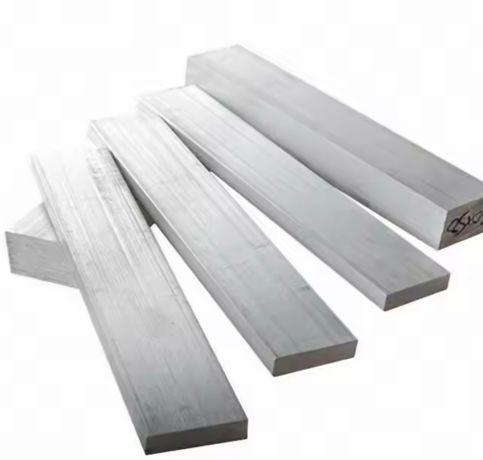

| Nitronic Alloy 50 Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Nitronic Alloy UNS S20910 Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Nitronic 50 Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Nitronic Alloy 50 Section | 3.0 to 12.0mm thickness |

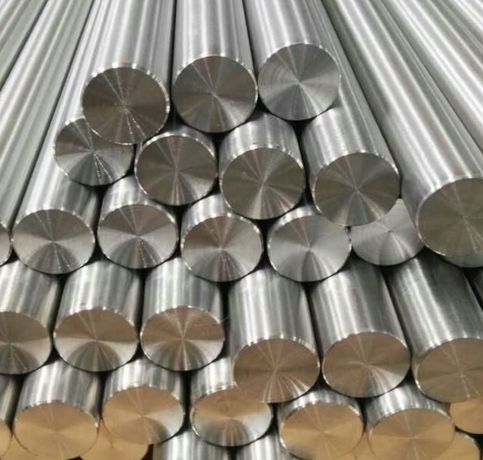

| Nitronic Alloy UNS S20910 Round bar size | Diameter: 3-~800mm |
| Nitronic 50 Billet Size | 1/2″ to 495mm Diameter |
| Nitronic Alloy 50 Round Bar Standard Dimensions | Diameter / Height: |
| Nitronic 50 Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Nitronic Alloy 50 Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Nitronic Alloy UNS S20910 Technique | Nitronic 50 Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Nitronic 50 Condition | Hardened & tempered, annealed |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Form | Nitronic 50 Round, Rod, T-Bar, Nickel Alloy Channel Bar, Precision Ground Bar, Nickel Alloy Flat Bar, Nickel Alloy Square Bar, Nickel Alloy Blocks, Nickel Alloy Round Rod, Nickel Alloy Rings, Nickel Alloy Hollow, Nickel Alloy Triangle, Rectangle, Hex (A/F), Nickel Alloy Threaded, Half Round Bar, Profiles, Nickel Alloy Billet, Nickel Alloy Ingot, I/H Bar, Forging etc. |
| Processing | Bar cutting to 650mm |
| Our Nitronic 50 Round bar conforms to NACE MR0175/ISO 15156 | |
| Grade | C | Mn | S | Si | N | Ni | Cr |
| Nitronic Alloy 50 | .06 | .10 | 0.03 | 1.00 | 0.20 – 0.40 | 11.50 – 13.50 | 20.50 – 23.50 |
| Hardness MAX, Brinell | 241 |
| Ultimate Tensile Strength, ksi | 95 |
| 0.2% Yield Strength, ksi | 50 |
| Elongation, % | 35 |
| Reduction of Area, % | 55 |
| STANDARD | UNS | DIN |
|---|---|---|
| Nitronic 50 | S20910 | 1.3964 |
High strength, superior corrosion resistance, and good mechanical performance are all necessary in demanding applications for nitronic 50 bars and rods. Because they don’t corrode in saltwater, they are perfect for the marine industry’s boat shafts, seawater pumps, and underwater fasteners. They are utilised in fittings, pumps, and valve stems in chemical and petrochemical facilities. Nitronic 50 is used in the aerospace and defence industries for high-load and structural components. It is also appropriate for applications requiring resistance to pitting and stress corrosion, such as nuclear power, pharmaceutical equipment, and food processing. Long-term performance in demanding environments is guaranteed by their dependability.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
