Dhruv Metals, located in Hyderabad, India, stands out as a trusted manufacturer and supplier of Stainless Steel 317L Square Bars and Rods. They serve a diverse array of industries with top-notch stainless steel solutions. Renowned for their precision craftsmanship and unwavering quality standards, Dhruv Metals provides 317L square bars and rods that excel in corrosion resistance, particularly in harsh chemical environments. Thanks to their cutting-edge production techniques, skilled team, and a strong focus on customer satisfaction, clients can count on receiving durable, high-quality stainless steel products that perform reliably in demanding applications where strength, durability, and exceptional corrosion resistance are essential.
Stainless Steel 317L Square Bars and Rods are made from low-carbon, molybdenum-bearing austenitic stainless steel, featuring about 18-20% chromium, 11-15% nickel, and 3-4% molybdenum, with a maximum carbon content of 0.03%. This unique composition provides outstanding resistance to pitting, crevice corrosion, and general corrosion. The alloy boasts a tensile strength of approximately 515 MPa, a yield strength of 205 MPa, and an elongation of around 35%. Its low carbon content not only enhances weldability but also minimizes the risk of intergranular corrosion, making it an excellent choice for high-corrosion and high-temperature settings.

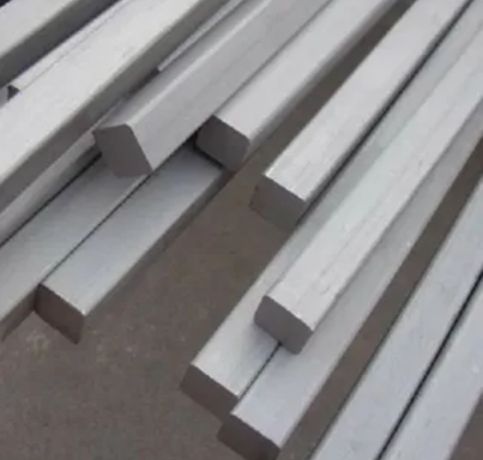

Stainless Steel 317L Square Bars Specification :
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A582, A276, A564, ASTM A484, 484M
Surface : hrap, hot rolled pickled or sand blasting finished, cold drawn, polished, hairline
Size : Tolerance: H8, H9, H10, H11, H12, H13K9, K10, K11, K12
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 317 | 0.03 max. | 18.0 – 20.0 | 2.00 max. | 11.0 – 15.0 | 0.045 max. | 0.03 max. | 0.75 max. |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi ” 75000, MPa ” 515 | Psi ” 30000, MPa ” 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS |
| SS 317 | 1.4438 | S31703 |
| SQUARES | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.62 | 2.05 |
| 18 | 0.79 | 2.59 |
| 20 | 0.76 | 2.49 |
| 22 | 1.18 | 3.87 |
| 25 | 1.52 | 5.00 |
| 28 | 1.91 | 6.27 |
| 30 | 2.19 | 7.20 |
| 32 | 2.50 | 8.19 |
| 36 | 3.16 | 10.37 |
| 38 | 3.52 | 11.55 |
| 40 | 3.90 | 12.80 |
| 45 | 4.94 | 16.20 |
| 50 | 6.10 | 20.00 |
| 56 | 7.65 | 25.08 |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Yes, Stainless Steel 317L square bars and rods can be recycled after use. They retain their properties and can be repurposed for new applications, making them highly sustainable.
To ensure the quality of Stainless Steel 317L square rods, source them from reputable suppliers and conduct material tests such as chemical composition and mechanical properties. Additionally, check for compliance with relevant industry standards and certifications.
Yes, Stainless Steel 317L square bars can be used for underground applications due to their excellent corrosion resistance, particularly in environments with high moisture or chloride exposure. Their durability ensures long-lasting performance in such conditions.
Stainless Steel 317L Square Bars and Rods find extensive use in industries that deal with aggressive chemicals and corrosive substances. Typical applications include equipment for chemical and petrochemical processing, machinery in the pulp and paper industry, textile industry equipment, condensers, heat exchangers, and pharmaceutical processing units. These bars and rods are particularly well-suited for environments that are acidic, such as those involving sulfuric, phosphoric, and acetic acids. Their remarkable formability and weldability make them perfect for fabricating components that demand high corrosion resistance and durability, ensuring a long service life even in tough operating conditions.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
