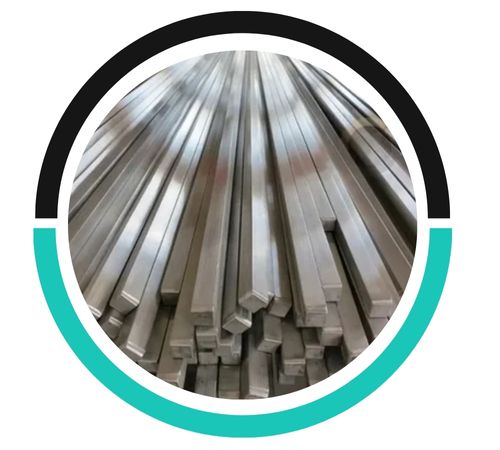

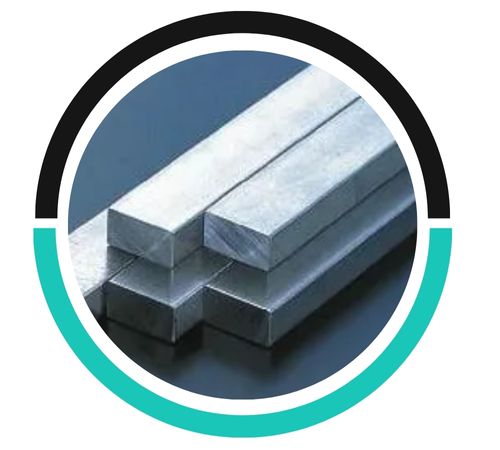

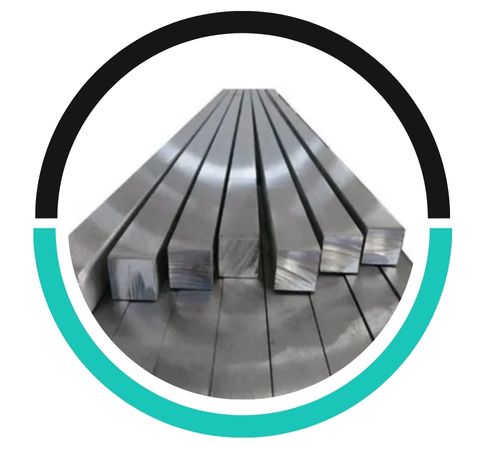

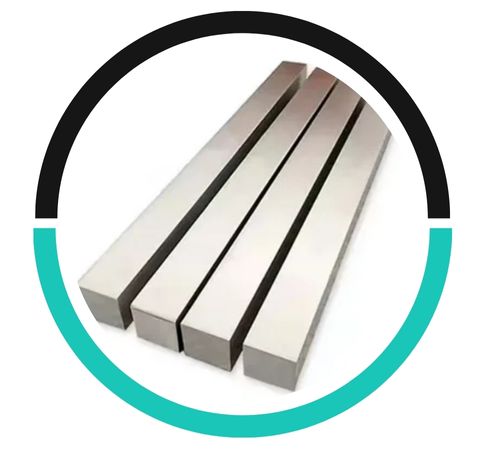

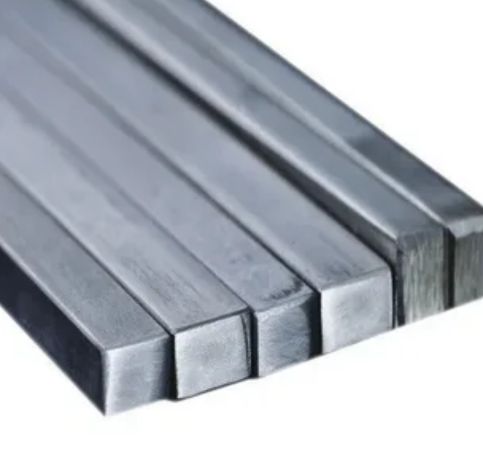

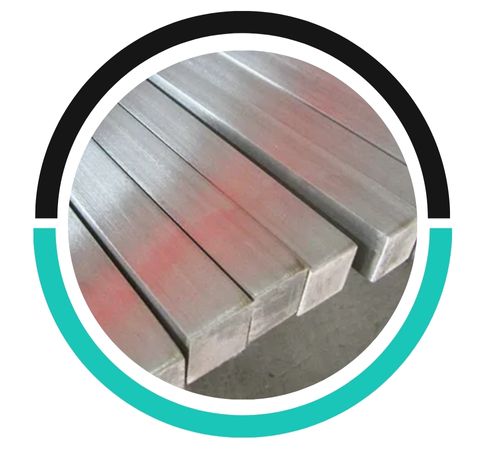

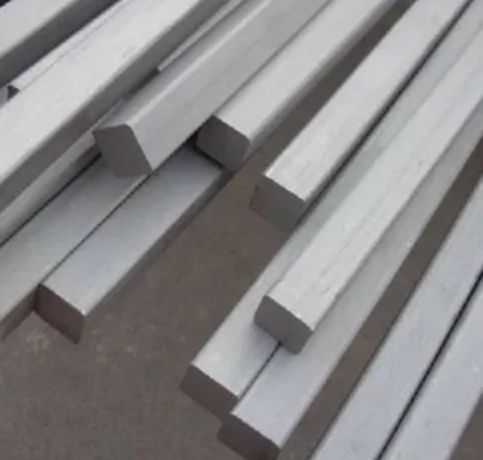

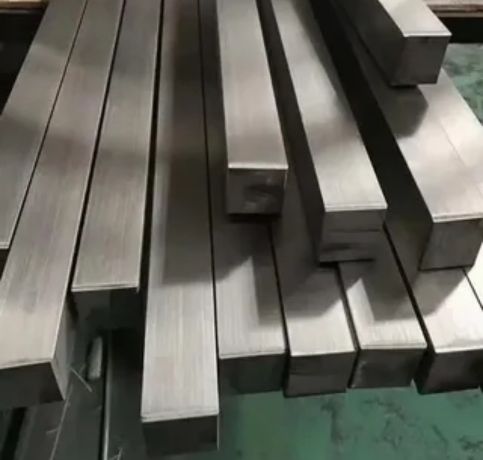

Dhruv Metals, located in Hyderabad, India, is a reliable manufacturer and supplier of Stainless Steel 321H Square Bars and Rods, known for their outstanding performance in high-temperature and pressure applications. SS 321H is a high-carbon variant of the stabilized austenitic stainless steel 321, designed to provide improved creep strength and resistance to intergranular corrosion. Our 321H square bars and rods are produced in accordance with ASTM A276 and other international standards, ensuring excellent weldability and structural integrity. Dhruv Metals also offers precision-engineered, custom-cut square bars for various industries, including petrochemical, aerospace, power generation, and thermal processing plants.
Stainless Steel 321H Square Bars and Rods consist of 17–19% chromium, 9–12% nickel, and titanium (at least five times the carbon content) to prevent carbide precipitation. The higher carbon content (0.04–0.10%) enhances strength at elevated temperatures. These bars boast a tensile strength of around 515 MPa, yield strength of about 205 MPa, and an elongation of 40%, with a Brinell hardness of approximately 217 HB. SS 321H exhibits excellent mechanical and oxidation resistance at temperatures reaching 900°C, making it perfect for extended use in high-heat, high-stress environments.
Stainless Steel 321H Square Bars Specification :
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A582, A276, A564, ASTM A484, 484M
Surface : hrap, hot rolled pickled or sand blasting finished, cold drawn, polished, hairline
Size : Tolerance: H8, H9, H10, H11, H12, H13K9, K10, K11, K12
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 321H | 0.04 – 0.10 | 17.0 – 19.0 | 2.00 max. | 9.0-12.0 | 0.045 max. | 0.03 max. | 0.75 max. |
| Grade | Tensile Str (MPa) min | Yield Str 0.2% Proof (MPa) min | Elong (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 321H | 515 | 205 | 40 | 95 | 217 |
| STANDARD | WERKSTOFF NR. | UNS |
| SS 321H | 1.4438 | S32109 |
| SQUARES | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.62 | 2.05 |
| 18 | 0.79 | 2.59 |
| 20 | 0.76 | 2.49 |
| 22 | 1.18 | 3.87 |
| 25 | 1.52 | 5.00 |
| 28 | 1.91 | 6.27 |
| 30 | 2.19 | 7.20 |
| 32 | 2.50 | 8.19 |
| 36 | 3.16 | 10.37 |
| 38 | 3.52 | 11.55 |
| 40 | 3.90 | 12.80 |
| 45 | 4.94 | 16.20 |
| 50 | 6.10 | 20.00 |
| 56 | 7.65 | 25.08 |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Stainless Steel 321H Square Bars and Rods are perfect for applications like heat exchangers, boiler tubes, furnace components, and superheater tubing, where strength at high temperatures and oxidation resistance are essential. They find extensive use in oil refineries, thermal power stations, chemical processing plants, and automotive and aerospace exhaust manifolds. Thanks to their resistance to intergranular corrosion and scaling at elevated temperatures, SS 321H square bars are also utilized in pressure vessels, welded piping, and continuous process equipment. Dhruv Metals delivers high-performance 321H square bars with precise dimensions and consistent quality for extreme conditions.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
