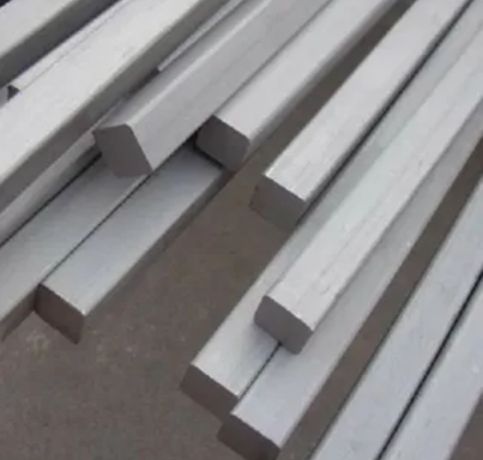

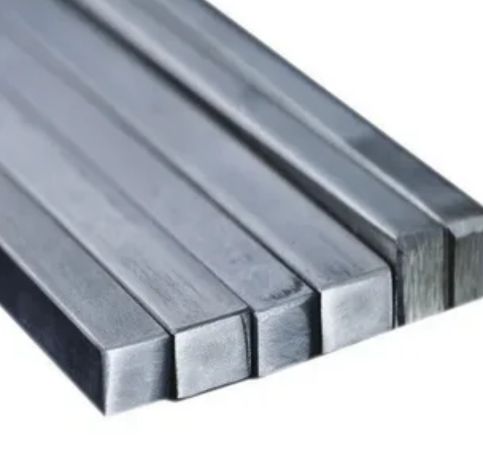

Dhruv Metals, a top-notch manufacturer and supplier based in Hyderabad, India, specializes in high-performance Stainless Steel 347 Square Bars and Rods. These products are crafted for outstanding durability, especially in high-temperature and corrosive environments. Stainless Steel 347 is a stabilized austenitic alloy enriched with niobium (or columbium), which boosts its resistance to intergranular corrosion after being exposed to high temperatures. Our 347 square bars and rods are made in line with ASTM A276 and other relevant standards, ensuring they offer excellent weldability, strength, and long-lasting reliability. Dhruv Metals is committed to delivering precision-engineered products that meet the demands of critical industrial applications in sectors like petrochemical, power generation, heat exchangers, and food processing.
Stainless Steel 347 Square Bars and Rods mainly consist of 18–20% chromium, 9–13% nickel, and columbium (niobium) to prevent carbide precipitation. They also contain manganese, silicon, and a maximum of 0.08% carbon, along with phosphorus and sulfur. These bars boast a tensile strength of around 515 MPa, a yield strength of about 205 MPa, and an elongation of roughly 40%, with a Brinell hardness of approximately 201 HB. SS 347 retains excellent mechanical properties and corrosion resistance at temperatures up to 870°C, making it ideal for thermal cycling applications, welding, and pressure-retaining systems in tough operating conditions.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A582, A276, A564, ASTM A484, 484M

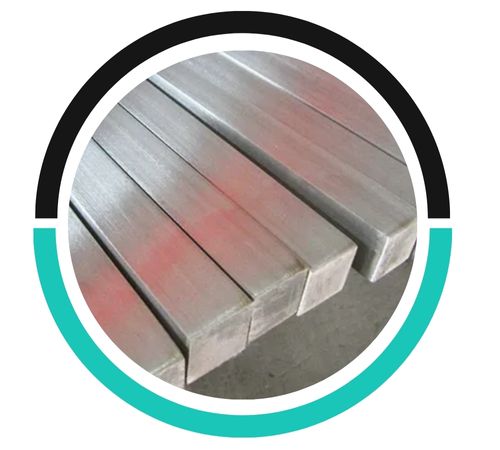

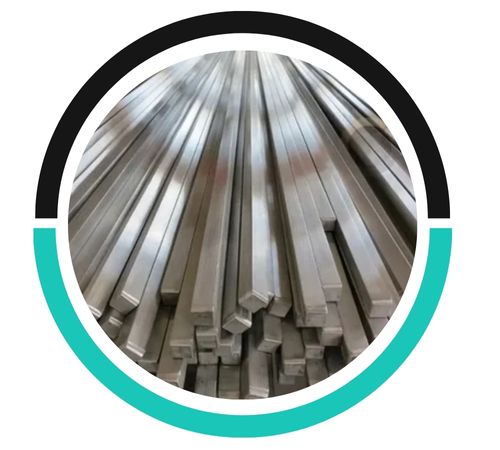

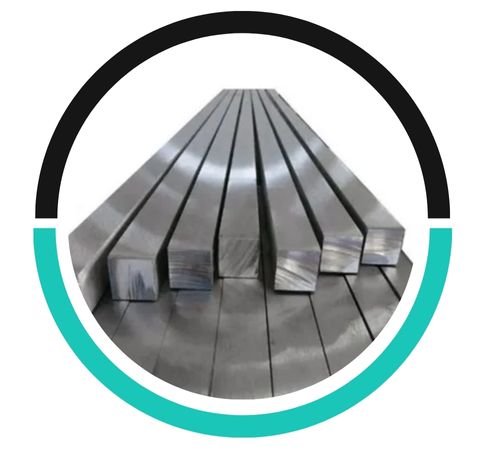

Surface : hrap, hot rolled pickled or sand blasting finished, cold drawn, polished, hairline
Size : Tolerance: H8, H9, H10, H11, H12, H13K9, K10, K11, K12
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 347 | 0.08 max. | 17.0 – 19.0 | 2.00 max. | 9.0-13.0 | 0.045 max. | 0.03 max. | 0.75 max. |
| Element | Density | Melting Range,℃ | Tensile Strength | Yield Strength | Elongation | Hardness (Brinell) |
| SS 347 | 7.96 | 1450 ℃ | 515 | 205 | 40 | 201 |
| STANDARD | WERKSTOFF NR. | UNS |
| SS 347 | 1.4961 | S34700 |
| SQUARES | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.62 | 2.05 |
| 18 | 0.79 | 2.59 |
| 20 | 0.76 | 2.49 |
| 22 | 1.18 | 3.87 |
| 25 | 1.52 | 5.00 |
| 28 | 1.91 | 6.27 |
| 30 | 2.19 | 7.20 |
| 32 | 2.50 | 8.19 |
| 36 | 3.16 | 10.37 |
| 38 | 3.52 | 11.55 |
| 40 | 3.90 | 12.80 |
| 45 | 4.94 | 16.20 |
| 50 | 6.10 | 20.00 |
| 56 | 7.65 | 25.08 |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Stainless Steel 347 Square Bars and Rods find extensive use in heat exchanger tubes, furnace parts, boiler shells, and superheater components, thanks to their remarkable resistance to high-temperature oxidation and thermal fatigue strength. In the chemical processing industry, they are essential for reactor vessels, welded tubing, and piping systems that operate in corrosive or high-pressure settings. Their stabilized structure makes them perfect for aerospace, pharmaceutical, and food-grade applications that involve continuous heating and cooling cycles. Dhruv Metals proudly offers SS 347 square bars tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
