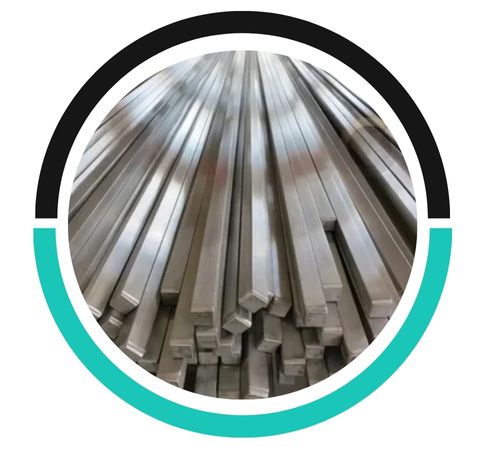

Dhruv Metals, based in Hyderabad, India, has built a solid reputation as a manufacturer and supplier of top-notch Stainless Steel 410 Square Bars and Rods. These products are designed for strength, durability, and a decent level of corrosion resistance. Stainless Steel 410 is a martensitic stainless steel known for its impressive hardenability and mechanical properties, especially after heat treatment. With a focus on wear resistance and toughness, the SS 410 square bars and rods from Dhruv Metals are crafted with precision and adhere to strict quality standards, making them perfect for a variety of industrial and structural applications both locally and internationally.
The composition of Stainless Steel 410 Square Bars and Rods primarily includes chromium (11.5–13.5%) and carbon (up to 0.15%), along with other elements like manganese (≤1.0%), silicon (≤1.0%), phosphorus (≤0.040%), and sulfur (≤0.030%). These bars boast a tensile strength ranging from 620 to 750 MPa, a yield strength of about 275 MPa, an elongation of roughly 22%, and a hardness of up to 35 HRC after heat treatment. SS 410 strikes a balance between good mechanical strength and moderate corrosion resistance, along with excellent machinability when properly heat treated.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A582, A276, A564, ASTM A484, 484M
Surface : hrap, hot rolled pickled or sand blasting finished, cold drawn, polished, hairline
Size : Tolerance: H8, H9, H10, H11, H12, H13K9, K10, K11, K12
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 410 | 0.15 | 11.5-13.5 | 1.00 | 0.75 | 0.040 | 0.030 | 1.00 |
| Tempering Temperature (°C) | Tensile Strength (MPa) | Yield Strength 0.2% Proof (MPa) | Elongation (% in 50 mm) | Hardness Brinell (HB) | Impact Charpy V (J) |
|---|---|---|---|---|---|
| Annealed * | 480 min | 275 min | 16 min | – | – |
| 204 | 1475 | 1005 | 11 | 400 | 30 |
| 316 | 1470 | 961 | 18 | 400 | 36 |
| 427 | 1340 | 920 | 18.5 | 405 | # |
| 538 | 985 | 730 | 16 | 321 | # |
| 593 | 870 | 675 | 20 | 255 | 39 |
| 650 | 300 | 270 | 29.5 | 225 | 80 |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 410 | 1.4006 | S41000 | SUS 410 | 410S21 | – | – | 56A |
| SQUARES | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.62 | 2.05 |
| 18 | 0.79 | 2.59 |
| 20 | 0.76 | 2.49 |
| 22 | 1.18 | 3.87 |
| 25 | 1.52 | 5.00 |
| 28 | 1.91 | 6.27 |
| 30 | 2.19 | 7.20 |
| 32 | 2.50 | 8.19 |
| 36 | 3.16 | 10.37 |
| 38 | 3.52 | 11.55 |
| 40 | 3.90 | 12.80 |
| 45 | 4.94 | 16.20 |
| 50 | 6.10 | 20.00 |
| 56 | 7.65 | 25.08 |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Yes, Stainless Steel 410 square bars can be welded, but preheating and post-weld heat treatment are often recommended to avoid cracking. Proper welding techniques ensure strong, durable joints.
To ensure the quality of Stainless Steel 410 square bars, source them from reputable suppliers and conduct material testing, such as tensile strength and hardness tests. Additionally, check for proper surface finish and dimensional accuracy.
Yes, we provide 410 Stainless Steel Square Bars and Rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@dhruvmetals.co.in
Stainless Steel 410 Square Bars and Rods find their way into various applications that demand high strength and moderate corrosion resistance. You’ll often see them used in pump shafts, valve components, fasteners, hand tools, kitchen utensils, and machine parts. They’re also well-suited for industries like automotive, construction, and petrochemicals, where components face wear, abrasion, or light corrosion. Thanks to their ability to be hardened and tempered, SS 410 square bars are perfect for parts that need to withstand durability, toughness, and maintain dimensional stability under mechanical stress and moderate environmental conditions.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
