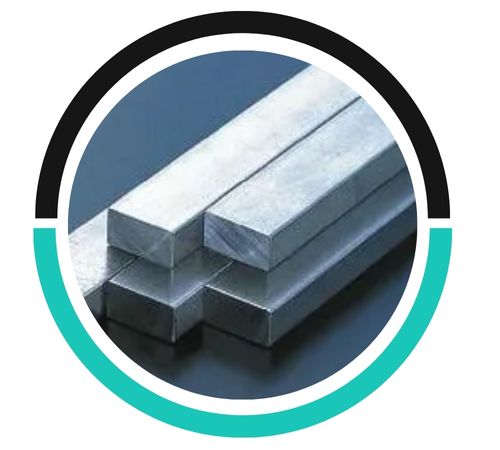

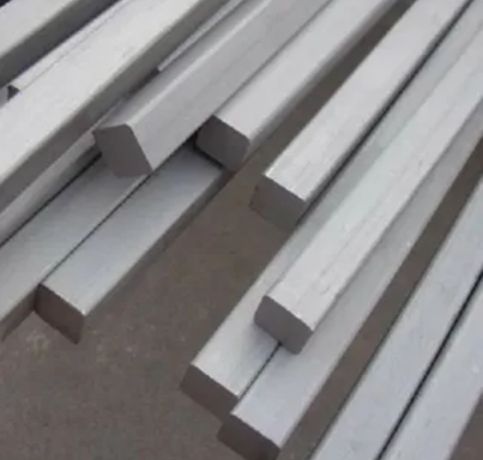

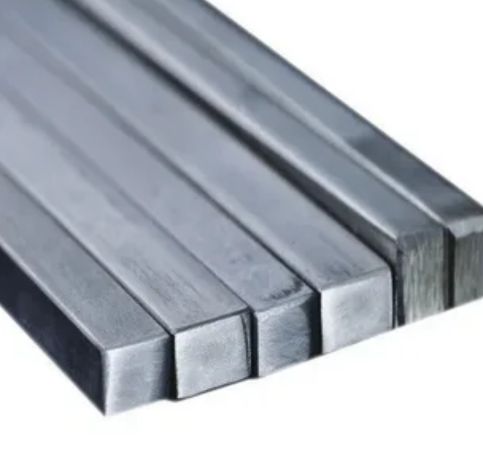

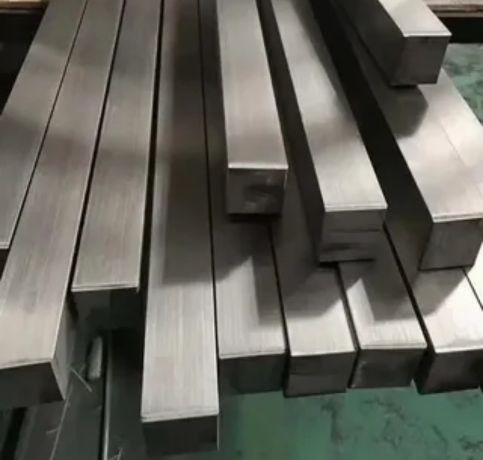

Located in Hyderabad, India, Dhruv Metals is a reputable producer and supplier of high-end stainless steel 416 square bars and rods. These bars are perfect for precision engineering applications because of their remarkable machinability and moderate resistance to corrosion. Dhruv Metals is a company that manufactures products under strict quality standards and offers specialised sizes and finishes to satisfy the unique needs of customers in the mechanical, automotive, and general industrial sectors. The company makes sure that its stainless steel 416 square bars and rods function consistently in both domestic and foreign markets by placing a high priority on product dependability, dimensional accuracy, and prompt delivery.
The main component of stainless steel 416 square bars and rods is chromium (12–14%), with sulphur (~0.15%) added to improve machinability. Iron is the base metal, with traces of carbon, silicon, and manganese. This martensitic stainless steel has good machinability and a moderate resistance to corrosion. In terms of mechanics, it offers elongation of roughly 15%, yield strength of roughly 275–450 MPa, and tensile strength between 550 and 700 MPa. It is appropriate for applications needing tight tolerances, surface finish, and high wear resistance because it can be heat treated to increase hardness and strength.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A582, A276, A564, ASTM A484, 484M

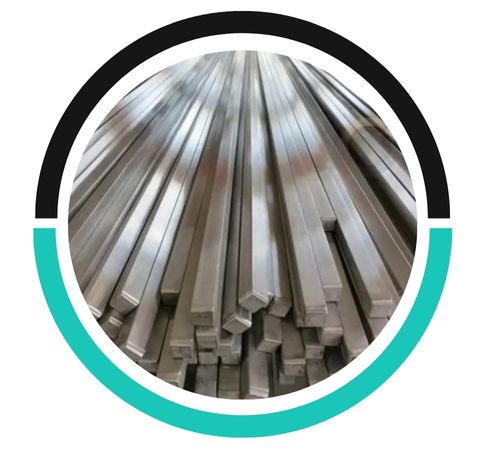

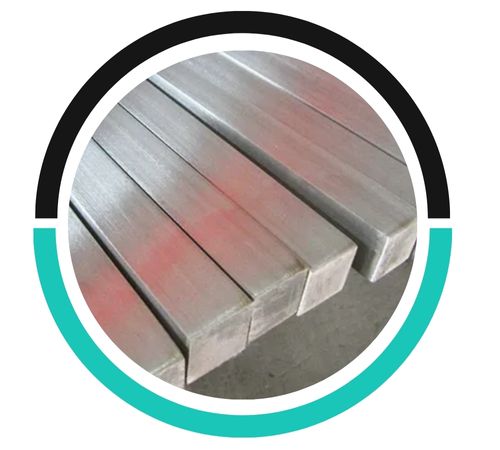

Surface : hrap, hot rolled pickled or sand blasting finished, cold drawn, polished, hairline
Size : Tolerance: H8, H9, H10, H11, H12, H13K9, K10, K11, K12
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 416 | 0.15 | 14.0 – 12.0 | 1.25 | – | 0.06 | 0.15 | 1 |
| Element | Density, lb/in3 | Melting Point | Electrical Resistivity |
| SS 416 | 0.282 lbs/in3 7 .80 g/cm3 | 2700 – 2790 °F (1488 – 1530 °C) | At 70 °F (21 °C): 343.0 |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 416 | 1.4005 | S41600 | SUS 416 | 416S21 | – | – | X12CrS13 |
| SQUARES | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.62 | 2.05 |
| 18 | 0.79 | 2.59 |
| 20 | 0.76 | 2.49 |
| 22 | 1.18 | 3.87 |
| 25 | 1.52 | 5.00 |
| 28 | 1.91 | 6.27 |
| 30 | 2.19 | 7.20 |
| 32 | 2.50 | 8.19 |
| 36 | 3.16 | 10.37 |
| 38 | 3.52 | 11.55 |
| 40 | 3.90 | 12.80 |
| 45 | 4.94 | 16.20 |
| 50 | 6.10 | 20.00 |
| 56 | 7.65 | 25.08 |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Industries requiring moderate corrosion resistance and precise machining frequently use stainless steel 416 square bars and rods. They are perfect for producing gears, shafts and gearbox parts in the automotive industry. They are utilised for threaded parts, valves, pump shafts, and fasteners in industrial machinery. They are also used in the production of precision instruments and fittings because of their exceptional machinability. Furthermore, applications where ease of fabrication is crucial, such as screws, nuts, and bolts, use 416 square bars. They are a flexible option for a variety of industries due to their strength, surface finish, and affordability.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
