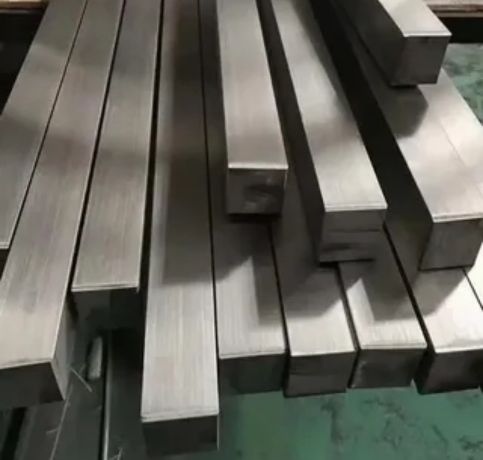

Dhruv Metals, located in Hyderabad, India, has built a solid reputation as a manufacturer and supplier of top-notch Stainless Steel 430 Square Bars and Rods. We take pride in crafting precision-engineered stainless steel products that adhere to global standards for durability, corrosion resistance, and overall performance. Stainless Steel 430 is a ferritic grade characterized by its straight chromium content, which gives it remarkable resistance to oxidation and stress corrosion cracking. With years of experience under our belt and a strong focus on customer satisfaction, Dhruv Metals is dedicated to providing reliable SS 430 square bars and rods to industries throughout India and beyond.
Our Stainless Steel 430 Square Bars and Rods primarily consist of chromium (16.0–18.0%) with minimal nickel content, making them a cost-effective alternative to austenitic grades. The carbon content can go up to 0.12%, along with trace amounts of manganese (≤1.0%), silicon (≤1.0%), phosphorus (≤0.040%), and sulfur (≤0.030%). These bars boast impressive mechanical properties, including a tensile strength ranging from 450 to 600 MPa, a yield strength of about 205 MPa, a minimum elongation of 22%, and a Brinell hardness of up to 183 HB. Their unique blend of corrosion resistance, moderate strength, and formability makes them ideal for a variety of structural and decorative applications.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A582, A276, A564, ASTM A484, 484M
Surface : hrap, hot rolled pickled or sand blasting finished, cold drawn, polished, hairline
Size : Tolerance: H8, H9, H10, H11, H12, H13K9, K10, K11, K12
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 430 | 0.12 | 18.0 | 1.25 | – | 0.06 | 0.15 | 1.00 |
| Element | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness (Brinell (HB) max) |
| SS 430 | 552 | 379 | 25 | 262 |
| STANDARD | WERKSTOFF NR. | UNS | JIS |
| SS 430 | 1.4104 | S43020 | SUS 430 |
| SQUARES | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.62 | 2.05 |
| 18 | 0.79 | 2.59 |
| 20 | 0.76 | 2.49 |
| 22 | 1.18 | 3.87 |
| 25 | 1.52 | 5.00 |
| 28 | 1.91 | 6.27 |
| 30 | 2.19 | 7.20 |
| 32 | 2.50 | 8.19 |
| 36 | 3.16 | 10.37 |
| 38 | 3.52 | 11.55 |
| 40 | 3.90 | 12.80 |
| 45 | 4.94 | 16.20 |
| 50 | 6.10 | 20.00 |
| 56 | 7.65 | 25.08 |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Stainless Steel 430 Square Bars are not ideal for underground applications due to their susceptibility to corrosion in aggressive environments. For such uses, higher corrosion-resistant alloys like 316 or 304 stainless steel are recommended.
Yes, we provide 430 stainless steel square bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@dhruvmetals.co.in
Yes, Stainless Steel 430 Square Bars are magnetic. This is because they are made of ferritic stainless steel, which contains a high proportion of iron.
Stainless Steel 430 Square Bars and Rods are perfect for situations where good corrosion resistance and moderate mechanical strength are adequate. Common uses include automotive trim, household appliances, kitchen equipment, and architectural components. These bars are also well-suited for food processing, chemical handling equipment, and other industrial applications that require easy fabrication and affordability. SS 430 shines in interior environments and mildly corrosive settings. Its magnetic properties and resistance to oxidation make it a go-to choice for applications like ducting, panels, brackets, and supports, where extreme strength isn’t a primary concern.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
