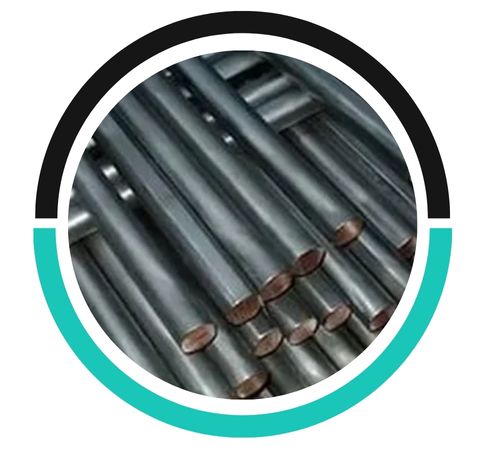

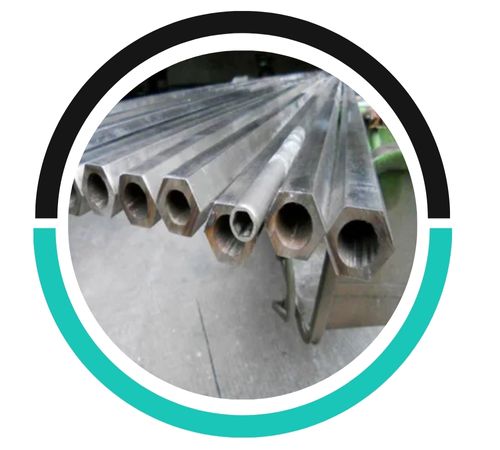

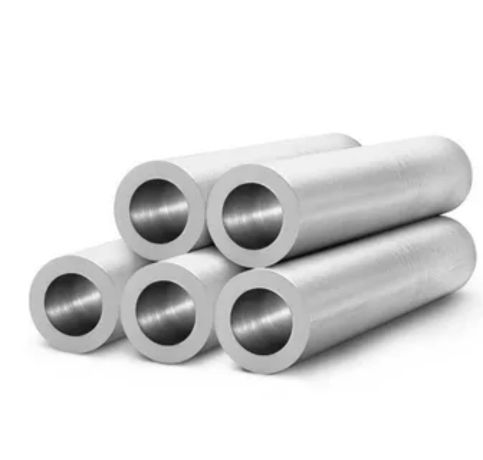

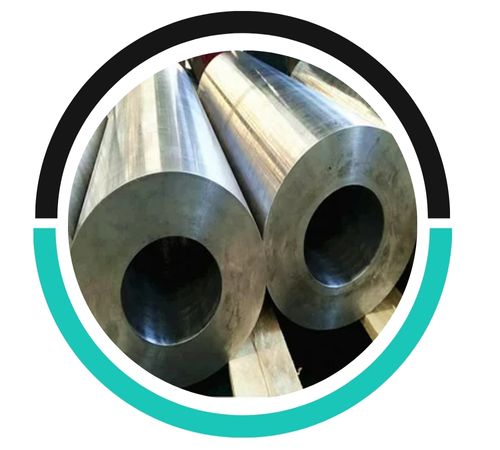

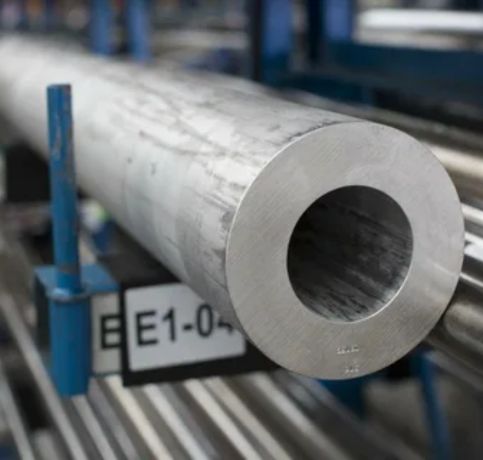

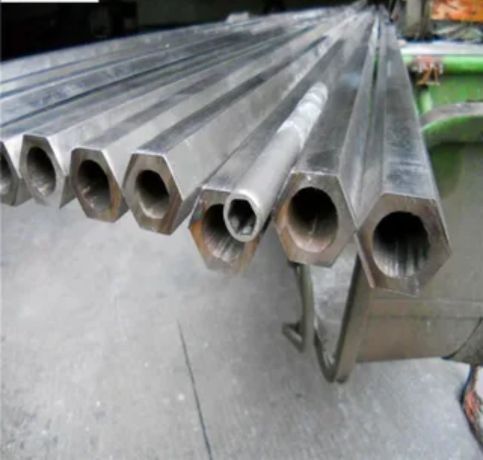

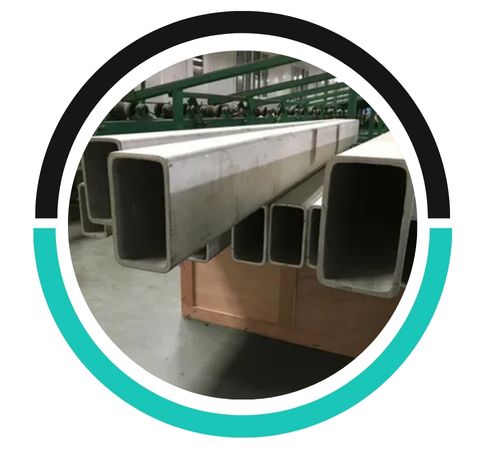

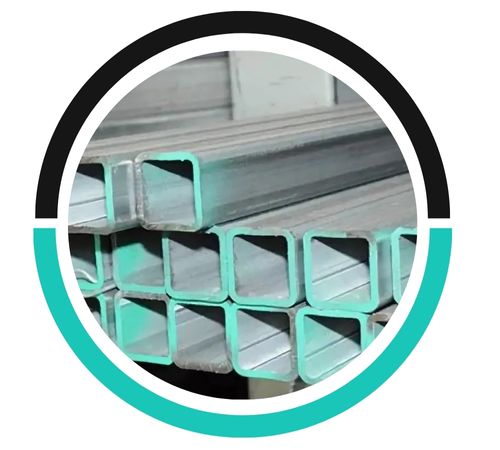

Dhruv Metals stands out as a reliable manufacturer and supplier of top-notch Stainless Steel 904L Hollow Bars in Hyderabad, India. We cater to industries that require outstanding corrosion resistance and exceptional mechanical strength. Our Stainless Steel 904L Hollow Bars are meticulously crafted to meet international standards, guaranteeing dependable performance even in the most corrosive environments. Renowned for their excellent weldability and formability, these hollow bars find their place in critical applications across the chemical, petrochemical, pharmaceutical, and marine sectors. At Dhruv Metals, we are committed to providing high-quality products along with prompt service and complete customer satisfaction to meet a variety of industrial needs.
Stainless Steel 904L Hollow Bars are austenitic stainless steel that contains 19–23% chromium, 23–28% nickel, 4–5% molybdenum, along with small amounts of copper (1–2%) and low carbon content. This unique composition offers remarkable resistance to strong reducing acids and chloride stress corrosion cracking. On the mechanical side, 904L boasts a tensile strength of approximately 490–710 MPa and a yield strength around 220 MPa, with a good elongation of about 35%. This perfect blend of high corrosion resistance and strength makes it an excellent choice for demanding applications.
| Standard | ASTM B649, ASME SB649 |
| Round Bar Size | 3mm~ 800mm |
| Square Bar Size | 4mm* 4mm ~100mm* 100mm |
| Flat Bar Size | 2mm ~ 100mm |
| Hex Bar Size | 2mm ~ 100mm |
| Angle Size | 3mm* 20mm* 20mm~ 12mm* 100mm* 100mm |
| Thickness | 50 mm to 6000 mm Long |
| Length | 1 To 6 Meters, Custom Cut Length |
| Form | Round, Square, Hex(A/F), Rectangle, Billet, Ingot, Forging Etc |
| Grade | Ni | Mo | Cr | Cu | C | Mn | Si | P | S |
| 904L | 23 – 28 | 4 – 5 | 19 – 23 | 1 – 2 | 0.02 max | 2.0 max | 1.0 max | 0.045 max | 0.035 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.05 g/cm3 | 1350 °C (2460 °F) | Psi – 71000 , MPa – 490 | Psi – 32000 , MPa – 220 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | AFNOR | JIS | BS | KS | EN |
| 904L | 1.4539 | N08904 | Z2NCUD31-20AZ | SUS 890L | 904S13 | STS 317J5L | X1NiCrMoCu25-20-5 |
SS 904L stainless steel consists of approximately 24-26% chromium, 19-23% nickel, 4-5% molybdenum, 1-2% copper, and small amounts of manganese, silicon, and carbon. The copper enhances corrosion resistance, particularly in acidic environments, while maintaining high strength.
The typical diameter range for SS 904L hollow bars varies from 10 mm to 300 mm, although custom sizes can be manufactured. These bars are available in various wall thicknesses, depending on specific application requirements and industry standards.
You’ll find Stainless Steel 904L Hollow Bars widely utilized in industries where superior corrosion resistance in harsh environments is essential. Typical applications include chemical processing equipment, heat exchangers, gas scrubbers, pharmaceutical machinery, and components for oil and gas refineries. They also play a crucial role in marine engineering, pulp and paper industries, and seawater handling systems due to their resistance to pitting and crevice corrosion. Plus, their impressive formability and weldability make them ideal for custom-fabricated parts and structural supports that are exposed to aggressive acids and chlorides, ensuring they last long and perform reliably.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Dhruv Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Hyderabad , India
