Dhruv Metals, a top-notch manufacturer and supplier based in Hyderabad, India, specializes in high-quality Tantalum Bars and Rods that are perfect for even the toughest industrial applications. Crafted in line with ASTM B365 standards, these bars are celebrated for their outstanding corrosion resistance, impressive melting point, and excellent mechanical stability. Dhruv Metals is dedicated to ensuring that every product meets rigorous quality standards, catering to sectors like electronics, aerospace, medical, and chemical processing. With cutting-edge manufacturing facilities and a strong focus on precision, the company provides reliable and durable tantalum solutions tailored to both standard and custom industrial needs across global markets.
The Tantalum Bars and Rods from Dhruv Metals are made up of ≥99.95% pure tantalum, with carefully controlled trace elements like oxygen, nitrogen, hydrogen, and carbon. These bars boast remarkable properties, including a tensile strength of ≥ 207 MPa, yield strength of ≥ 138 MPa, and elongation of ≥ 30%. They have a density of 16.6 g/cm³ and a melting point of 3017°C, which makes them highly resistant to corrosion and thermal degradation. Their consistent mechanical performance under extreme conditions makes them perfect for high-purity and high-temperature applications.
| Specification | ASTM B365, ASME SB365 |

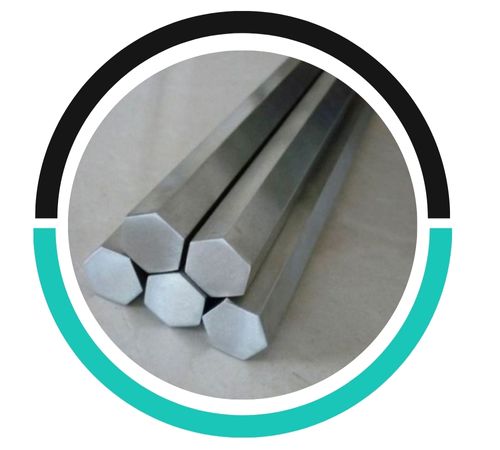

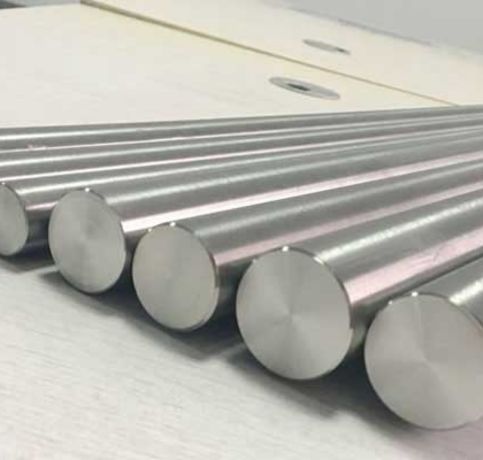

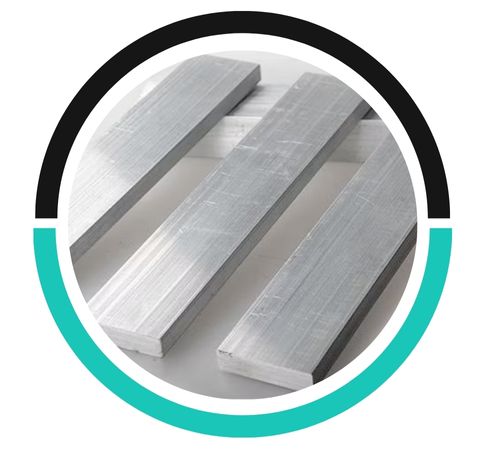

| Tantalum Bar Form | Tantalum Round, Hex, Flat, Half Round, Oval, Rectangular in Black & Bright Finish |

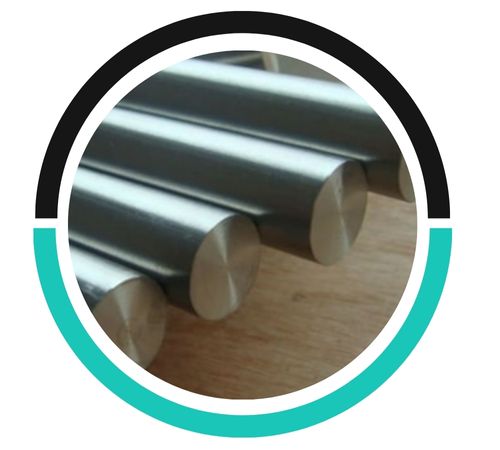

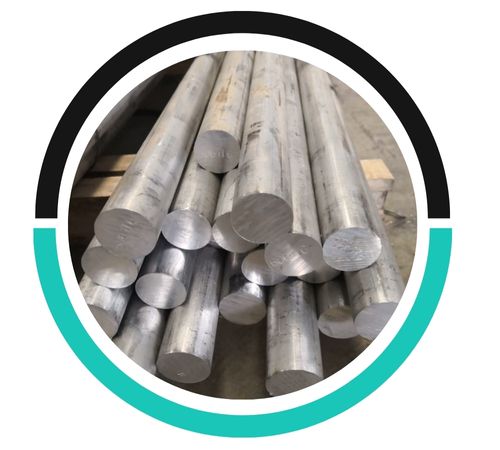

| Tantalum Round Bar Diameter | 0.125″ (3.18mm)~2.5″ (63.5mm) |
| Length | 2-12m |
| Purity | ≥99.95% or 99.99% |
| Tantalum Round Bar Length | 1-12m, Random, Fix & Cut Length or as per clients’ requirement |
| Type | Ta | W | Nb |
|---|---|---|---|
| R05200 / R05400 | Unalloyed (Pure) | – | – |
| R05252 | 97.5 % | 2.5 % | – |
| R05255 | 90 % | 10 % | – |
| R05240 | 60 % | – | 40 % |
| Type | Ultimate Tensile Strength min.psi (Mpa) | Yeild Strength min.psi (Mpa) | Elongation, % (min) |
|---|---|---|---|
| R05200 / R05400 | 25,000(172) | 15,000(103) | 25 |
| R05252 | 40,000(276) | 20,000(138) | 20 |
| R05255 | 70,000(482) | 55,000(379) | 20 |
| R05240 | 35,000(241) | 15,000(103) | 25 |
| 3/16” (4.76mm) | 25mm | 2.1/2” (63.5mm) |
| ¼” (6.35mm) | 1” (25.4mm) | 2.3/4” (69.85mm) |
| 5/16” (7.94mm) | 1.1/8” (28.58mm) | 3” (76.2mm) |
| 3/8” (9.53mm) | 30mm | 3.1/4” (82.55mm) |
| 10mm | 1.1/4” (31.75mm) | 3.1/2” (88.9mm) |
| 12mm | 1.3/8” (34.93mm) | 4” (101.6mm) |
| ½” (12.7mm) | 1.1/2” (38.1mm) | 4.1/2” (114.3mm) |
| 15mm | 40mm | 5” (127mm) |
| 5/8” (15.88mm) | 1.3/4” (44.45mm) | 5.1/2” (139.7mm) |
| ¾” (19.05mm) | 2” (50.8mm) | 6” (152.4mm) |
| 20mm | 2.1/8” (53.98mm) | 7” (177.8mm) |
| 7/8” (22.23mm) | 2.1/4” (57.15mm) | 8” (203.2mm) |
| Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr |
|---|---|---|---|---|---|---|---|---|
| 3mm | 0.017 | 0.055 | 20mm | 0.753 | 2.470 | 3″ | 10.900 | 35.762 |
| 1/8″ | 0.019 | 0.062 | 22mm | 0.908 | 2.979 | 3-1/4″ | 12.800 | 41.996 |
| 5/32″ | 0.029 | 0.095 | 7/8″ | 0.926 | 3.038 | 3-1/2″ | 14.850 | 48.772 |
| 4mm | 0.030 | 0.098 | 24mm | 1.080 | 3.543 | 3-3/4″ | 17.001 | 55.780 |
| 3/16″ | 0.043 | 0.141 | 25mm | 1.180 | 3.871 | 4″ | 19.306 | 63.340 |
| 5mm | 0.047 | 0.154 | 1″ | 1.210 | 3.970 | 4-1/4″ | 21.908 | 72.249 |
| 7/32″ | 0.058 | 0.190 | 26mm | 1.271 | 4.170 | 4-1/2″ | 24.4487 | 80.340 |
| 6mm | 0.068 | 0.223 | 27mm | 1.368 | 4.490 | 4-3/4″ | 27.366 | 90.249 |
| 1/4″ | 0.076 | 0.249 | 1-1/8″ | 1.534 | 5.033 | 5″ | 30.461 | 99.940 |
| 7mm | 0.091 | 0.298 | 30mm | 1.691 | 5.548 | 5-1/2″ | 36.690 | 121.000 |
| 5/16″ | 0.118 | 0.387 | 1-1/4″ | 1.924 | 6.349 | 6″ | 43.860 | 143.900 |
| 8mm | 0.120 | 0.398 | 32mm | 1.894 | 6.314 | 6-1/2″ | 51.093 | 167.630 |
| 9mm | 0.152 | 0.498 | 1-3/8″ | 2.303 | 7.550 | 7″ | 59.432 | 196.000 |
| 3/8″ | 0.170 | 0.557 | 35mm | 2.390 | 7.553 | 7-1/2″ | 68.226 | 225.000 |
| 10mm | 0.189 | 0.620 | 36mm | 2.438 | 7.999 | 8″ | 77.586 | 254.55 |
| 11mm | 0.228 | 0.748 | 38mm | 2.792 | 8.903 | 10″ | 121.048 | 397.140 |
| 7/16″ | 0.232 | 0.761 | 1-1/2″ | 2.715 | 8.951 | |||
| 12mm | 0.271 | 0.889 | 40mm | 3.009 | 9.872 | |||
| 1/2″ | 0.303 | 0.994 | 1-5/8″ | 3.200 | 10.449 | |||
| 13mm | 0.318 | 1.043 | 1-3/4″ | 3.712 | 12.179 | |||
| 14mm | 0.368 | 1.207 | 45mm | 3.807 | 12.555 | |||
| 9/16″ | 0.383 | 1.256 | 1-7/8″ | 4.260 | 13.977 | |||
| 15mm | 0.424 | 1.391 | 48mm | 4.330 | 14.205 | |||
| 5/8″ | 0.473 | 1.551 | 50mm | 4.698 | 15.414 | |||
| 16mm | 0.481 | 1.578 | 2″ | 4.848 | 15.906 | |||
| 17mm | 0.543 | 1.791 | 2-1/8″ | 5.475 | 17.963 | |||
| 11/16″ | 0.573 | 1.880 | 2-1/4″ | 6.135 | 20.128 | |||
| 18mm | 0.610 | 2.001 | 60mm | 6.768 | 22.205 | |||
| 3/4″ | 0.682 | 2.237 | 2-3/8″ | 6.838 | 22.435 | |||
| 2-1/2″ | 7.576 | 24.856 | ||||||
| 2-5/8″ | 8.354 | 27.409 | ||||||
| 2-3/4″ | 9.169 | 30.083 |
Dhruv Metals’ Tantalum Bars and Rods are widely used in chemical processing plants for creating heat exchangers, condensers, and reaction vessels, thanks to their remarkable resistance to strong acids. In the electronics sector, tantalum plays a crucial role in producing high-performance capacitors and semiconductors. Medical uses include surgical implants and equipment due to its excellent biocompatibility. The aerospace and defense industries rely on tantalum for its strength and stability in high-temperature settings. Additionally, it is utilized in nuclear applications and laboratories, showcasing its versatility across various fields.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
