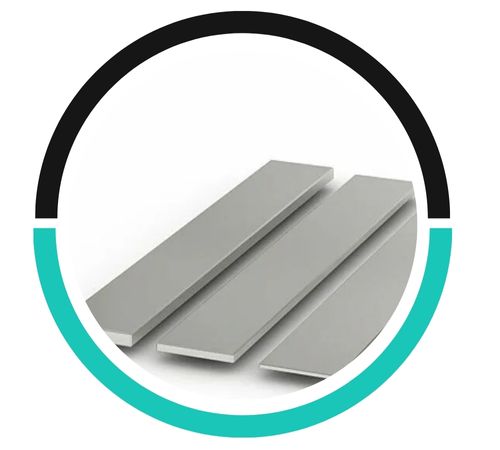

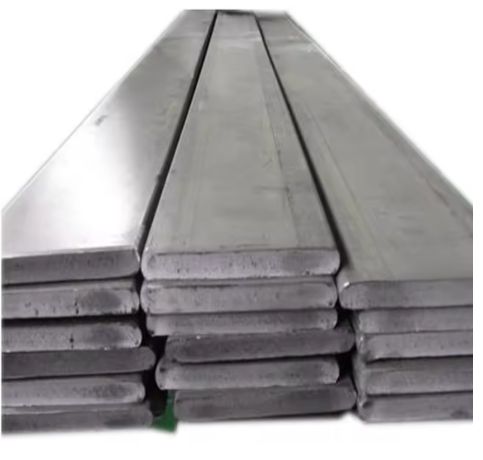

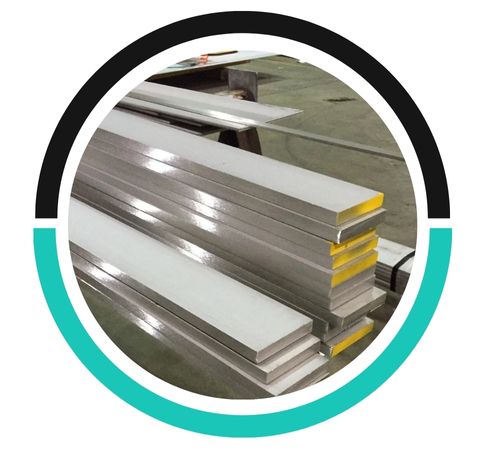

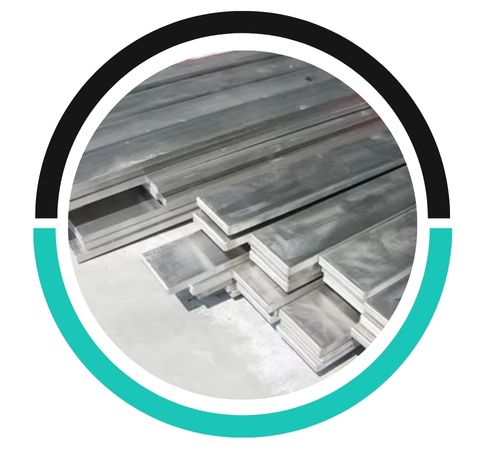

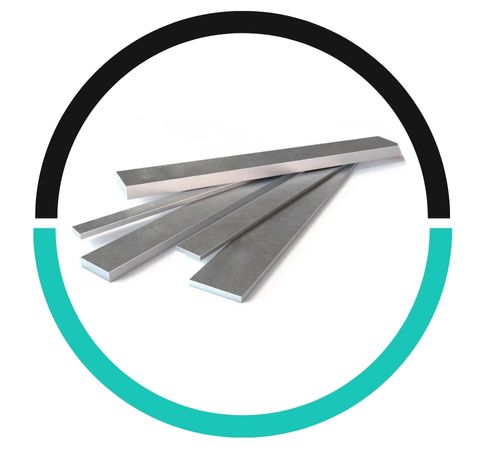

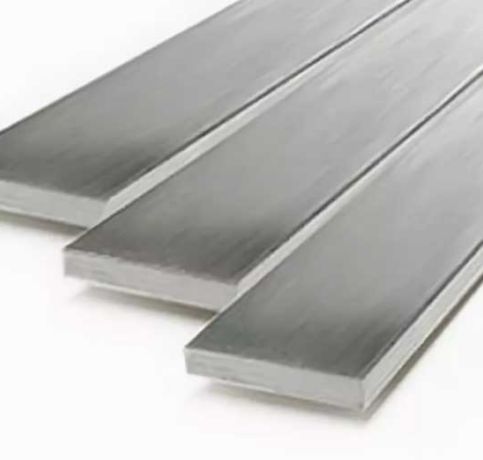

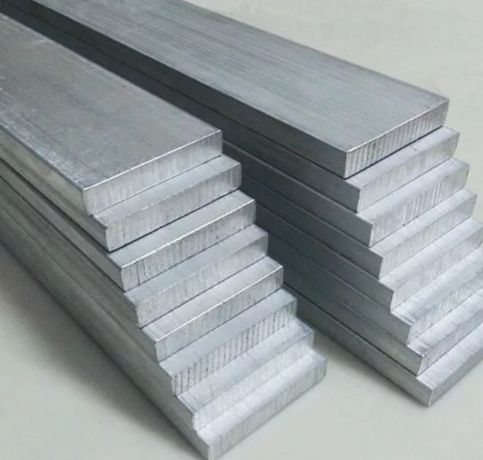

Dhruv Metals, located in Hyderabad, India, stands out as a leading manufacturer and supplier of top-quality Titanium Flat Bars, serving both local and global markets. With a strong commitment to quality, precision engineering, and compliance with international standards, Dhruv Metals provides Titanium Flat Bars that are celebrated for their impressive strength-to-weight ratio, resistance to corrosion, and remarkable durability. These bars are crafted using cutting-edge technology and come in a variety of sizes and specifications to meet a wide range of industrial needs. Trusted by sectors like aerospace, marine, chemical, and medical, Dhruv Metals is dedicated to delivering reliable, high-performance titanium solutions with consistent quality assurance.
Titanium Flat Bars are generally produced in Grade 2 or Grade 5 (Ti-6Al-4V) and are primarily composed of titanium (about 90%), along with smaller amounts of aluminum, vanadium, iron, and oxygen. These bars boast impressive mechanical properties, with tensile strength ranging from 345 to 895 MPa and yield strength between 275 to 828 MPa, depending on the grade. They have a low density of 4.5 g/cm³, exceptional corrosion resistance, and high fatigue strength, making them ideal for demanding environments. Additionally, titanium bars maintain their strength at elevated temperatures and offer excellent biocompatibility for medical applications.
| Standard | ASTM B348, ASME B348, ASTM B863, ASTM F67, ASTM F136 |
| Application | Industrial and Medical |
| Shape | Flat |
| size | Dia 5.0~350 X ≤ 6000 |
| Grade | Gr1, Gr2, Gr3, Gr4, Gr5, Gr7,Gr23,Ti15333 |
| Density | 4.53 g/cm3 |
| Techniques | Forged,Rolled, Extrusion |

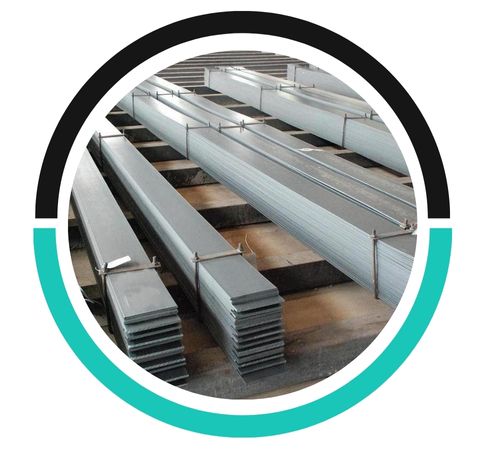

| Surface | Hot Rolled Pickled or Sand Blasting Finished, Cold Drawn, Bright, Polished, Hairline |

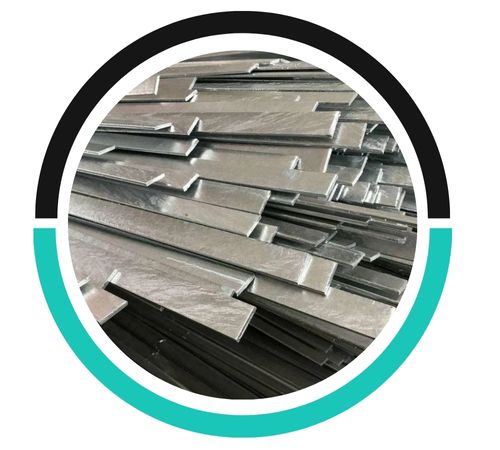

| Technique | TC4 Titanium Alloy Hot Rolled, Cold Rolled, Cold Drawn, Forged |
Hardness, Brinell | 120 | 120 | annealed |
Hardness, Knoop | 132 | 132 | Estimated from Brinell. |
Hardness, Rockwell B | 70 | 70 | annealed |
Hardness, Vickers | 122 | 122 | Estimated from Brinell |
Tensile Strength, Ultimate | 240 MPa | 34800 psi | – |
Tensile Strength, Yield | 170 – 310 MPa | 24700 – 45000 psi | – |
Elongation at Break | 24 % | 24 % | – |
Reduction of Area | 35 % | 35 % | – |
Modulus of Elasticity | 105 GPa | 15200 ksi | In Tension |
Compressive Modulus | 110 GPa | 16000 ksi | – |
Poisson’s Ratio | 0.37 | 0.37 | – |
Charpy Impact | 310 J | 229 ft-lb | V-notch |
Shear Modulus | 45 GPa | 6530 ksi | – |
|
Physical Properties |
Metric |
English |
|
Density |
4.51 g/cc |
0.163 lb/in³ |
| Physical Properties | Metric | English |
|---|---|---|
| Density | 4.51 g/cc | 0.163 lb/in³ |
|
STANDARD |
WERKSTOFF NR. |
UNS |
|
Titanium |
3.7035 / 3.7165 / 3.7235 |
R50400 / R56400 / R52400 |

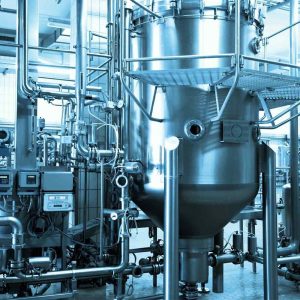

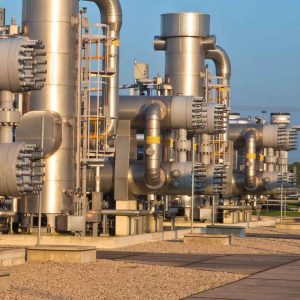

Titanium Flat Bars find extensive use in the aerospace and defense sectors for structural components, thanks to their high strength and lightweight nature. In the marine industry, they are essential for shipbuilding, offshore platforms, and propeller shafts due to their outstanding resistance to seawater corrosion. The chemical processing industry employs these bars in heat exchangers and reactors that handle corrosive materials. In medical and dental fields, titanium’s biocompatibility is leveraged for implants, surgical instruments, and orthopedic devices. Furthermore, these bars are also utilized in various other applications, showcasing their versatility and reliability across multiple industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
