Dhruv Metals, based in Hyderabad, India, stands out as a top manufacturer and supplier of high-quality Titanium Grade 12 Bars and Rods, designed specifically for tough industrial settings. Known for their exceptional corrosion resistance, impressive strength, and great weldability, these bars and rods are perfect for challenging chemical and marine environments. Dhruv Metals follows international standards and utilizes cutting-edge production methods to provide precision-engineered Titanium Grade 12 products tailored to specific dimensions. With a strong commitment to quality control, technical know-how, and prompt delivery, Dhruv Metals has become a trusted provider of high-performance titanium materials across vital global industries.
Titanium Grade 12 (UNS R53400) is a titanium alloy that includes about 0.3% molybdenum and around 0.8% nickel, which greatly boosts its corrosion resistance in both reducing and oxidizing environments, such as hot acids and chlorides. The bulk of the alloy is titanium, making up roughly 98.8%. It boasts a tensile strength ranging from 483 to 550 MPa and a yield strength of about 345 MPa, along with good ductility, weldability, and formability. Its density is 4.54 g/cm³. Grade 12 maintains its mechanical integrity even at high temperatures and shows excellent resistance to crevice corrosion, stress corrosion cracking, and erosion in demanding industrial applications.
| Standards : | ASTM B348, B863 / ASME SB348, SB863 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |
| Round bar size : | Diameter: 3-~800mm |

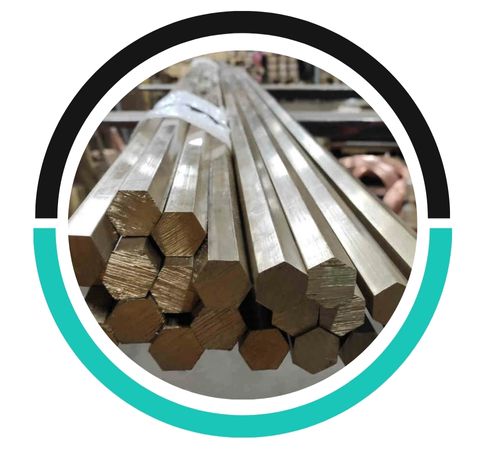

| Hex Bar size : | 2-100mm A/F |
| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |
| Square bar size : | 4 to 100mm |
| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 12 | 3.7105 | R53400 |
| Grade | C | N | O | H | Ti | Fe | Al | Pd |
| Titanium Gr 9 | .08 max | .03 max | .25 max | .015 max | Bal | 0.30 max | – | .12 – .25 |
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade 12 | 90 min | – | 0.25 max | – | – | 0.2 max | 6 min | 4 min |
| Density | Melting Range | Modulus of Elasticity (Tension) | Specific Heat | Mean Coefficient of Expansion | Thermal conductivity | Electrical Resistivity |
| kg/m3 | °C | GPa | J/kg. °C | x10 -6 / °C | W / m. °C | micro-ohm.m |
| 4,507 | 1668± 10 | 103 | 519 | 8.41 | 11.4 | 0.420 |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Grade 12 Titanium Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
Titanium Grade 12 Bars and Rods are particularly well-suited for chemical processing facilities, especially in areas where equipment faces acidic and chloride-heavy conditions. They find extensive use in heat exchangers, pressure vessels, and evaporators, providing reliable performance in corrosive environments. In the marine sector, they are utilized in seawater-handling systems, offshore structures, and desalination plants. Their outstanding resistance to corrosion and high temperatures also makes them ideal for power generation applications, including geothermal and nuclear energy.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Dhruv Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Hyderabad , India
