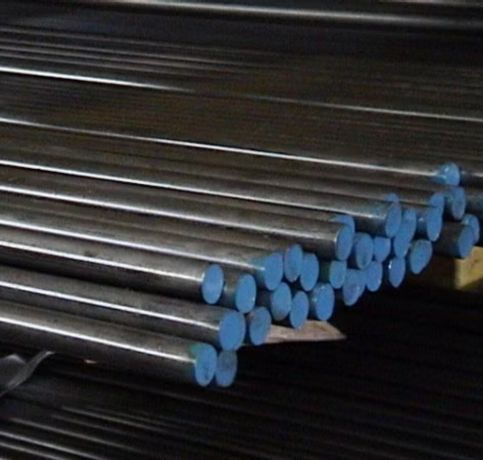

Dhruv Metals, a prominent manufacturer and supplier located in Hyderabad, India, is known for its top-notch Tool and Die Steel P20 Bars. With a reputation built on reliability and precision, Dhruv Metals serves a wide array of industrial needs, providing products that adhere to international standards. Backed by years of experience and technical know-how, the company offers P20 steel bars that are celebrated for their strength, durability, and consistent performance. Catering to clients in the automotive, plastic mold, and engineering sectors, Dhruv Metals prioritizes timely delivery and customer satisfaction, establishing itself as a trusted name in the metal supply industry both in India and internationally.
Tool and Die Steel P20 Bars typically contain: Carbon (0.28–0.40%), Chromium (1.40–2.00%), Manganese (0.60–1.00%), and Molybdenum (0.30–0.60%). These alloying elements significantly boost strength, toughness, and wear resistance. P20 steel is known for its excellent machinability and can be hardened and tempered. Its mechanical properties feature a tensile strength ranging from 850 to 1100 MPa, along with good dimensional stability and uniform hardness. The steel is pre-hardened to about 28–32 HRC, which removes the need for additional heat treatment, making it perfect for precision tooling applications.
| C % | Mn % | Si % | Cr % | Mo % |
| 0.40% | 1.00% | 0.40% | 1.20% | 0.35% |
| Properties | Metric |
| Hardness, Brinell (Typical) | 300 |
| Hardness, Rockwell C (Typical) | 30 |
| Tensile Strength, Ultimate | 965-1030 MPa |
| Tensile Strength, Yield | 827-862 MPa |
| Elongation At Break (In 50 Mm (2″)) | 20.00% |
| Compressive Strength | 862 MPa |
| Charpy Impact (V-Notch) | 27.1-33.9 J |
| Poisson’s Ratio | 0.27-0.30 |
| Elastic Modulus | 190-210 GPa |
| Country | USA | German | GB/T | JIS |
| Standard | ASTM A681 | DIN EN ISO 4957 | GB/T 1299 | |
| Grades | P20 | 1.2311 | 3Cr2Mo | PDS-3 |
| Properties | Conditions | ||
| T (°C) | Treatment | ||
| Thermal Expansion | 12.8 X 10-6/ºC | 20-425 | – |
When choosing P20 tool and die steel bars, consider machinability, toughness, hardness, heat treatment capabilities, corrosion resistance, application requirements, cost-effectiveness, and availability of suitable sizes for your specific needs.
Tool and die steel P20 bars are typically sized by their diameter and length, with common diameters ranging from 1 inch to 10 inches, and lengths ranging from 10 to 20 feet.
Tool and Die Steel P20 Bars are extensively utilized in the production of plastic injection molds, die-casting dies, and mold bases, thanks to their toughness and polishability. Their outstanding machinability and dimensional stability make them ideal for precision components in industries like automotive, consumer electronics, and packaging. P20 bars are also employed in prototype tools, blow molds, and extrusion dies. Their capacity to be nitrided or coated enhances tool life and improves surface properties. With a well-balanced mix of hardness and ductility, P20 steel is the go-to choice for high-performance tooling applications that demand both strength and a fine surface finish.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
